A25T-DTFNR 16
A25T-DTFNR 16

A25T-DTFNR 16

UGC DOR7028482
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Vendu en lots de : 1

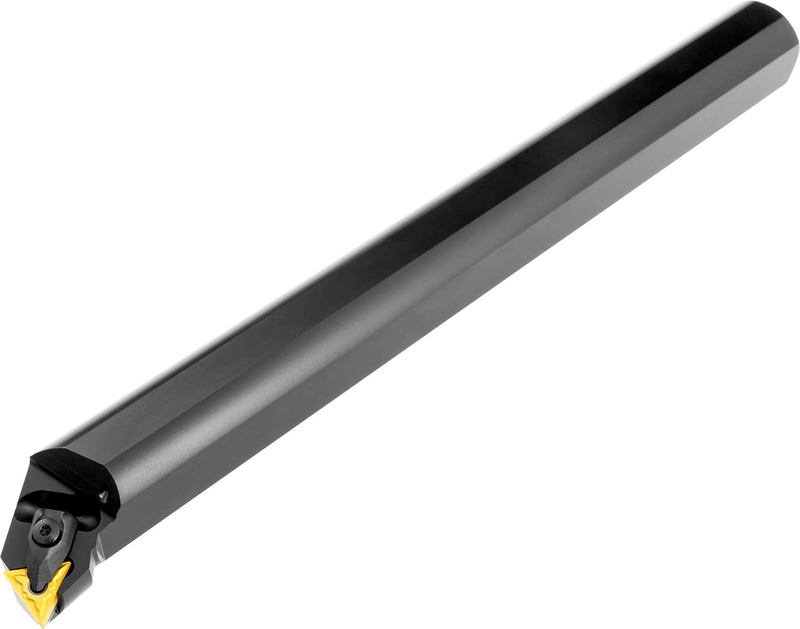

Barre d'alésage à double serrage pour plaquette négative triangulaire avec un cercle inscrit de 9,525 mm de diamètre et une épaisseur de 4,76 mm (désignation ISO TN.. 1604..), à coupe frontale à 90° à droite avec queue déportée, en acier avec trou d'arrosage, diamètre 25 mm x 300 mm de long pour le chanfreinage interne, l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-DTFNR 16
Product Number7028482
Product FamilyDTFN(RL) INT

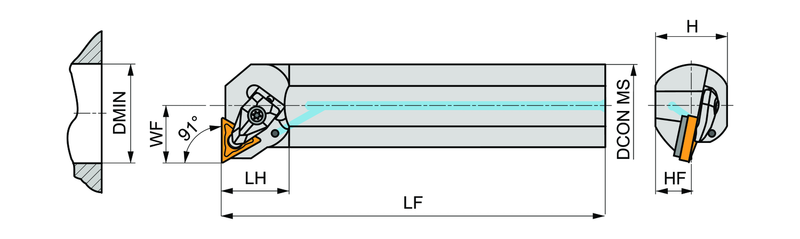

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028482
EAN3603603105874
File Type Download
A25T-DTFNR 16 — Line Drawing PDF Download
