A25T-DWLNR 08
A25T-DWLNR 08
A25T-DWLNR 08

A25T-DWLNR 08

UGC DOR7028486
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Vendu en lots de : 1

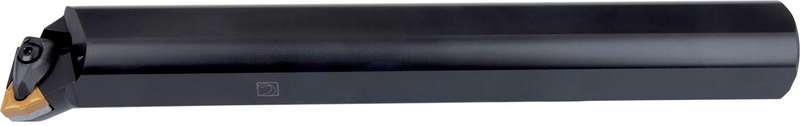

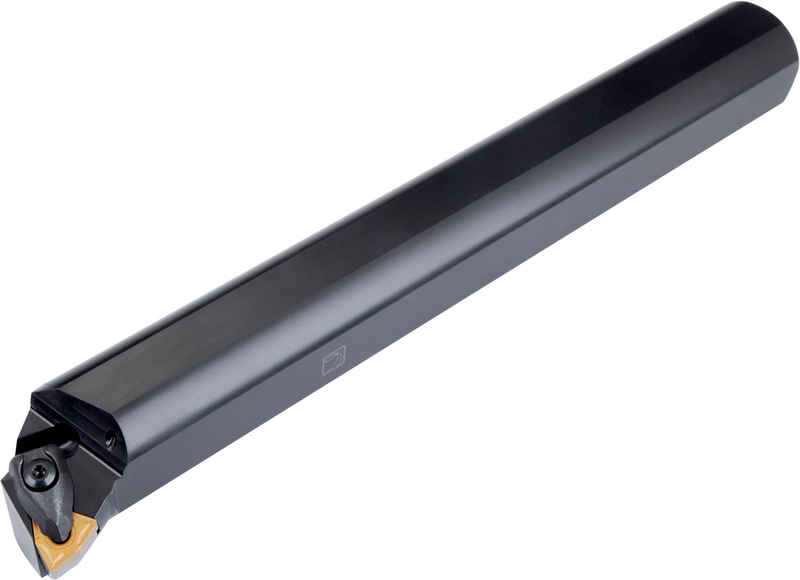

Barre d'alésage à double serrage pour plaquette négative trigon 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO WN... 0804...), coupe latérale et frontale droite à 95° avec corps déporté, en acier avec trou d'arrosage, diamètre 25 mm x 300 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-DWLNR 08
Product Number7028486
Product FamilyDWLN(RL) INT

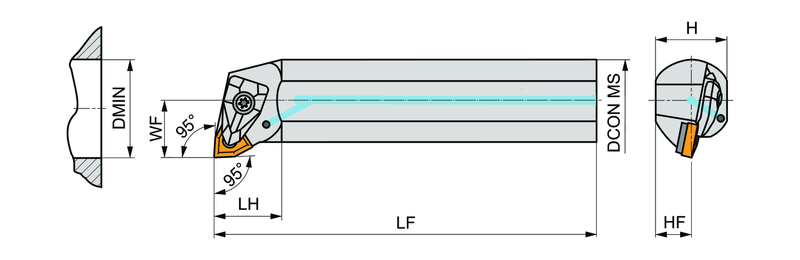

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.299"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028486
EAN3603603105911
File Type Download
A25T-DWLNR 08 — Line Drawing PDF Download
