A32T-DDUNL 11
A32T-DDUNL 11

A32T-DDUNL 11

UGC DOR7028487
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

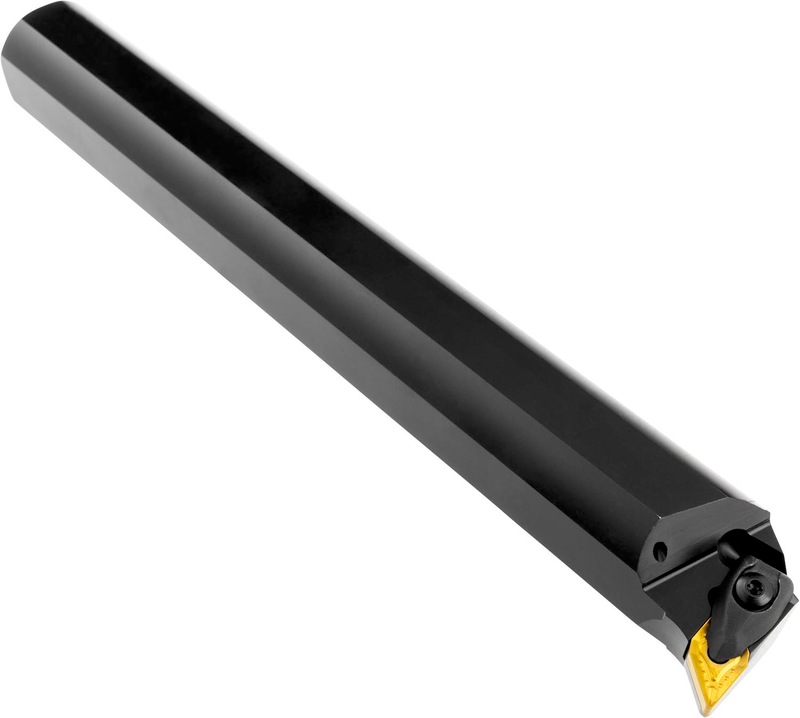

Barre d'alésage à double serrage pour plaquette négative en losange 55° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO DN.. 1104..), coupe à gauche 93° avec queue déportée, acier avec trou d'arrosage, 32mm de diamètre x 300mm de long pour chanfreinage interne, alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-DDUNL 11
Product Number7028487
Product FamilyDDUN(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7028487
EAN3603603105928
File Type Download

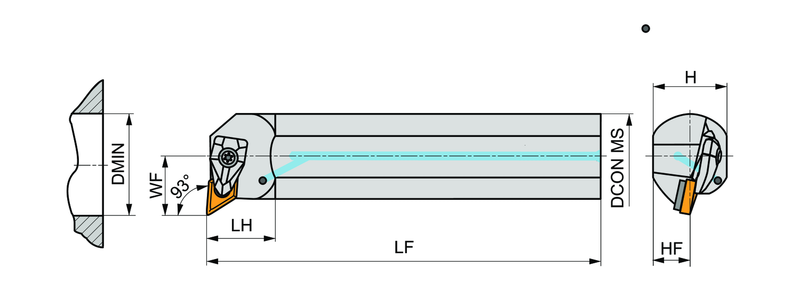

A32T-DDUNL 11 — Line Drawing PDF Download
