A32T-DDUNR 11
A32T-DDUNR 11

A32T-DDUNR 11

UGC DOR7028488
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

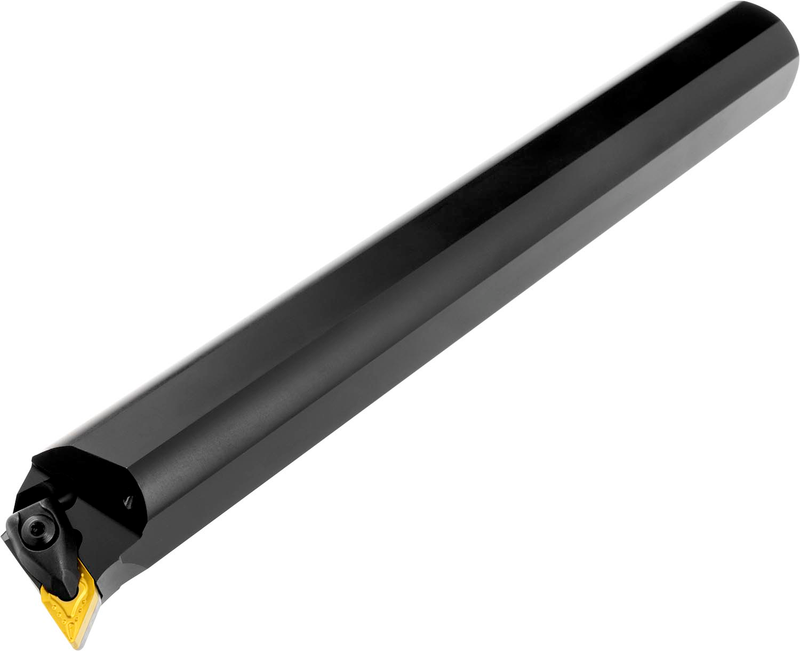

Alésoir à double serrage pour loger un insert négatif en losange de 55° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm (désignation ISO DN.. 1104.. ), coupe à droite à 93° avec tige déportée, acier avec trou d'arrosage, diamètre de 32 mm x 300 mm de long pour le chanfreinage interne, l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-DDUNR 11
Product Number7028488
Product FamilyDDUN(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028488
EAN3603603105935
File Type Download

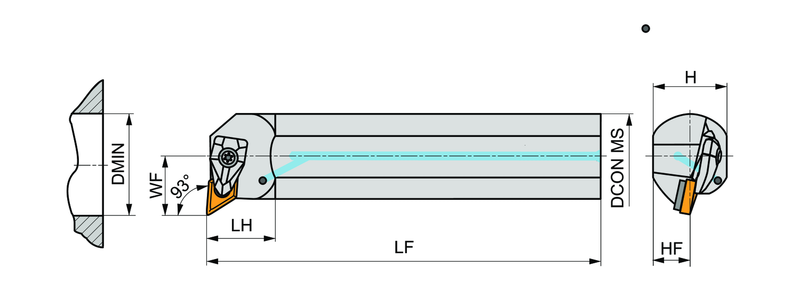

A32T-DDUNR 11 — Line Drawing PDF Download
