A32T-DWLNR 08
A32T-DWLNR 08
A32T-DWLNR 08

A32T-DWLNR 08

UGC DOR7028490
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

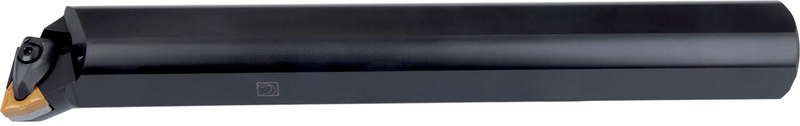

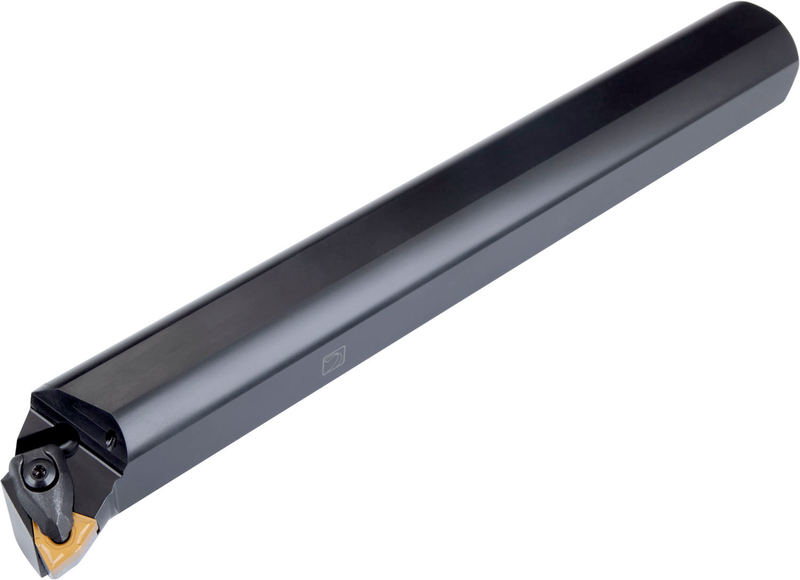

Alésoir à double serrage pour plaquette négative trigon de 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO WN.. 0804.. ), coupe latérale et frontale de 95° à droite avec queue déportée, en acier avec trou d'arrosage, 32 mm de diamètre x 300 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-DWLNR 08
Product Number7028490
Product FamilyDTCH(DRL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028490
EAN3603603105959
File Type Download

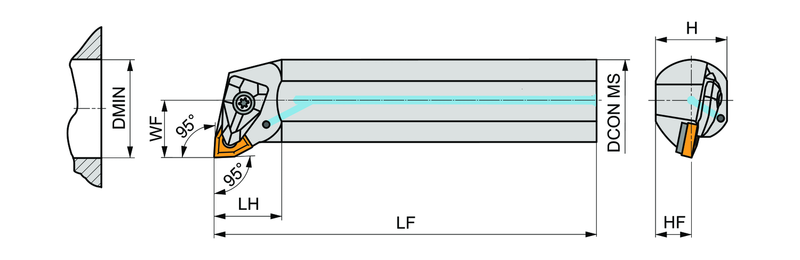

A32T-DWLNR 08 — Line Drawing PDF Download
