A32T-DTFNR 16
A32T-DTFNR 16

A32T-DTFNR 16

UGC DOR7028494
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

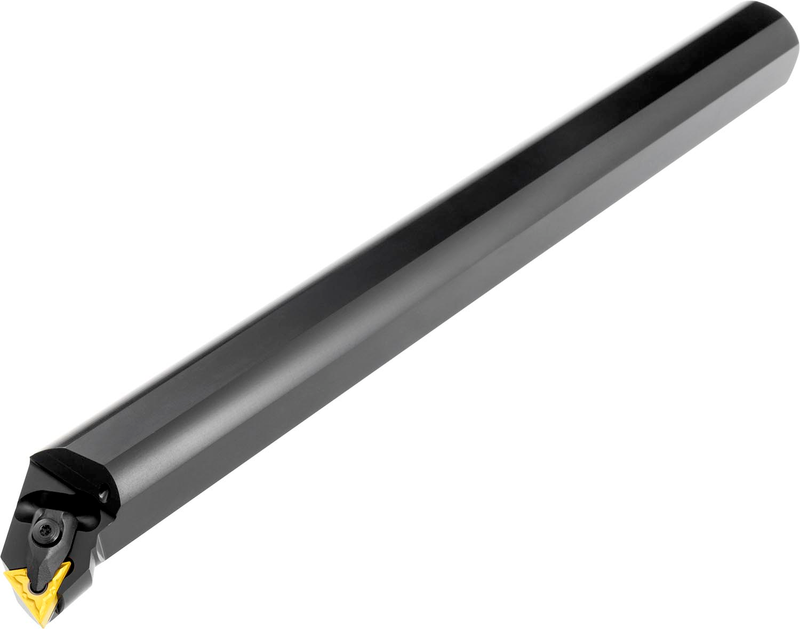

Barre d'alésage à double serrage pour plaquette triangulaire négative avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm (désignation ISO TN.. 1604..), coupe à droite à 90° avec queue déportée, en acier avec trou d'arrosage, diamètre 32 mm x 300 mm de long pour le chanfreinage intérieur, l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-DTFNR 16
Product Number7028494
Product FamilyDTFN(RL) INT

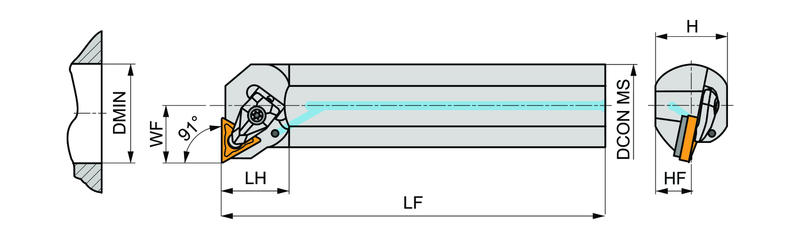

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028494
EAN3603603105997
File Type Download
A32T-DTFNR 16 — Line Drawing PDF Download
