A40T-DDUNR 15
A40T-DDUNR 15

A40T-DDUNR 15

UGC DOR7028496
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

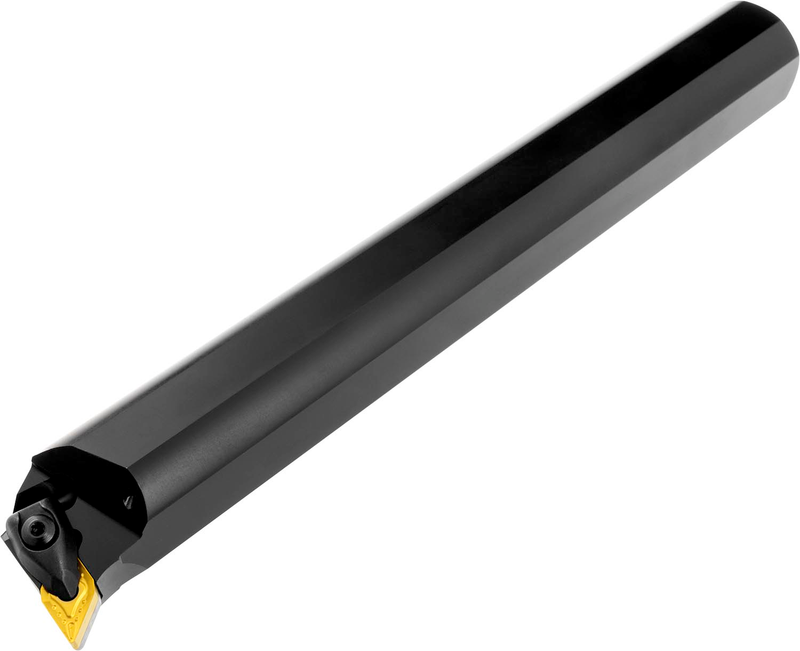

Barre d'alésage à double serrage pour plaquette négative en losange 55° avec un diamètre de cercle inscrit de 12,7 mm, 6,35 mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe à droite 93° avec queue déportée, acier avec trou d'arrosage, 40 mm de diamètre x 300 mm de long pour le chanfreinage interne, l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-DDUNR 15
Product Number7028496
Product FamilyDDUN(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.457 mm
Min. Bore Dia. — in (DMIN)1.969"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028496
EAN3603603106017
File Type Download

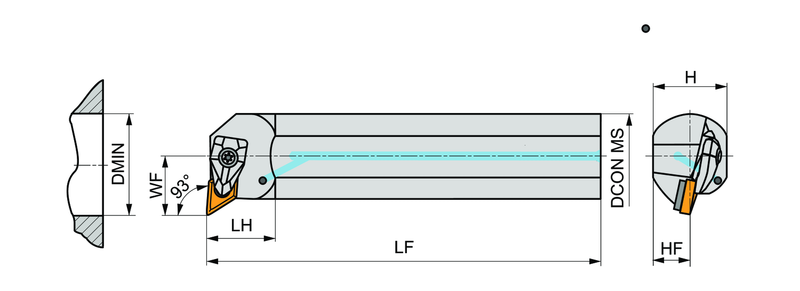

A40T-DDUNR 15 — Line Drawing PDF Download
