A40T-DCLNR 12
A40T-DCLNR 12

A40T-DCLNR 12

UGC DOR7028502
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

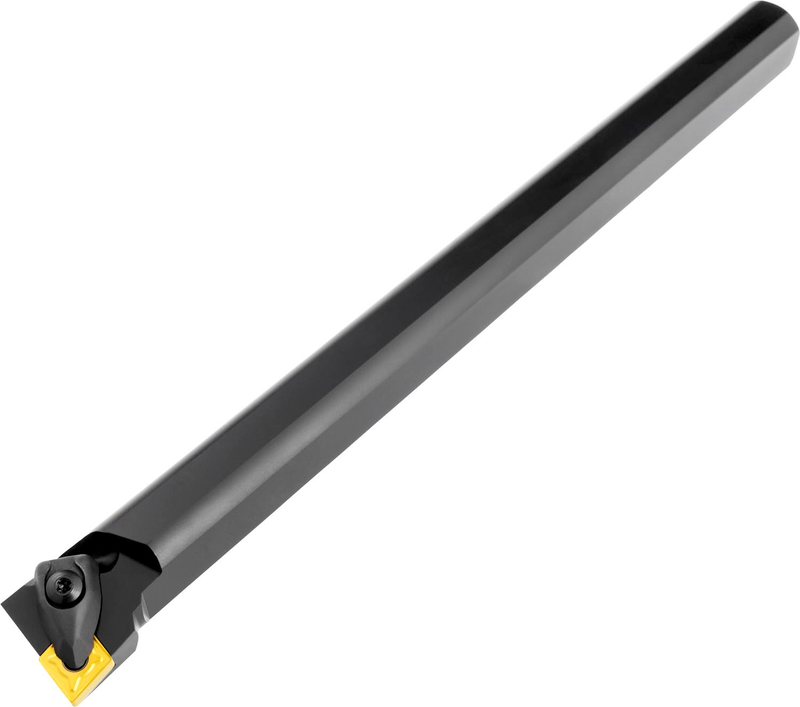

Barre d'alésage à double serrage pour plaquette négative en losange 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CN.. 1204.. ), coupe à droite 95° latérale et frontale avec queue déportée, acier avec trou d'arrosage, 40 mm de diamètre x 300 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-DCLNR 12
Product Number7028502
Product FamilyDCLN(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.457 mm
Min. Bore Dia. — in (DMIN)1.969"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028502
EAN3603603106079
File Type Download

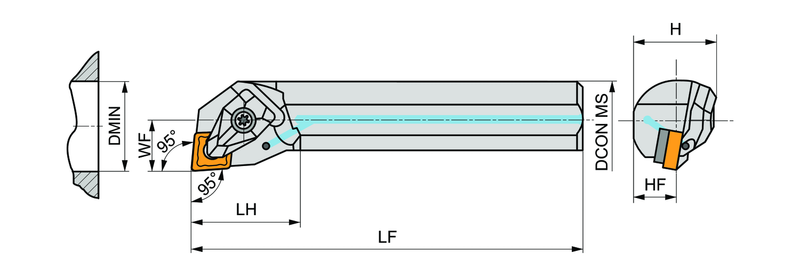

A40T-DCLNR 12 — Line Drawing PDF Download
