A40T-DTFNR 22
A40T-DTFNR 22

A40T-DTFNR 22

UGC DOR7028504
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

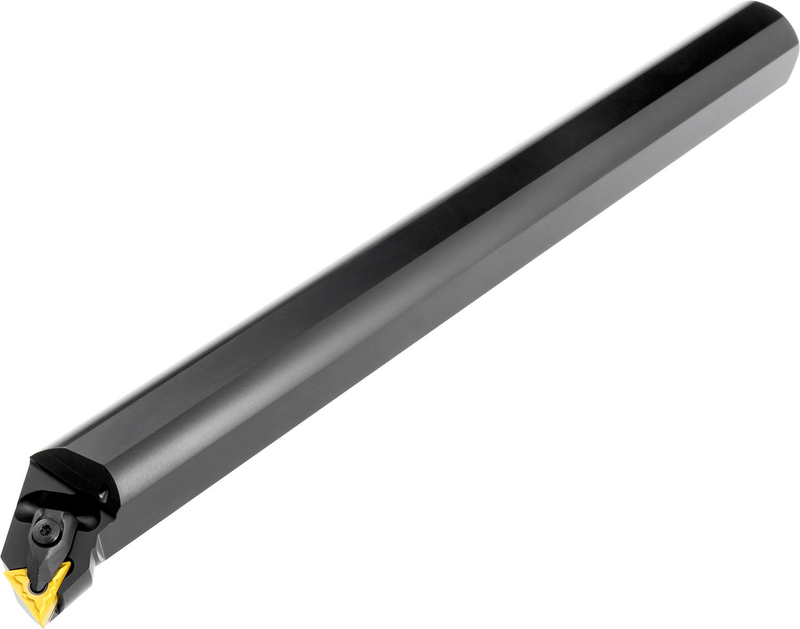

Barre d'alésage à double serrage pour plaquette négative triangulaire d'un diamètre de cercle inscrit de 12,7 mm, de 4,76 mm d'épaisseur (désignation ISO TN.. 2204..), à coupe frontale droite de 90° avec queue déportée, en acier avec trou d'arrosage, de 40 mm de diamètre x 300 mm de long pour le chanfreinage intérieur, l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-DTFNR 22
Product Number7028504
Product FamilyDTFN(RL) INT

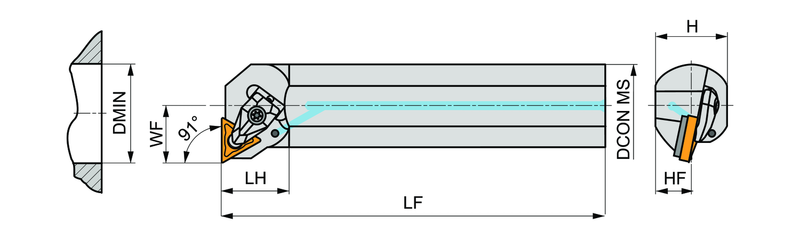

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.457 mm
Min. Bore Dia. — in (DMIN)1.969"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028504
EAN3603603106093
File Type Download
A40T-DTFNR 22 — Line Drawing PDF Download
