A50U-DDUNR 15
A50U-DDUNR 15

A50U-DDUNR 15

UGC DOR7028506
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

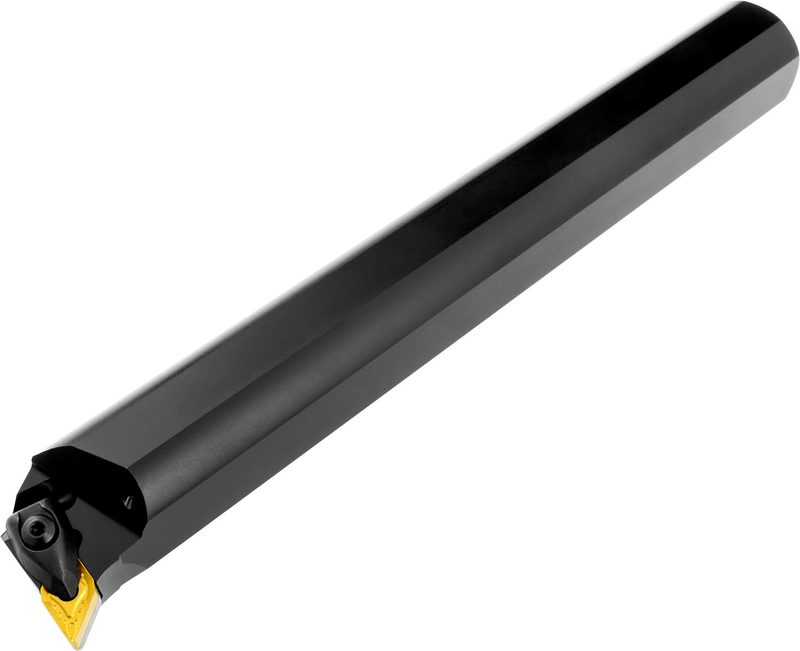

Barre d'alésage à double serrage pour plaquette négative rhomboïdale à 55° avec cercle inscrit de 12,7 mm de diamètre, 6,35 mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe à droite à 93° avec queue déportée, acier avec trou d'arrosage, 50 mm de diamètre x 350 mm de long pour le chanfreinage interne, l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-DDUNR 15
Product Number7028506
Product FamilyDNP(DDN) INT

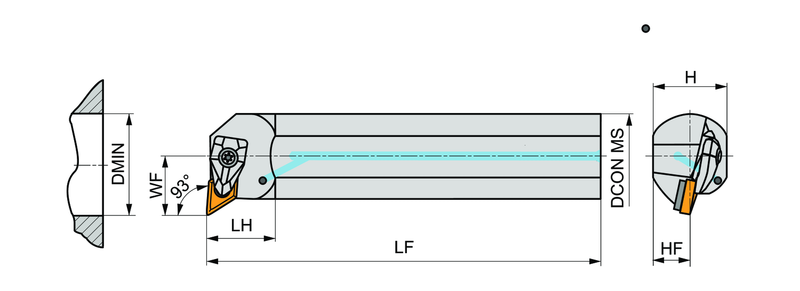

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.48"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028506
EAN3603603106116
File Type Download
A50U-DDUNR 15 — 3D Model STP Download
A50U-DDUNR 15 — Line Drawing PDF Download
