A50U-DWLNL 08

A50U-DWLNL 08

UGC DOR7028507
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

Porte-outil à double serrage pour plaquette négative trigon à 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO WN.. 0804.. ), coupe à gauche à 95° latérale et frontale avec corps déporté, acier avec trou d'arrosage, 50 mm de diamètre x 350 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-DWLNL 08
Product Number7028507
Product FamilyDWLN(RL) INT

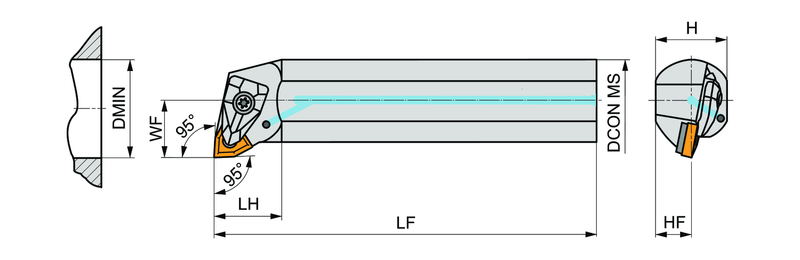

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.48"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7028507
EAN3603603106123
File Type Download
A50U-DWLNL 08 — 3D Model STP Download
A50U-DWLNL 08 — Line Drawing PDF Download
