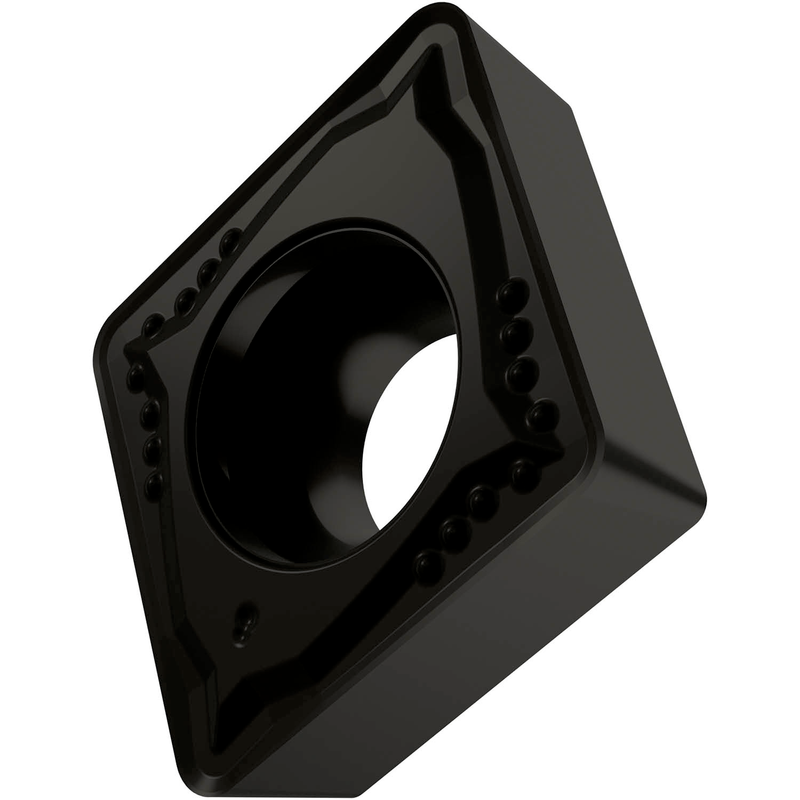

CCMT 32.51W-FM:T9325
CCMT 32.51W-FM:T9325

CCMT 32.51W-FM:T9325

UGC DOR7034003
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.19 CAD - $13.19 CAD
$13.19 CAD
$13.19 CAD - $13.19 CAD
$13.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec conception de bord WIPER, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.51W-FM:T9325
Product Name (ISO)CCMT 09T304W-FM:T9325
GradeT9325
Chipbreaker (CBMD)W-FM
Product Number7034003
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle compris rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7034003
EAN3603603108066
File Type Download
CCMT 32.51W-FM:T9325 — Line Drawing PDF Download
