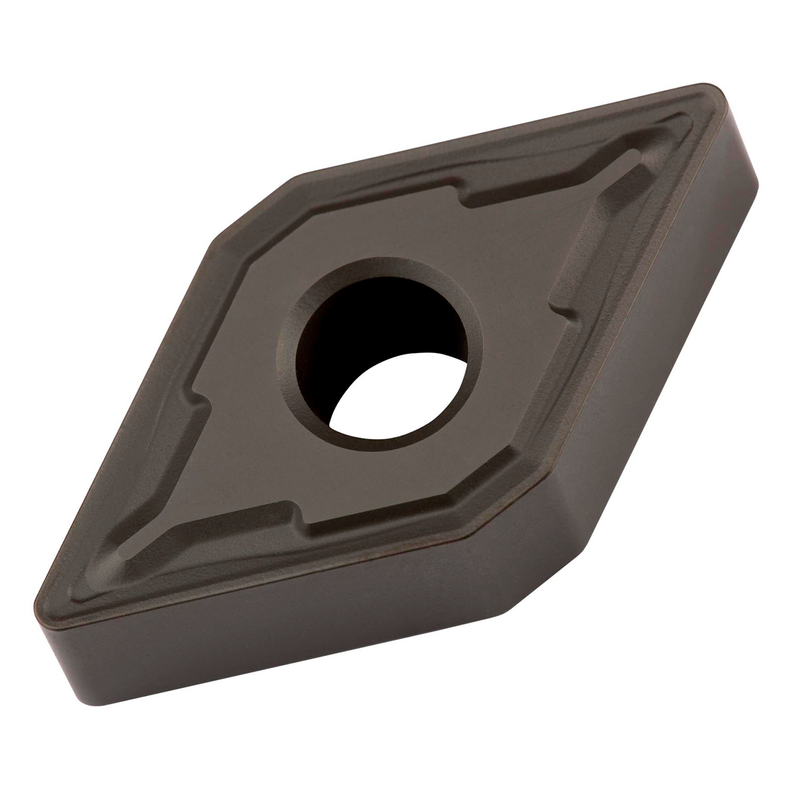

DNMG 432-R:T5315
DNMG 432-R:T5315

DNMG 432-R:T5315

UGC DOR7035040
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.61 CAD - $20.61 CAD
$20.61 CAD
$20.61 CAD - $20.61 CAD
$20.61 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux R, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10-K25, pour l'usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 432-R:T5315
Product Name (ISO)DNMG 150408E-R:T5315
GradeT5315
Chipbreaker (CBMD)R
Product Number7035040
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle entre faces de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7035040
EAN3603603109117
File Type Download
DNMG 432-R:T5315 — Line Drawing PDF Download
