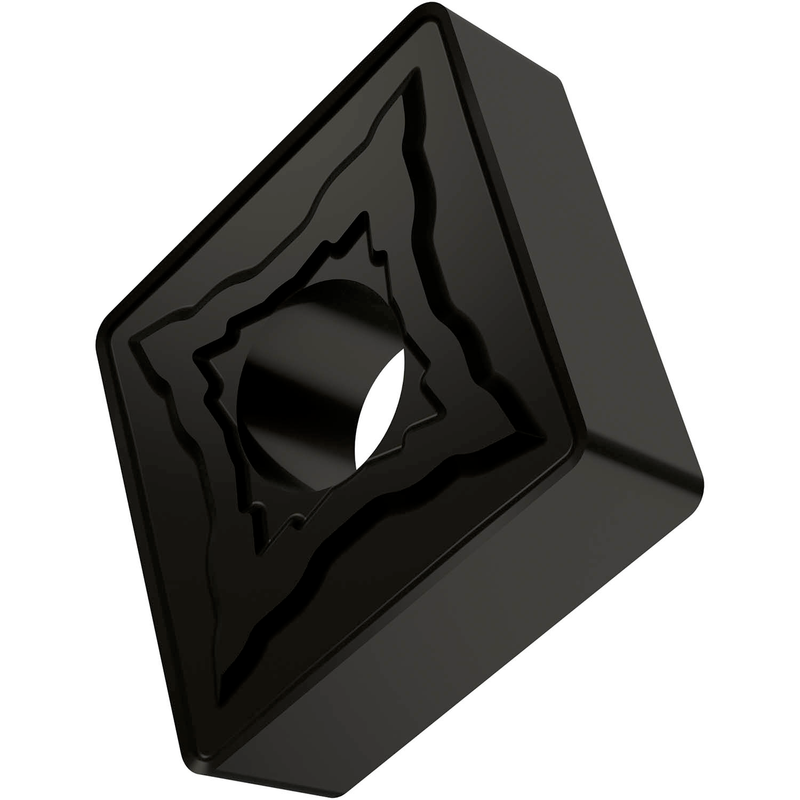

CNMG 642-NMR:T9325
CNMG 642-NMR:T9325

CNMG 642-NMR:T9325

UGC DOR7038051
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 3/4", épaisseur de 1/4", rayon de pointe de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage de finition à l'usinage lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 642-NMR:T9325
Product Name (ISO)CNMG 190608E-NMR:T9325
GradeT9325
Chipbreaker (CBMD)RMN
Product Number7038051
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.295"
Depth of Cut Max — mm (APMX)7.5 mm
Tool Information
Reference Numbers
EDP Number7038051
EAN3603603111288
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 642-NMR:T9325 — Line Drawing PDF Download
