SNMG 432-NMR:T7335
SNMG 432-NMR:T7335

SNMG 432-NMR:T7335

UGC DOR7038087
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

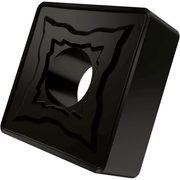

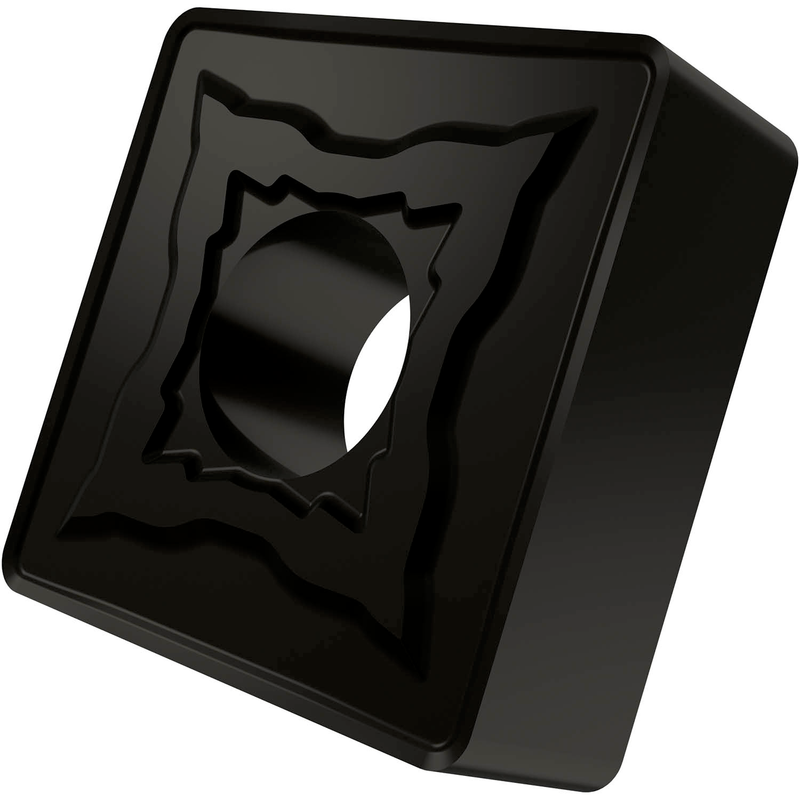

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 12,7 mm (1/2"), de 4,76 mm (3/16") d'épaisseur, rayon de bec de 0,79 mm (1/32") et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage de finition à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-RMN:T7335
Product Name (ISO)SNMG 120408E-NMR:T7335
GradeT7335
Chipbreaker (CBMD)RMN
Product Number7038087
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7038087
EAN3603603111646
Material Group Suitability
P — Steel and Cast Steel Usage possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
SNMG 432-NMR:T7335 — Line Drawing PDF Download
