TNMG 432-NMR:T9325
TNMG 432-NMR:T9325

TNMG 432-NMR:T9325

UGC DOR7038113
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

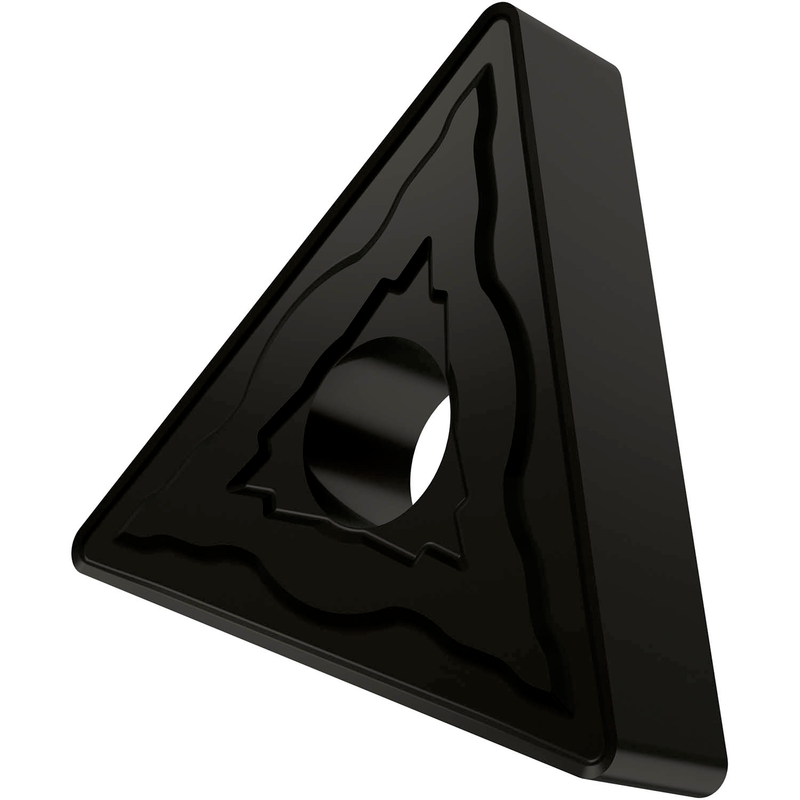

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO- M, brise-copeaux NMR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 432-NMR:T9325
Product Name (ISO)TNMG 220408E-NMR:T9325
GradeT9325
Chipbreaker (CBMD)RMN
Product Number7038113
Product FamilyGTNM
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angle inclus triangulaire de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number7038113
EAN3603603111905
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 432-NMR:T9325 — Line Drawing PDF Download
