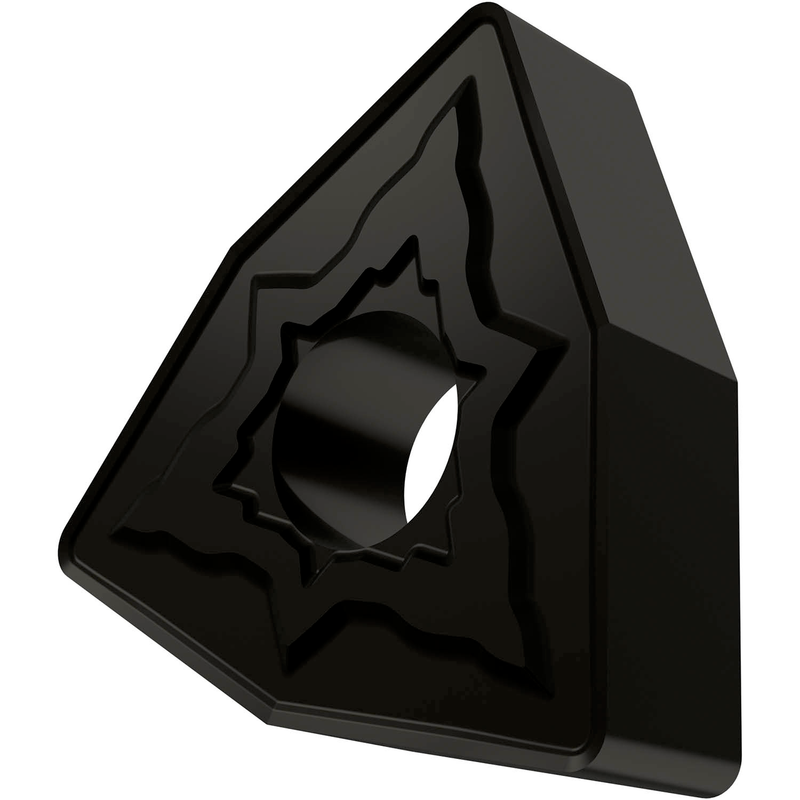

WNMG 433-NMR:T7335
WNMG 433-NMR:T7335

WNMG 433-NMR:T7335

UGC DOR7038141
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette négative double-face, trigon 80° avec diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage de finition à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-NMR:T7335
Product Name (ISO)WNMG 080412E-NMR:T7335
GradeT7335
Chipbreaker (CBMD)RMN
Product Number7038141
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7038141
EAN3603603112186
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
WNMG 433-NMR:T7335 — Line Drawing PDF Download
