125A08R-S19PD09-C
125A08R-S19PD09-C
125A08R-S19PD09-C

125A08R-S19PD09-C

UGC DOR7039765
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,361.00 CAD - $1,361.00 CAD
$1,361.00 CAD
$1,361.00 CAD - $1,361.00 CAD
$1,361.00 CAD

Vendu en lots de : 1

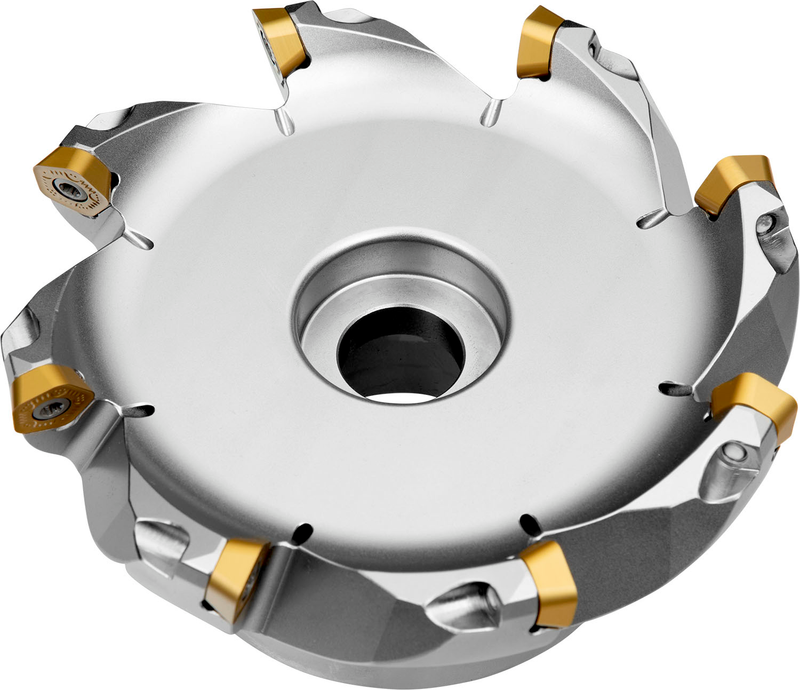

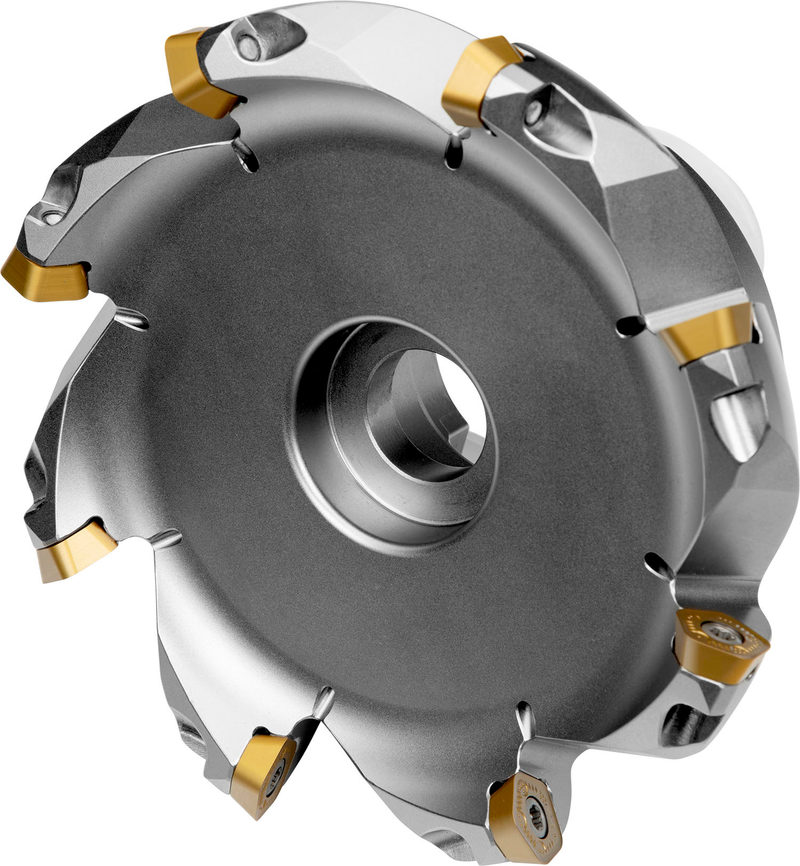

Fraise à avance élevée avec géométrie positive/négative qui utilise 8 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 125 mm avec angle d'attaque de 19° et alésage de raccordement de 40 mm selon DIN 8030-A, longueur de dépassement de 63 mm, arrosage central pour le surfaçage avec une profondeur de coupe maximale de 2,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A08R-S19PD09-C
Product Number7039765
Product FamilySPD09
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)4.343"
Cutting Diameter — mm (DC)110.3 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSPD09
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7039765
EAN3603603114012
File Type Download
125A08R-S19PD09-C — 3D Model STP Download
125A08R-S19PD09-C — 2D Model DXF Download
125A08R-S19PD09-C — Line Drawing PDF Download
