PLBNR 6060 V 50-2
PLBNR 6060 V 50-2
PLBNR 6060 V 50-2

PLBNR 6060 V 50-2

UGC DOR7045479
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$843.00 CAD - $843.00 CAD
$843.00 CAD
$843.00 CAD - $843.00 CAD
$843.00 CAD

Vendu en lots de : 1

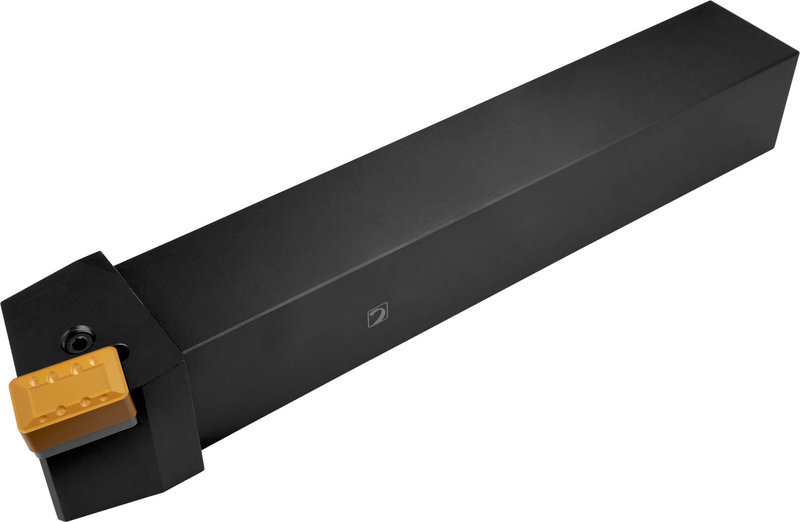

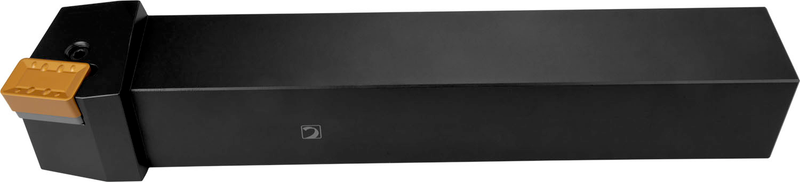

Outil à levier pour insert négatif rectangulaire avec une longueur d'arête principale de 50,8 mm (désignation ISO LNMX 50....), coupe à droite 75° avec queue droite, hauteur d'outil de 60 mm x largeur de 60 mm x 400 mm de long pour le chariotage conique et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PLBNR 6060 V 50-2
Product Number7045479
Product FamilyPLBN(RL) EXT
Dimensions
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Shank Height — mm (H)2.362 mm
Tool Information
Reference Numbers
EDP Number7045479
EAN3603603115026
File Type Download
PLBNR 6060 V 50-2 — 3D Model STP Download

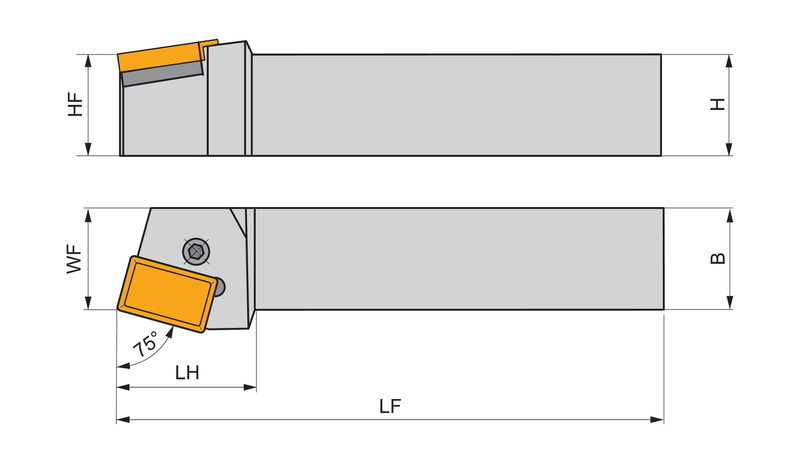

PLBNR 6060 V 50-2 — Line Drawing PDF Download
