PDKT 090530ER-FM:M9325
PDKT 090530ER-FM:M9325

PDKT 090530ER-FM:M9325

UGC DOR7048989
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.24 CAD - $25.24 CAD
$25.24 CAD
$25.24 CAD - $25.24 CAD
$25.24 CAD

Vendu en lots de : 10

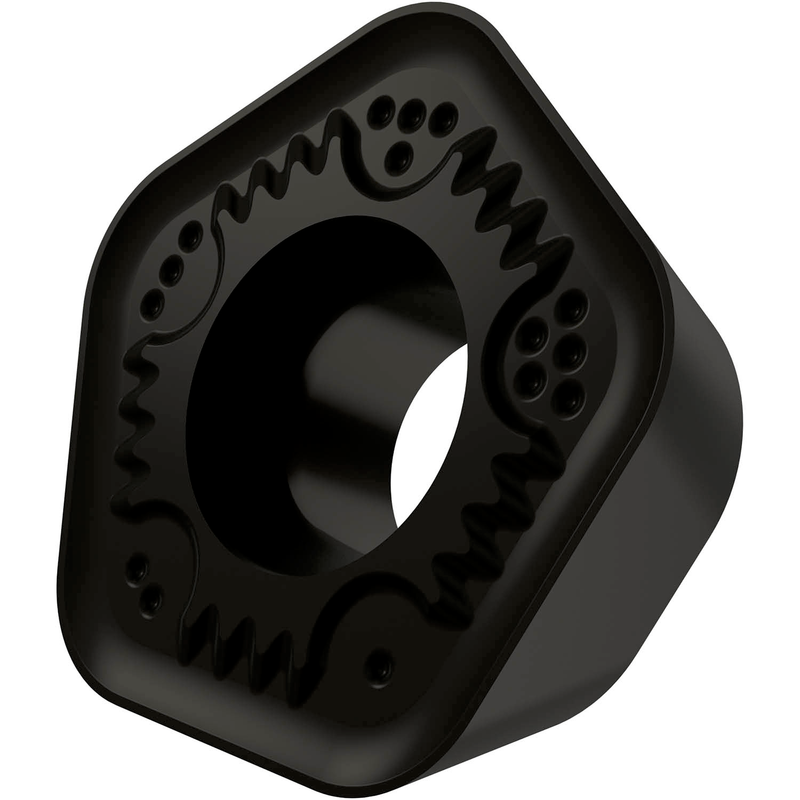

Plaquette de fraisage simple face PDKT 0905 avec brise-copeaux, pentagonale pour une profondeur de coupe maximale de 2 mm, avec un rayon de coin de 3 mm, une précision d'indexage selon la classe de tolérance ISO K et une géométrie FM avec des arêtes de coupe arrondies, en carbure WC-Co revêtu MT-CVD M9325 pour l'usinage de l'acier avec des fraises à avance élevée SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDKT 090530ER-FM:M9325
GradeM9325
Chipbreaker (CBMD)FM
Product Number7048989
Product FamilyPDKT 09

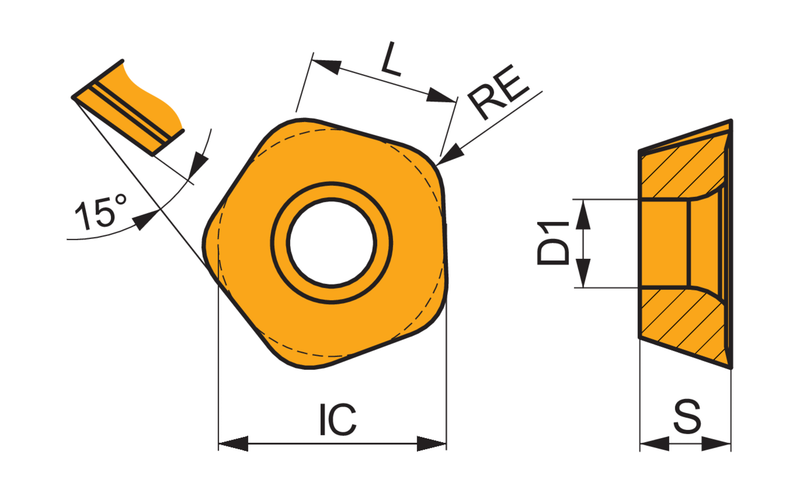

Insert Geometry
Insert DesignPDKT
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Corner Radius — in (RE)0.118"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7048989
EAN3603603116054
File Type Download
PDKT 090530ER-FM:M9325 — Line Drawing PDF Download
