PDMX 0905ZESR-R:M9325
PDMX 0905ZESR-R:M9325

PDMX 0905ZESR-R:M9325

UGC DOR7049050
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 CAD - $22.76 CAD
$22.76 CAD
$22.76 CAD - $22.76 CAD
$22.76 CAD

Vendu en lots de : 10

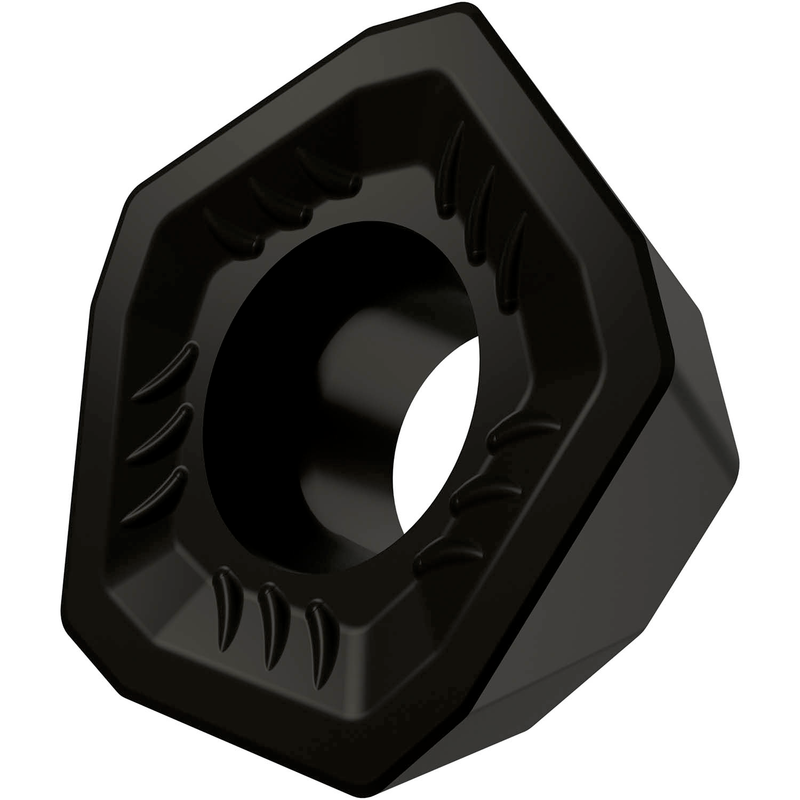

Plaquette de fraisage simple face PDMX 0905, pentagonale pour une profondeur de coupe maximale de 2 mm, avec un rayon de coin de ", une précision de positionnement selon la classe de tolérance ISO M et une géométrie R avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu M9325 MT-CVD pour l'usinage avec fraises à avancement rapide SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDMX 0905ZESR-R:M9325
GradeM9325
Chipbreaker (CBMD)R
Product Number7049050
Product FamilyPDMX 09

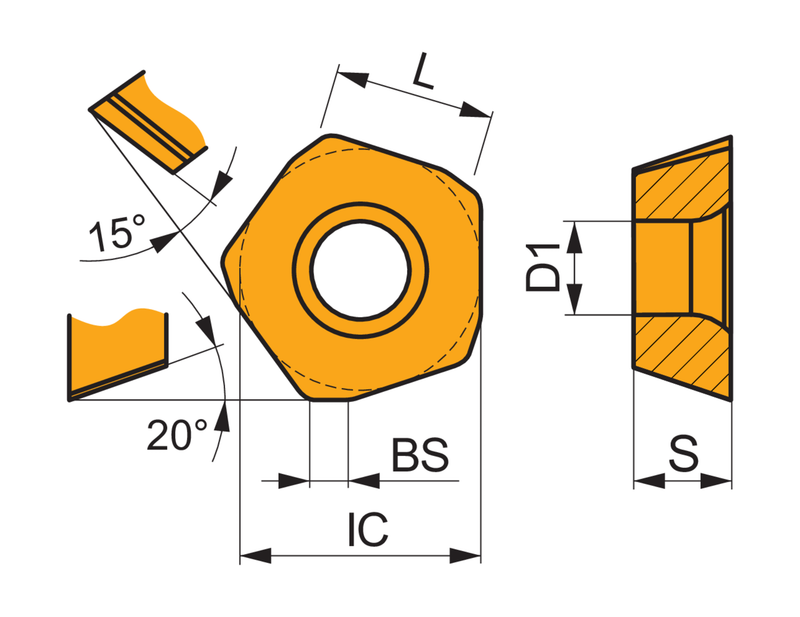

Insert Geometry
Insert DesignPDMX
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7049050
EAN3603603116061
File Type Download
PDMX 0905ZESR-R:M9325 — Line Drawing PDF Download
