25A4R040A25-SAD11E-C
25A4R040A25-SAD11E-C
25A4R040A25-SAD11E-C

25A4R040A25-SAD11E-C

UGC DOR7049093
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$343.00 CAD - $343.00 CAD
$343.00 CAD
$343.00 CAD - $343.00 CAD
$343.00 CAD

Vendu en lots de : 1

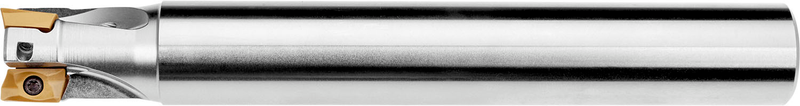

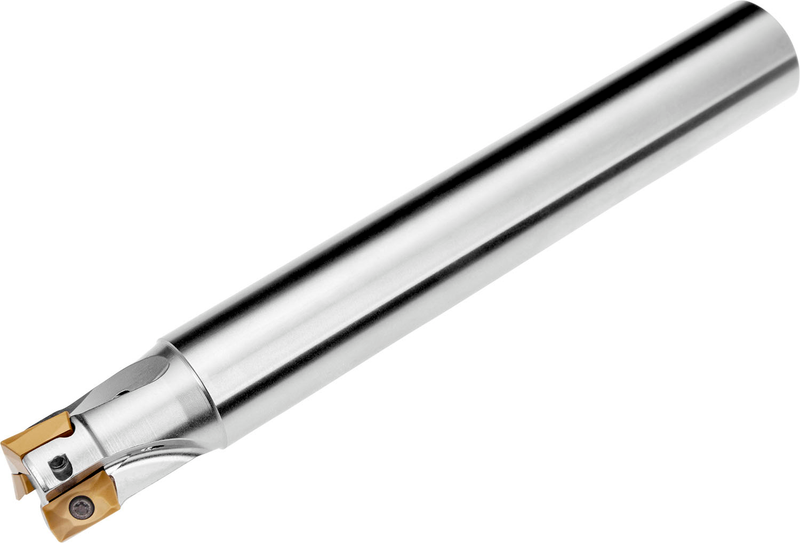

Fraise à épaule avec géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 25mm avec un angle d'attaque de 90° et un queue cylindrique de 25mm selon DIN 1835A, longueur fonctionnelle de 40mm et longueur totale de 250mm, arrosage central pour le fraisage en copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A4R040A25-SAD11E-C
Product Number7049093
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

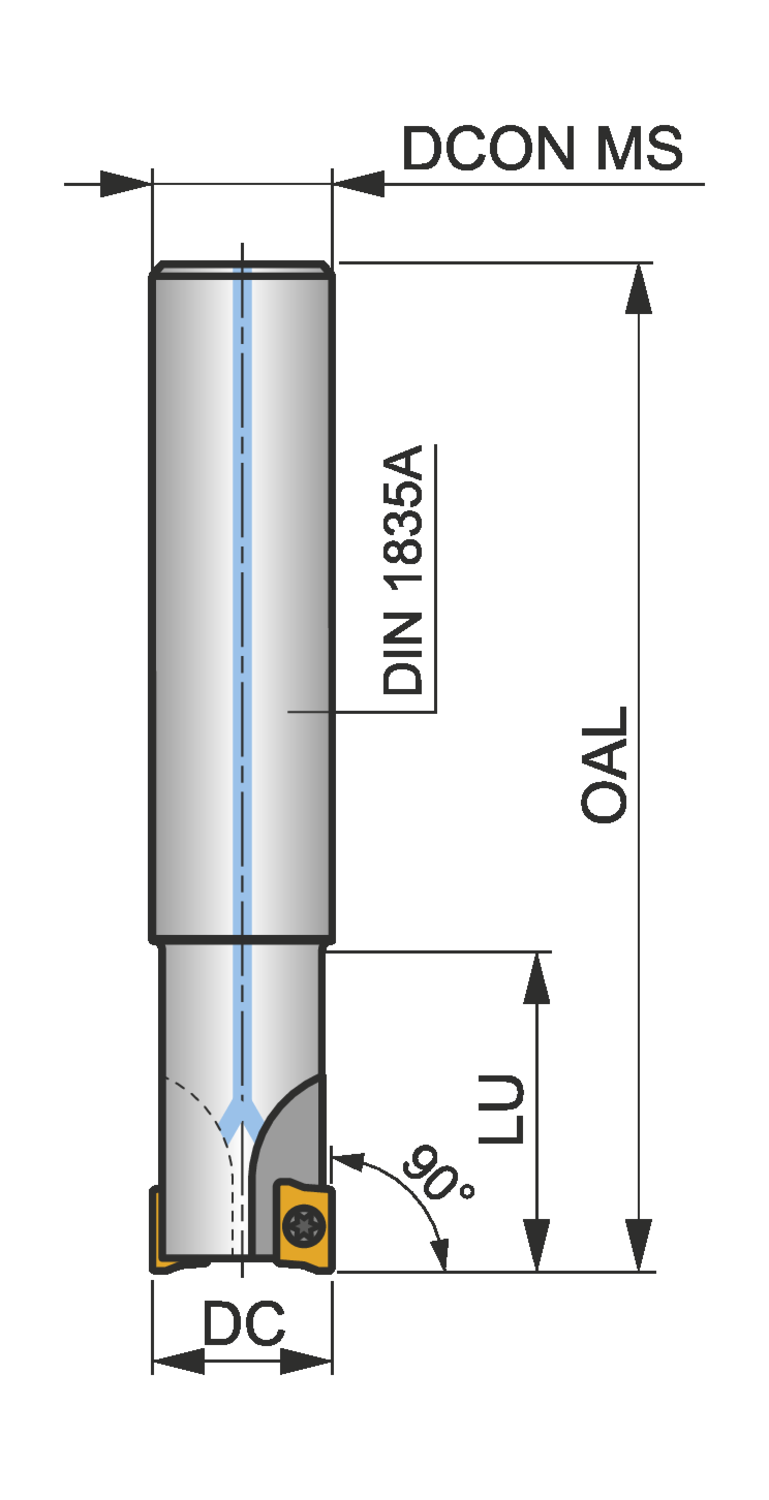

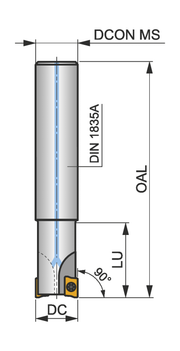

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7049093
EAN3603603116085
File Type Download
25A4R040A25-SAD11E-C — 3D Model STP Download
25A4R040A25-SAD11E-C — 2D Model DXF Download
25A4R040A25-SAD11E-C — Line Drawing PDF Download
