30A3R080A32-SAD11E-C
30A3R080A32-SAD11E-C
30A3R080A32-SAD11E-C

30A3R080A32-SAD11E-C

UGC DOR7049094
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$354.00 CAD - $354.00 CAD
$354.00 CAD
$354.00 CAD - $354.00 CAD
$354.00 CAD

Vendu en lots de : 1

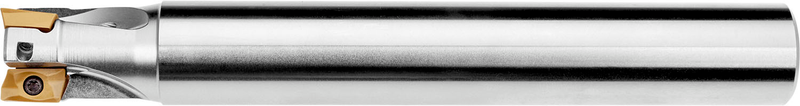

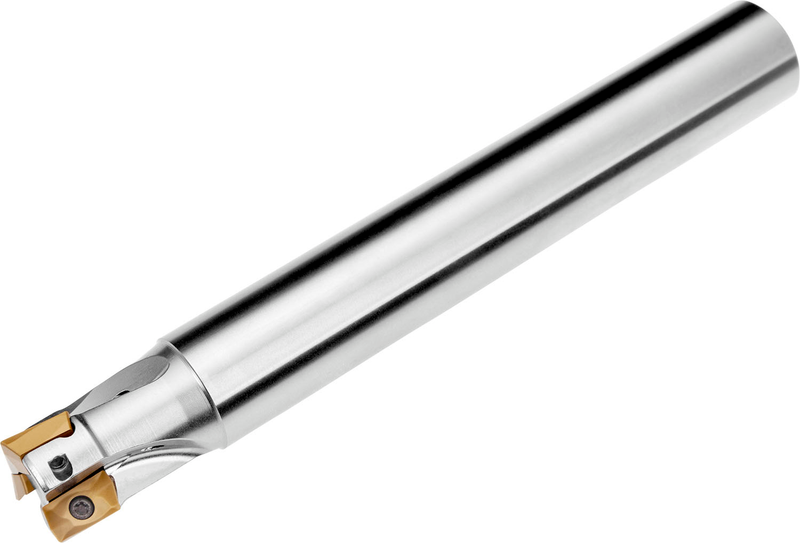

Fraise à épaulement à géométrie positive/négative utilisant 3 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 30 mm avec angle d'attaque de 90° et queue cylindrique de 32 mm selon DIN 1835A, longueur fonctionnelle de 80 mm et longueur totale de 200 mm, arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)30A3R080A32-SAD11E-C
Product Number7049094
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

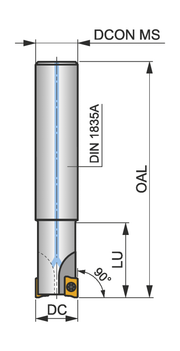

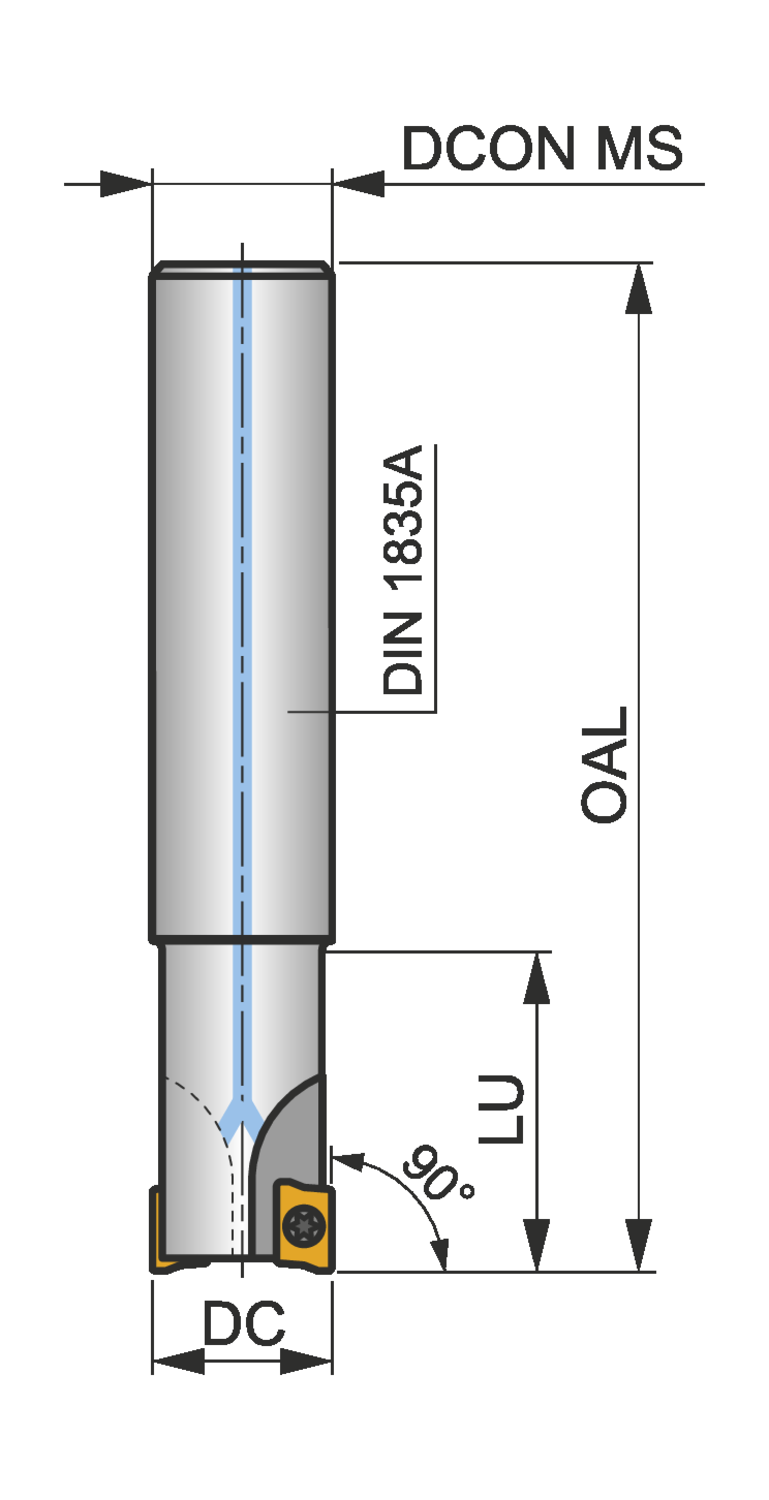

Dimensions
Cutting Diameter — in (DC)1.181"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7049094
EAN3603603116092
File Type Download
30A3R080A32-SAD11E-C — 3D Model STP Download
30A3R080A32-SAD11E-C — 2D Model DXF Download
30A3R080A32-SAD11E-C — Line Drawing PDF Download
