35A5R025A32-SAD11E-C
35A5R025A32-SAD11E-C
35A5R025A32-SAD11E-C

35A5R025A32-SAD11E-C

UGC DOR7049095
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$400.00 CAD - $400.00 CAD
$400.00 CAD
$400.00 CAD - $400.00 CAD
$400.00 CAD

Vendu en lots de : 1

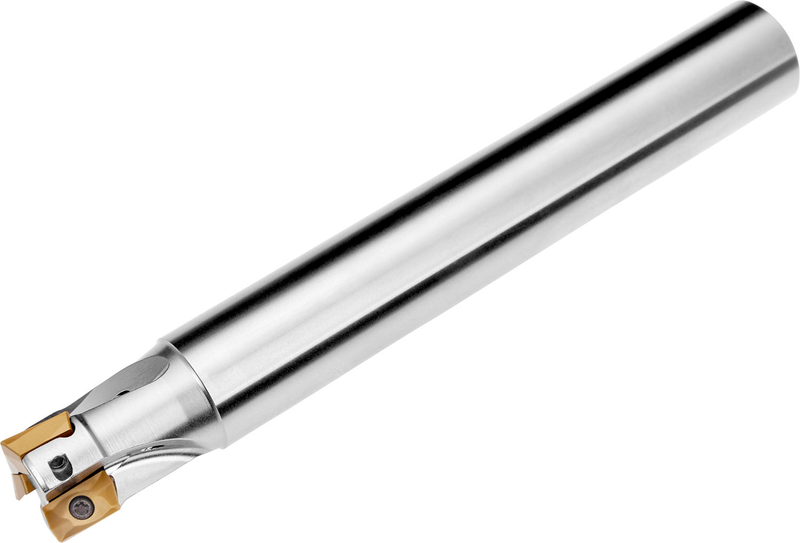

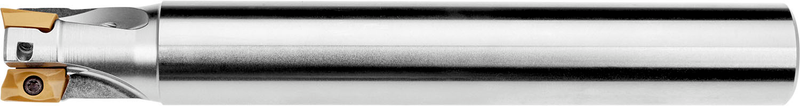

Fraise à épaulement à géométrie positive/négative utilisant 5 plaquettes simple-face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 35mm avec un angle d'attaque de 90° et une queue cylindrique de 32mm selon DIN 1835A, longueur fonctionnelle 25mm et longueur totale 200mm, arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en piqué et le fraisage en piqué progressif avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35A5R025A32-SAD11E-C
Product Number7049095
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

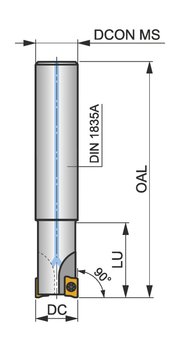

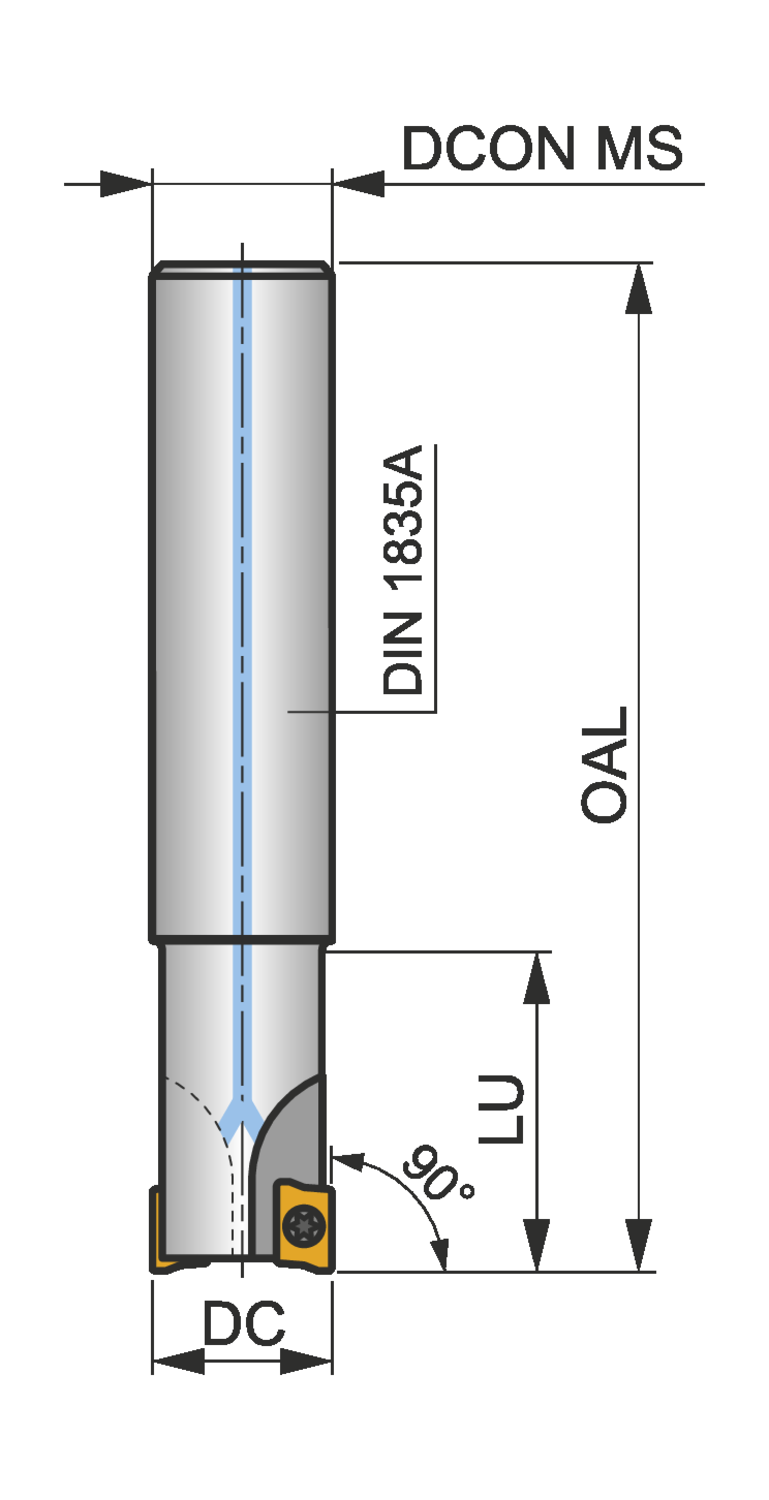

Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7049095
EAN3603603116108
File Type Download
35A5R025A32-SAD11E-C — 3D Model STP Download
35A5R025A32-SAD11E-C — 2D Model DXF Download
35A5R025A32-SAD11E-C — Line Drawing PDF Download
