12L2R035A12-SZP12
12L2R035A12-SZP12
12L2R035A12-SZP12

12L2R035A12-SZP12

UGC DOR7049115
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$494.00 CAD - $494.00 CAD
$494.00 CAD
$494.00 CAD - $494.00 CAD
$494.00 CAD

Vendu en lots de : 1

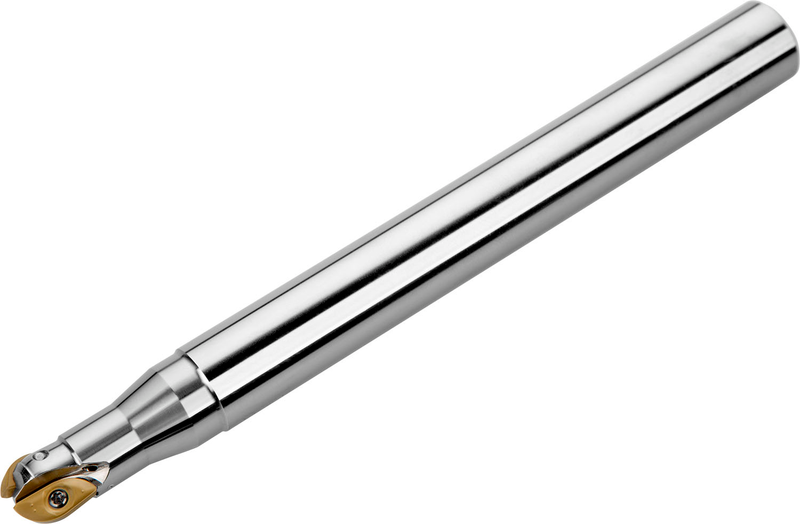

Fraise à copier avec double géométrie négative qui utilise 2 plaquettes simple face ZP 12.., diamètre de coupe de 12 mm avec queue cylindrique de 12 mm selon DIN 1835A, longueur fonctionnelle de 35 mm et longueur totale de 140 mm pour fraisage à copier avec une profondeur de coupe maximale de 10,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12L2R035A12-SZP12
Product Number7049115
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)10.7 mm

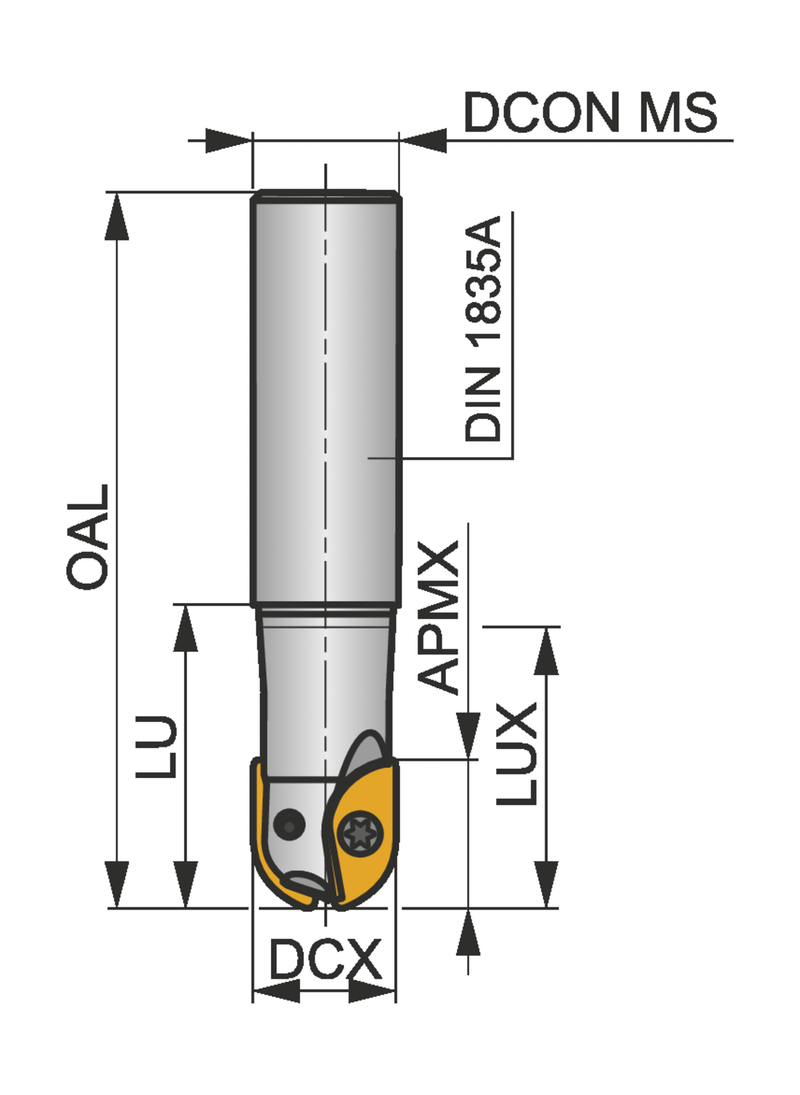

Dimensions
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number7049115
EAN3603603116184
File Type Download
12L2R035A12-SZP12 — 3D Model STP Download
12L2R035A12-SZP12 — 2D Model DXF Download
12L2R035A12-SZP12 — Line Drawing PDF Download
