ADEX 11T308SR-HF2:M8310
ADEX 11T308SR-HF2:M8310

ADEX 11T308SR-HF2:M8310

UGC DOR7056741
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.73 CAD - $15.73 CAD
$15.73 CAD
$15.73 CAD - $15.73 CAD
$15.73 CAD

Vendu en lots de : 10

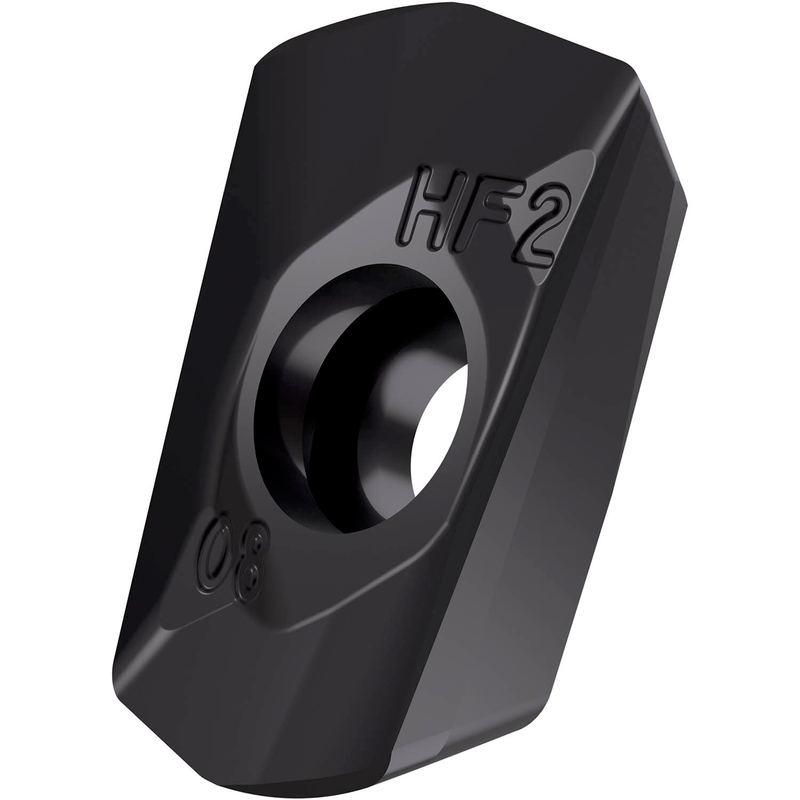

Plaquette de fraisage simple face ADEX 11T3, parallélogramme 85° et géométrie grande avance pour une profondeur de coupe maximale de 0,6 mm (0,0236"), avec rayon de coin de 0,8 mm (0,0315"), une précision de positionnement selon la classe de tolérance ISO-E et géométrie HF2 avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à épaulement SAD11E

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADEX 11T308SR-HF2:M8310
GradeM8310
Chipbreaker (CBMD)HF2
Product Number7056741
Product FamilyADEX 11-HF

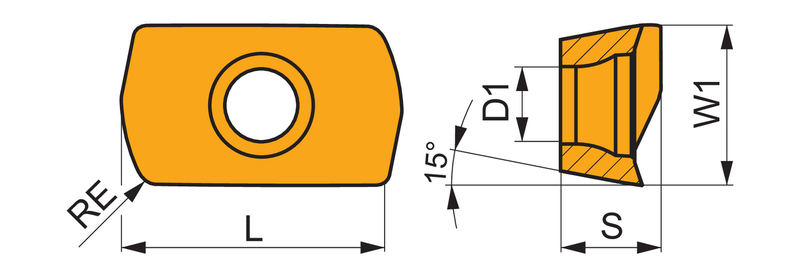

Insert Geometry
Insert DesignADEX
Insert Shape Code (SC)A - parallélogramme angle interne 85°
Insert Thickness — in (S)0.15"
Insert Thickness — mm (S)3.82 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.024"
Depth of Cut Max — mm (APMX)0.6 mm
Tool Information
Reference Numbers
EDP Number7056741
EAN3603603119017
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
H — Hardened Materials Usage possible
File Type Download
ADEX 11T308SR-HF2:M8310 — Line Drawing PDF Download
