PDKX 0905ZEER-FM:M6330
PDKX 0905ZEER-FM:M6330

PDKX 0905ZEER-FM:M6330

UGC DOR7056845
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.24 CAD - $25.24 CAD
$25.24 CAD
$25.24 CAD - $25.24 CAD
$25.24 CAD

Vendu en lots de : 10

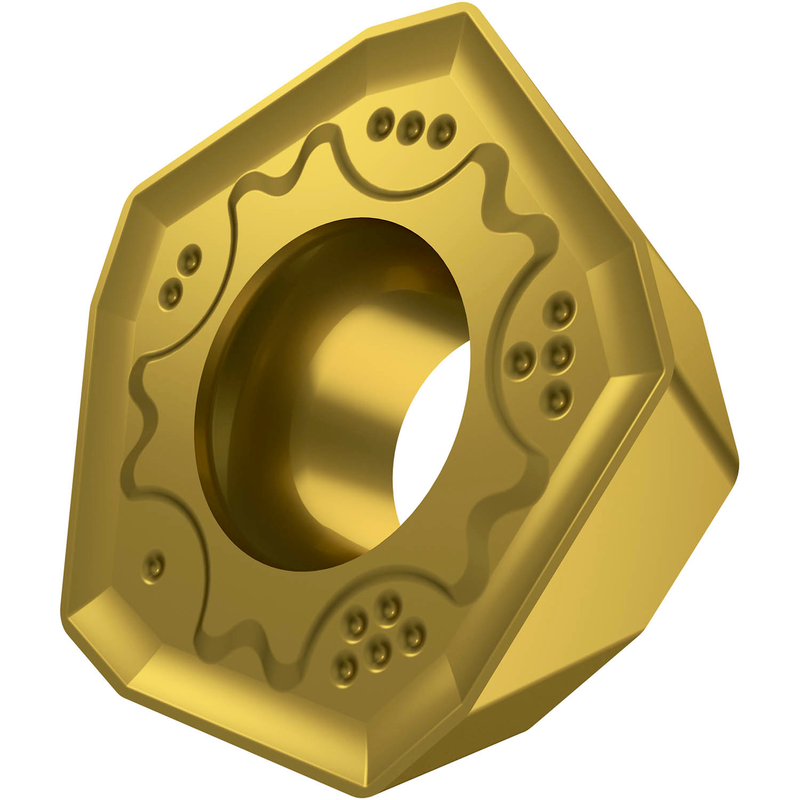

Plaquette de fraisage simple face PDKX 0905, pentagonale pour une profondeur de coupe maximale de 2 mm, avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-K et une géométrie FM avec arêtes de coupe arrondies, en carbure WC-Co revêtu PVD M6330 dans la gamme de grades ISO M20-M35 pour l'usinage de l'acier inoxydable avec fraises à avance rapide SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDKX 0905ZEER-FM:M6330
GradeM6330
Chipbreaker (CBMD)FM
Product Number7056845
Product FamilyPDKX 09

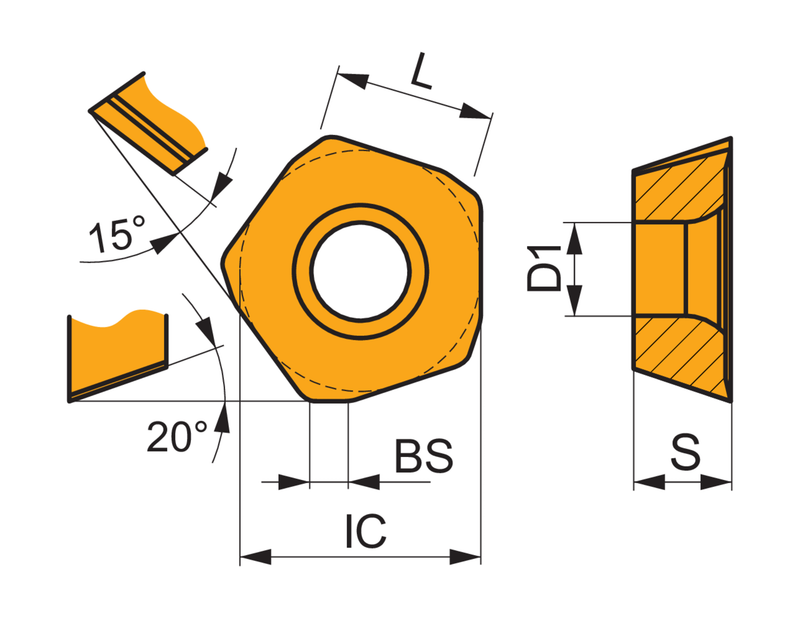

Insert Geometry
Insert DesignPDKX
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7056845
EAN3603603119390
File Type Download
PDKX 0905ZEER-FM:M6330 — Line Drawing PDF Download
