P6016.0X6.0
P6016.0X6.0
P6016.0X6.0

P6016.0X6.0

UGC DOR7059503
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.20 CAD - $21.20 CAD
$21.20 CAD
$21.20 CAD - $21.20 CAD
$21.20 CAD

Vendu en lots de : 1

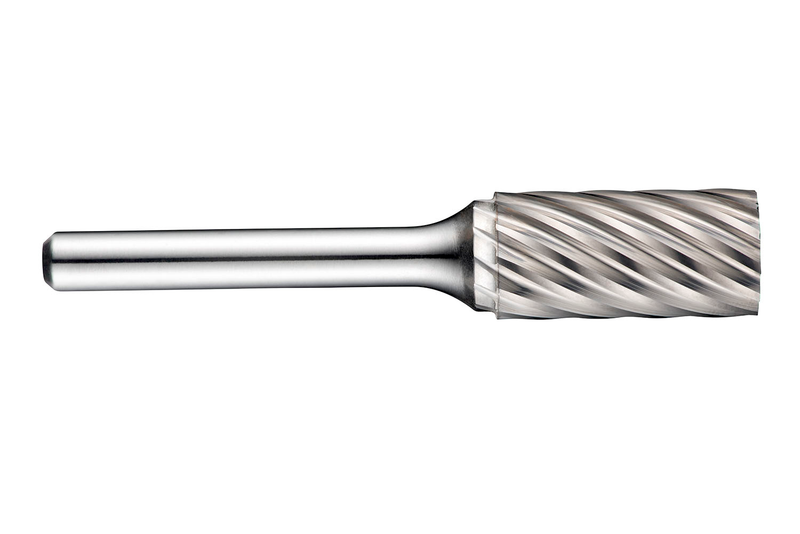

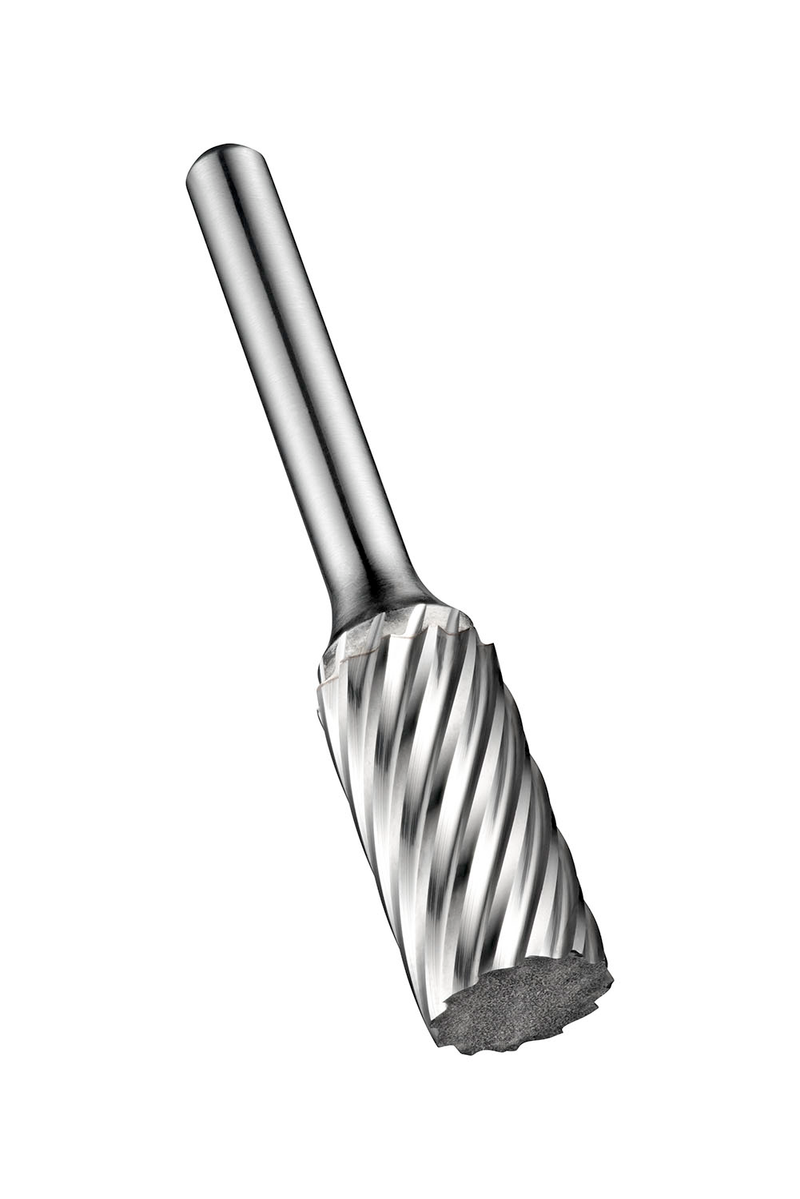

Fraise cylindrique sans coupe en bout (forme A), diamètre 6mm avec une longueur de coupe de 18mm, longueur totale de 50mm et queue de 6mm, carbure monobloc finition brillante, type de denture simple taille VA avec arêtes moyennement espacées pour l'usinage de surfaces en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6016.0X6.0
GradeLumineux
Product Number7059503
Product FamilyP601

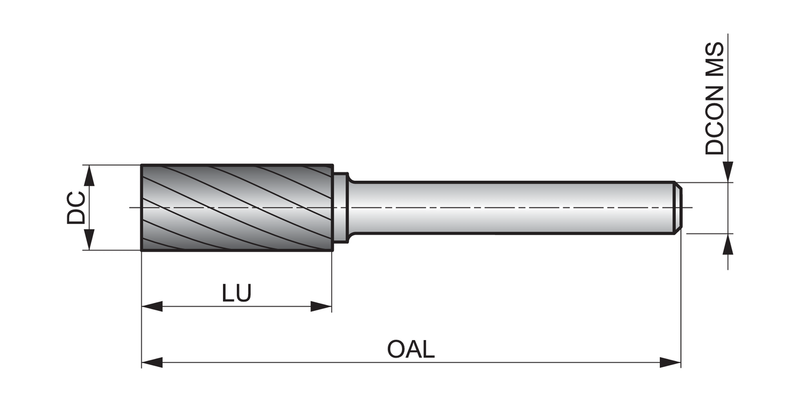

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059503
EAN7320760692790
File Type Download
P6016.0X6.0 — Line Drawing PDF Download
