P6016.3X3.0
P6016.3X3.0
P6016.3X3.0

P6016.3X3.0

UGC DOR7059504
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.37 CAD - $20.37 CAD
$20.37 CAD
$20.37 CAD - $20.37 CAD
$20.37 CAD

Vendu en lots de : 1

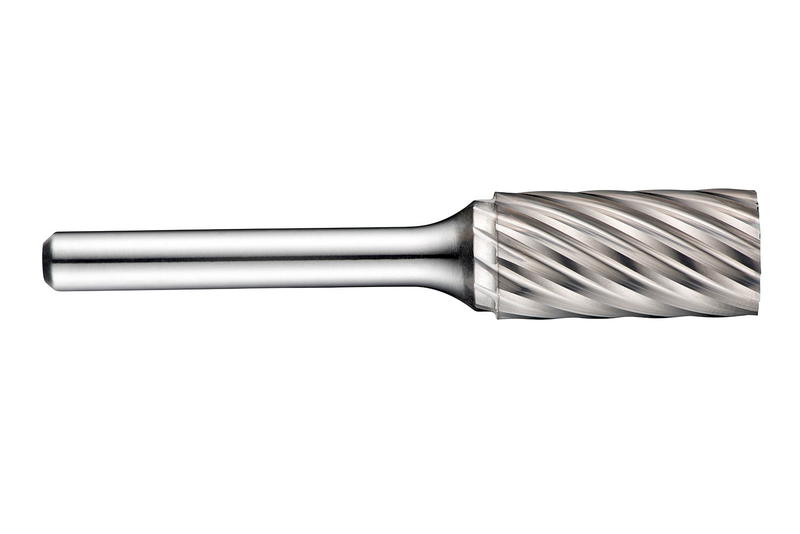

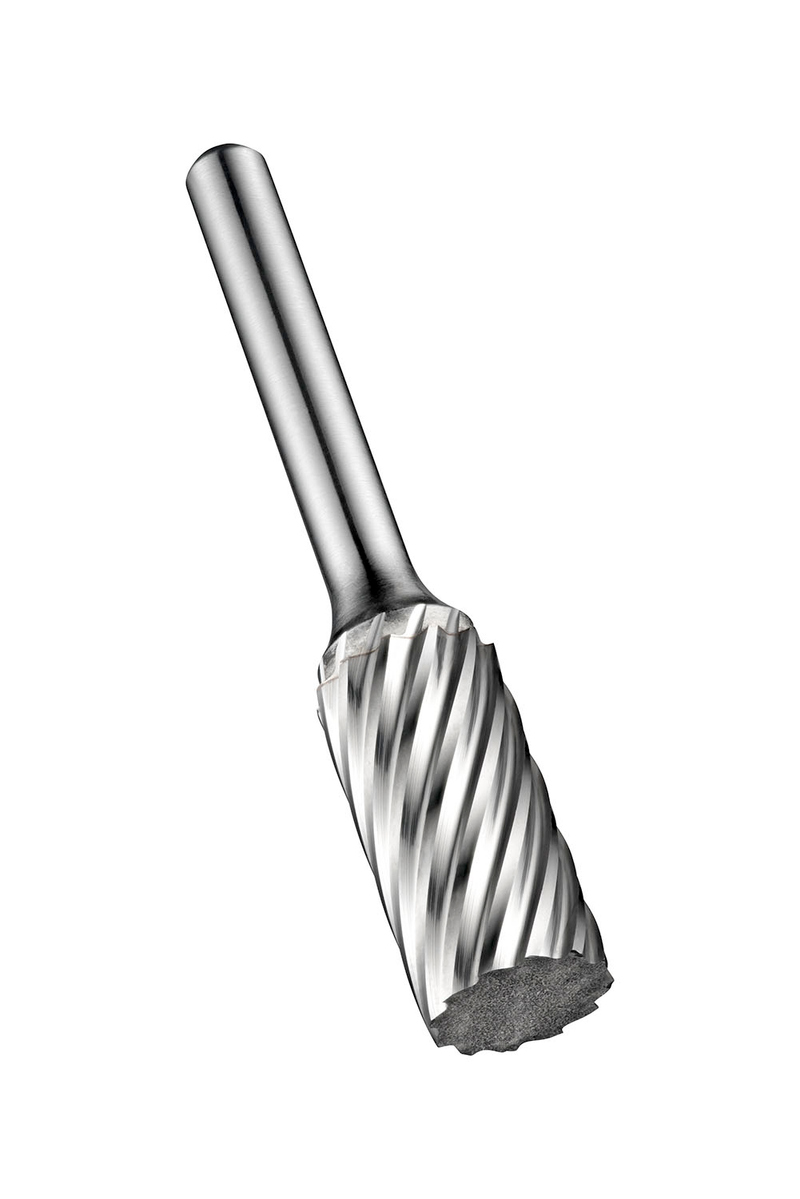

Lime cylindrique sans coupe frontale (forme A), diamètre 6,3mm avec une longueur de coupe de 12,7mm, longueur totale de 45mm et une queue de 3mm, avec plaquette en carbure de tungstène et queue en acier trempé et revenu et finition brillante, style de denture simple VA avec des arêtes moyennement espacées pour l'usinage de surfaces en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6016.3X3.0
GradeLumineux
Product Number7059504
Product FamilyP601
Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Usable Length — mm (LU)12.7 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059504
EAN7320760692806
File Type Download

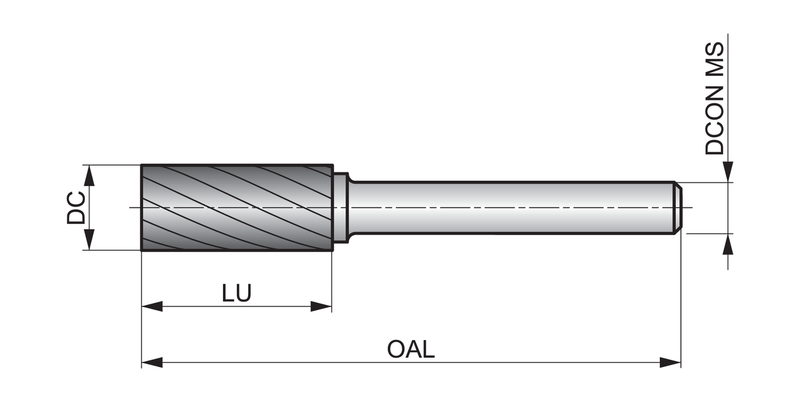

P6016.3X3.0 — Line Drawing PDF Download
