P6018.0X6.0
P6018.0X6.0
P6018.0X6.0

P6018.0X6.0

UGC DOR7059505
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.71 CAD - $27.71 CAD
$27.71 CAD
$27.71 CAD - $27.71 CAD
$27.71 CAD

Vendu en lots de : 1

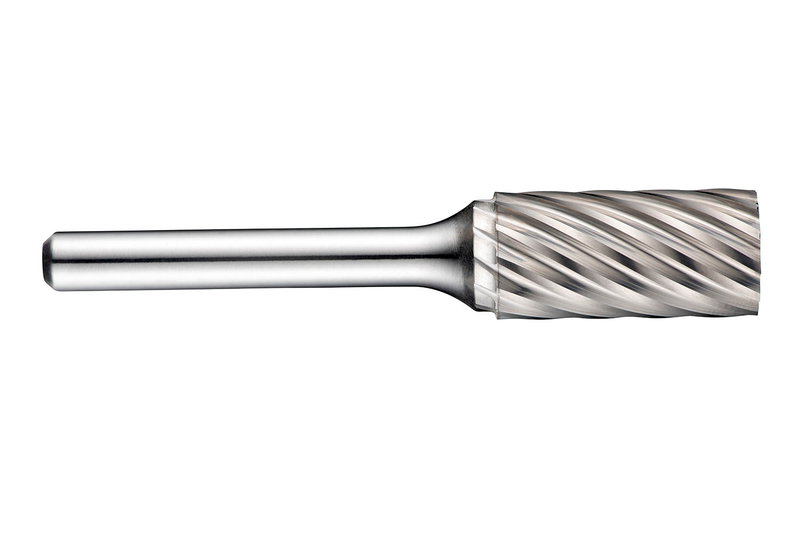

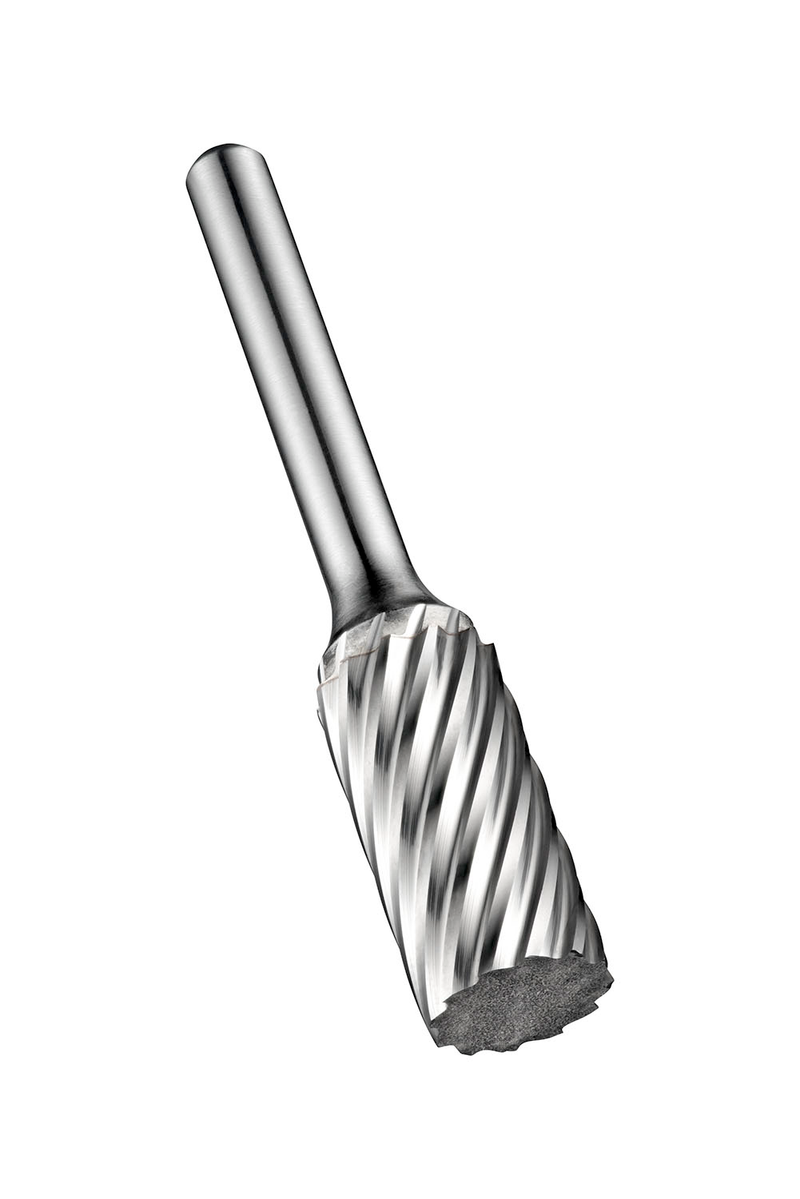

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 8mm avec une longueur de coupe de 19mm, longueur totale de 64mm et queue de 6mm, à pointe carbure avec queue en acier trempé et revenu et finition brillante, à denture unique VA avec bords espacés de manière moyenne pour l'usinage de surfaces en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6018.0X6.0
GradeLumineux
Product Number7059505
Product FamilyP601
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059505
EAN7320760692813
File Type Download

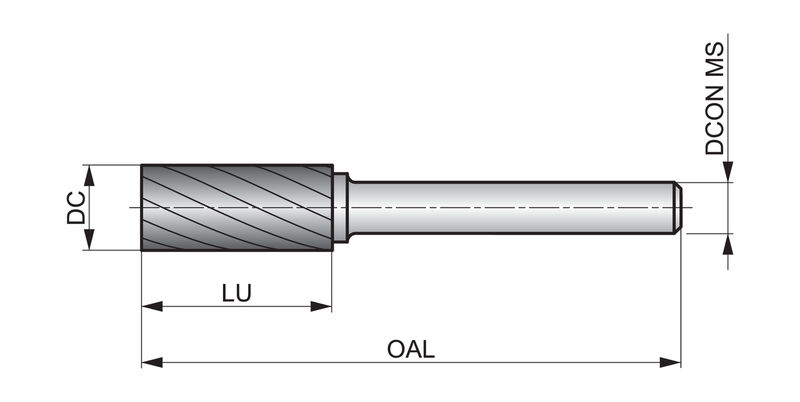

P6018.0X6.0 — Line Drawing PDF Download
