P60112.7X6.0
P60112.7X6.0
P60112.7X6.0

P60112.7X6.0

UGC DOR7059507
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.57 CAD - $46.57 CAD
$46.57 CAD
$46.57 CAD - $46.57 CAD
$46.57 CAD

Vendu en lots de : 1

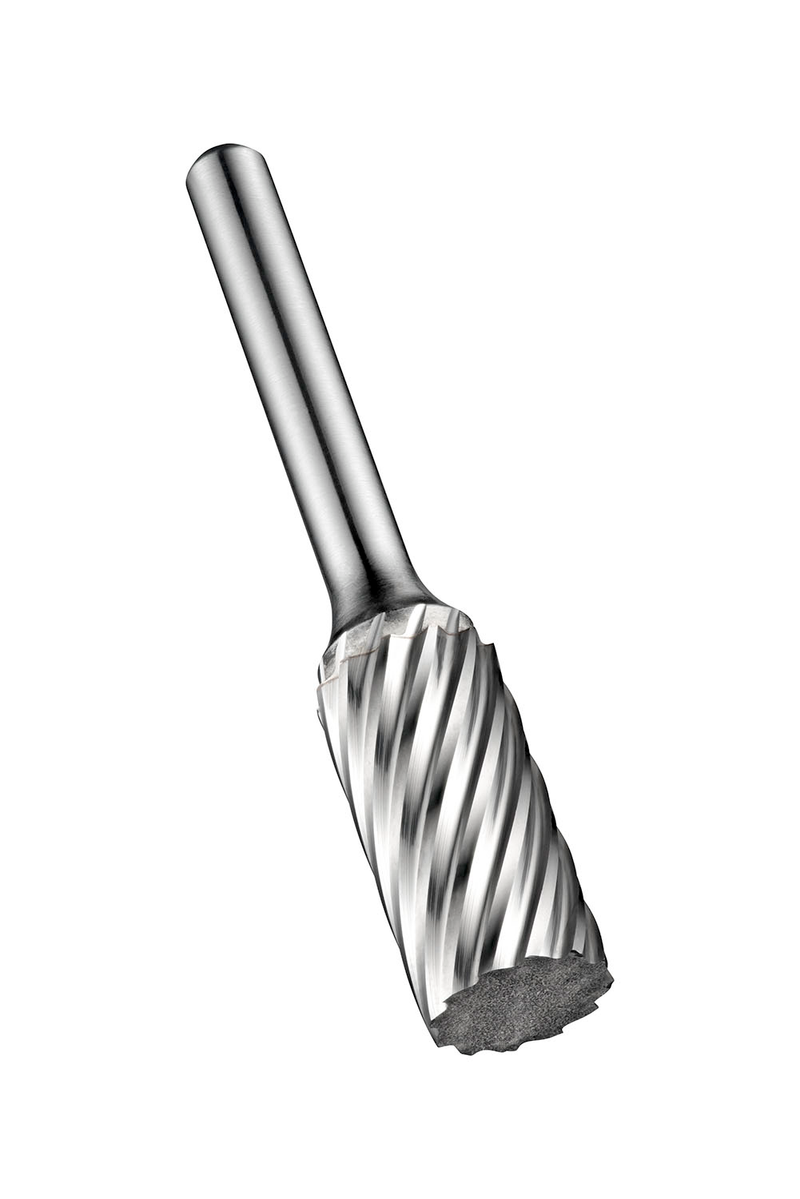

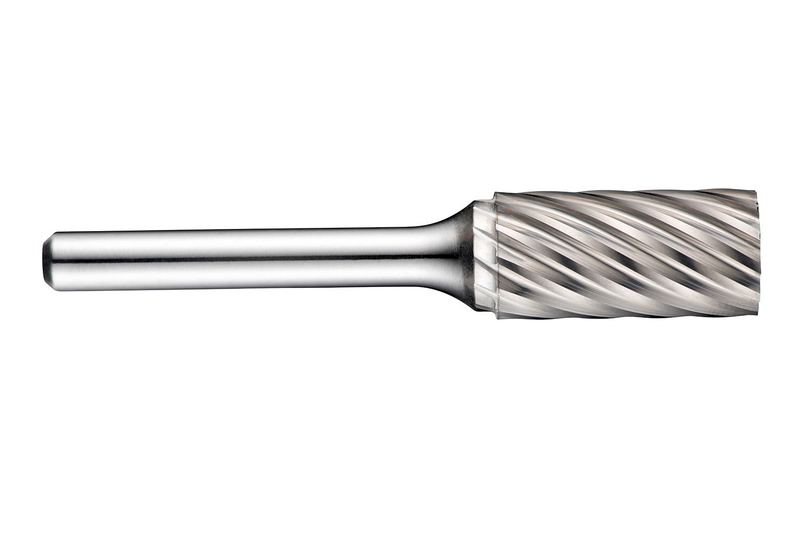

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 12,7 mm, longueur de coupe 25 mm, longueur totale 70 mm et queue 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, à denture simple VA avec arêtes moyennement espacées pour l'usinage de surfaces en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI)P60112,7X6,0
Product Name (ISO)P60112.7X6.0
GradeLumineux
Product Number7059507
Product FamilyP601

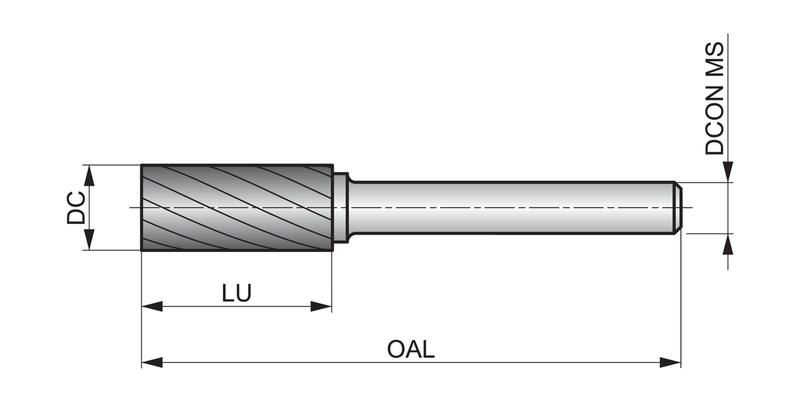

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059507
EAN7320760692837
File Type Download
P60112.7X6.0 — Line Drawing PDF Download
