P6053.0X3.0
P6053.0X3.0
P6053.0X3.0

P6053.0X3.0

UGC DOR7059508
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.40 CAD - $12.40 CAD
$12.40 CAD
$12.40 CAD - $12.40 CAD
$12.40 CAD

Vendu en lots de : 1

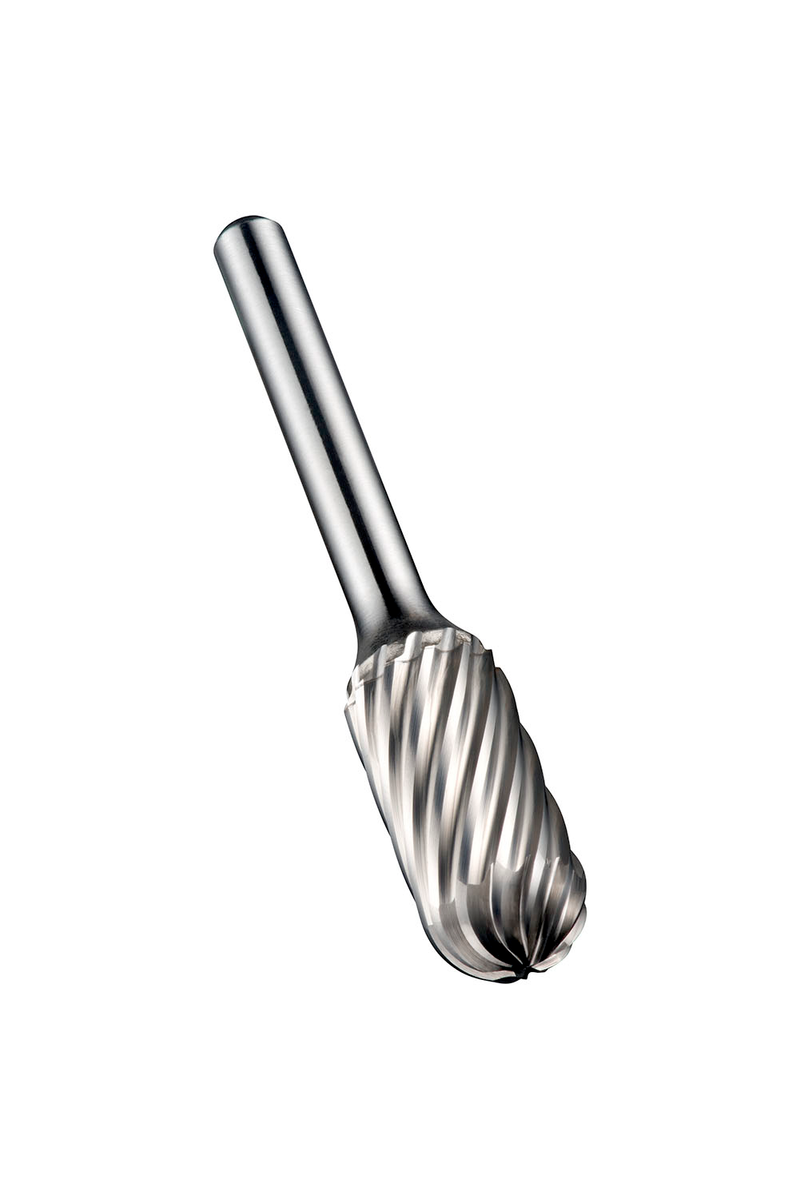

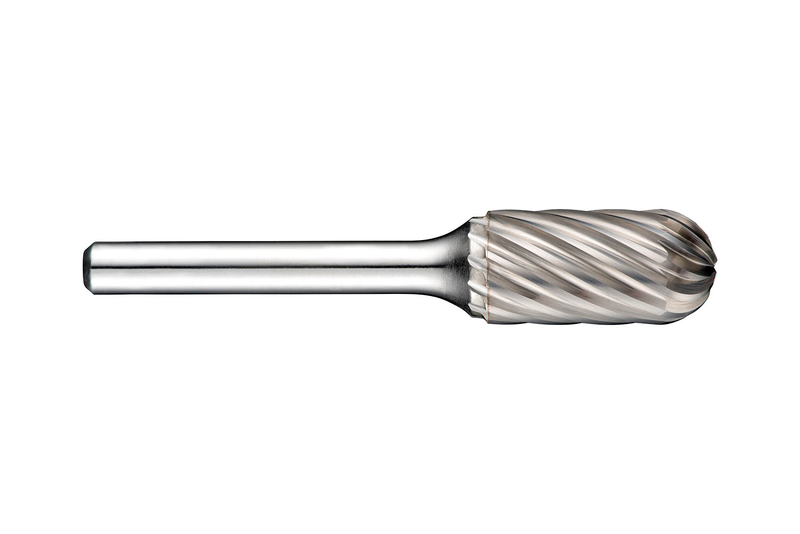

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 3 mm avec une longueur de coupe de 14 mm, une longueur totale de 38 mm et une queue de 3 mm, en carbure monobloc avec finition brillante, denture simple taille VA avec des arêtes moyennement espacées pour l'usinage des contours et des arcs circulaires dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6053.0X3.0
GradeLumineux
Product Number7059508
Product FamilyP605

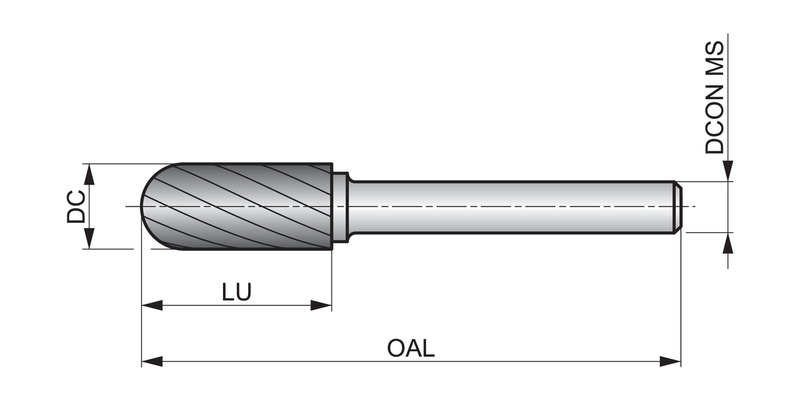

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059508
EAN7320760692844
File Type Download
P6053.0X3.0 — Line Drawing PDF Download
