P6056.3X3.0
P6056.3X3.0
P6056.3X3.0

P6056.3X3.0

UGC DOR7059510
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.37 CAD - $20.37 CAD
$20.37 CAD
$20.37 CAD - $20.37 CAD
$20.37 CAD

Vendu en lots de : 1

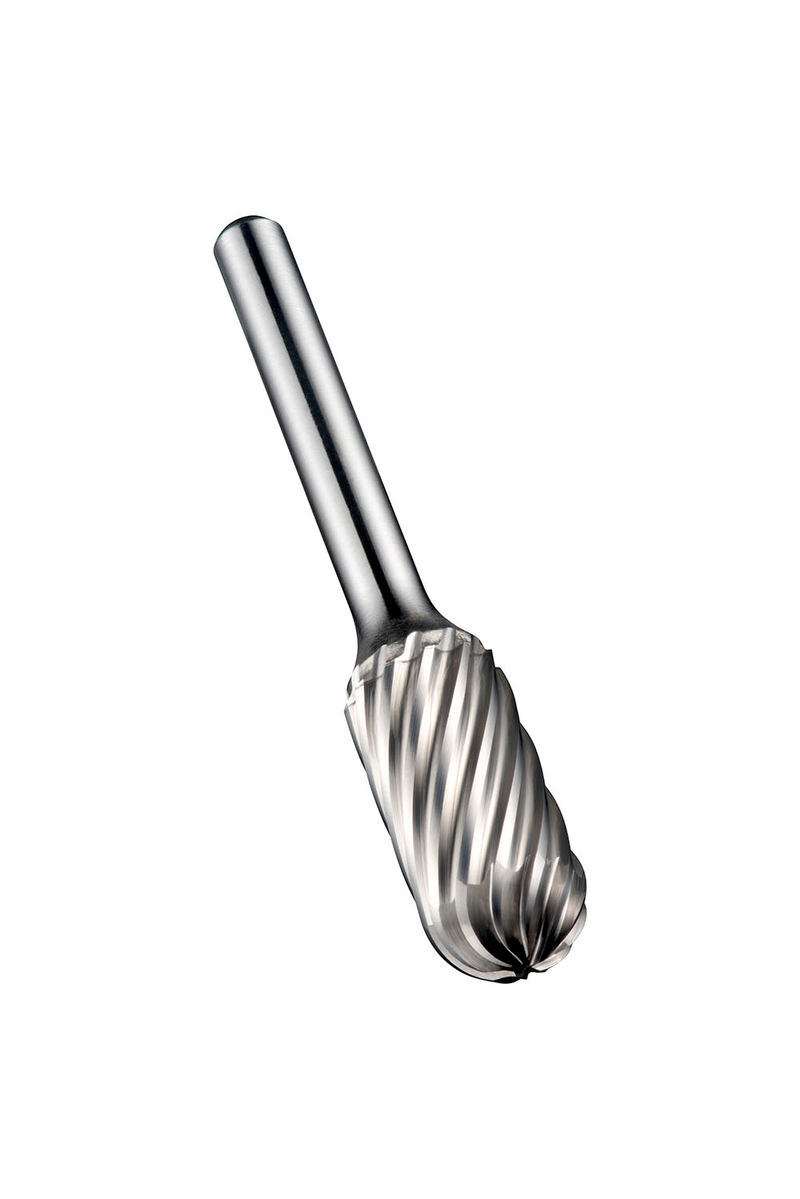

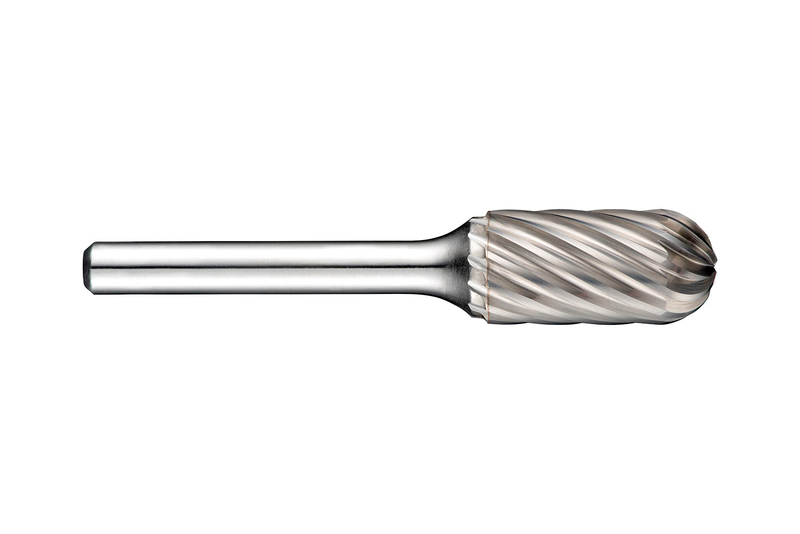

Fraise-lime cylindrique à nez sphérique (forme C), diamètre 6,3 mm avec une longueur de coupe de 12,7 mm, une longueur totale de 45 mm et une queue de 3 mm, avec pointe en carbure et queue en acier trempé et durci à finition brillante, style de cannelure simple VA avec arêtes moyennement espacées pour l'usinage de contours et d'arcs circulaires dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6056.3X3.0
GradeLumineux
Product Number7059510
Product FamilyP605

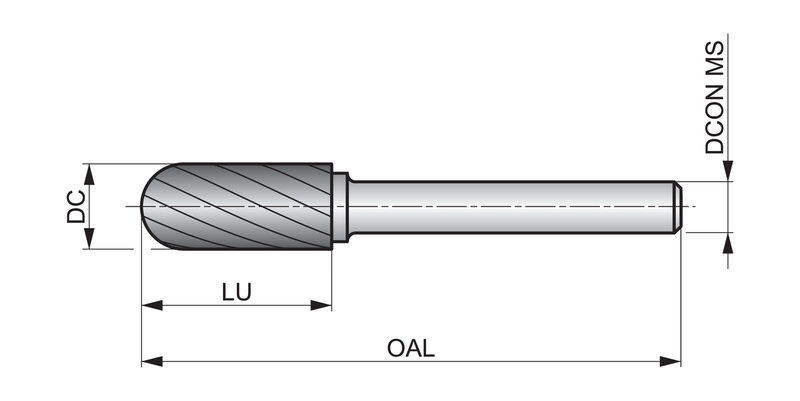

Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Usable Length — mm (LU)12.7 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059510
EAN7320760692868
File Type Download
P6056.3X3.0 — Line Drawing PDF Download
