P6059.6X6.0
P6059.6X6.0
P6059.6X6.0

P6059.6X6.0

UGC DOR7059512
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.26 CAD - $33.26 CAD
$33.26 CAD
$33.26 CAD - $33.26 CAD
$33.26 CAD

Vendu en lots de : 1

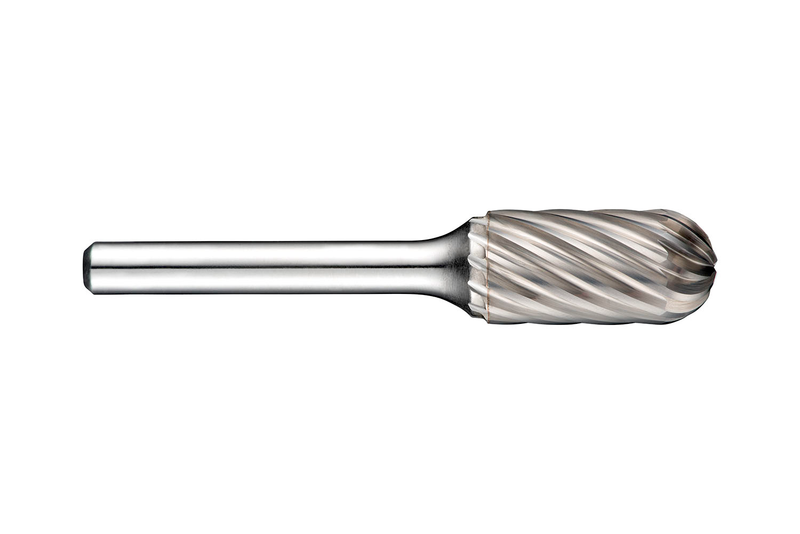

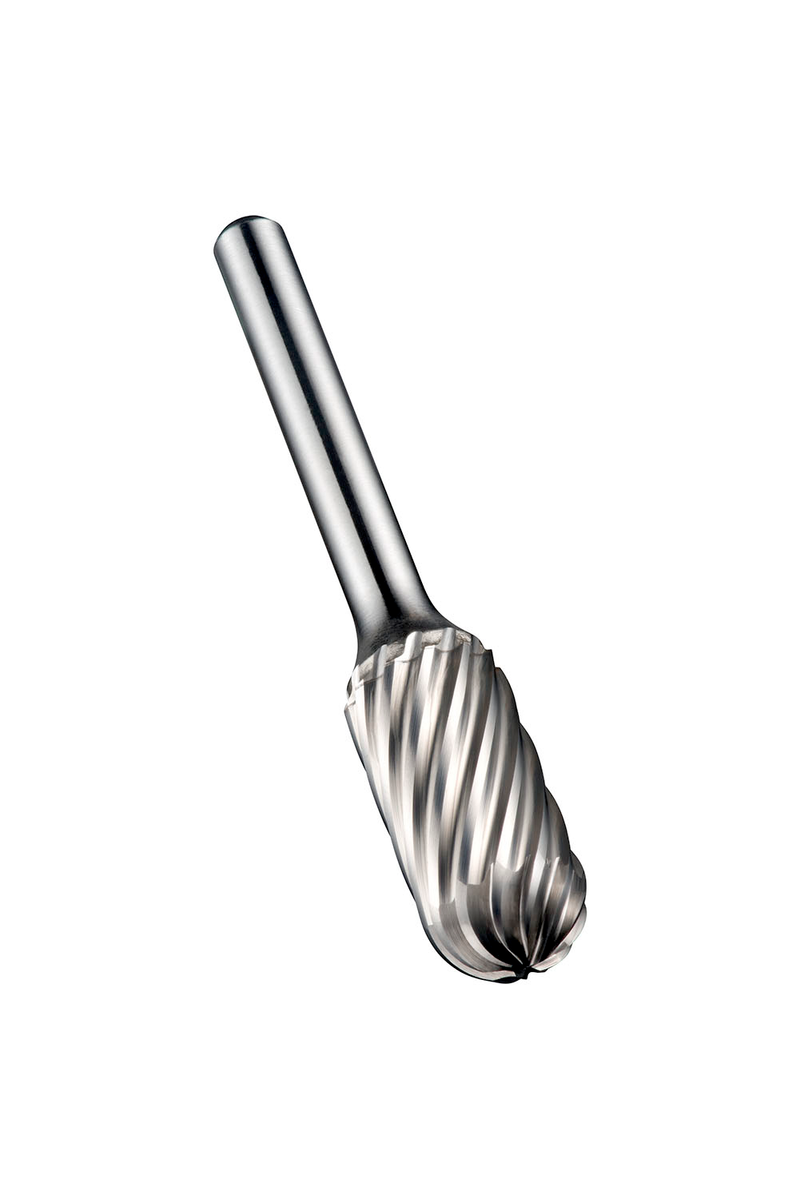

Lime rotative cylindrique à nez sphérique (forme C), diamètre 9,6 mm avec longueur de coupe de 19 mm, longueur totale de 64 mm et queue de 6 mm, à pointe en carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure simple VA avec bords espacés moyens pour l'usinage de contours et d'arcs circulaires dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6059.6X6.0
GradeLumineux
Product Number7059512
Product FamilyP605
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059512
EAN7320760692882
File Type Download

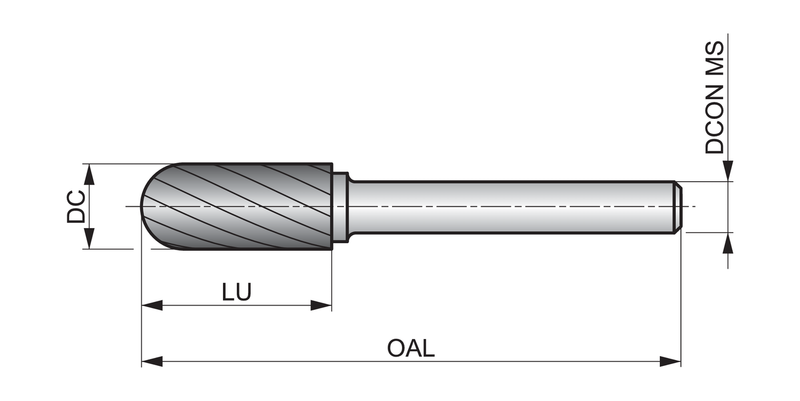

P6059.6X6.0 — Line Drawing PDF Download
