P60512,7X6,0
P60512,7X6,0
P60512,7X6,0

P60512,7X6,0

UGC DOR7059513
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.23 CAD - $52.23 CAD
$52.23 CAD
$52.23 CAD - $52.23 CAD
$52.23 CAD

Vendu en lots de : 1

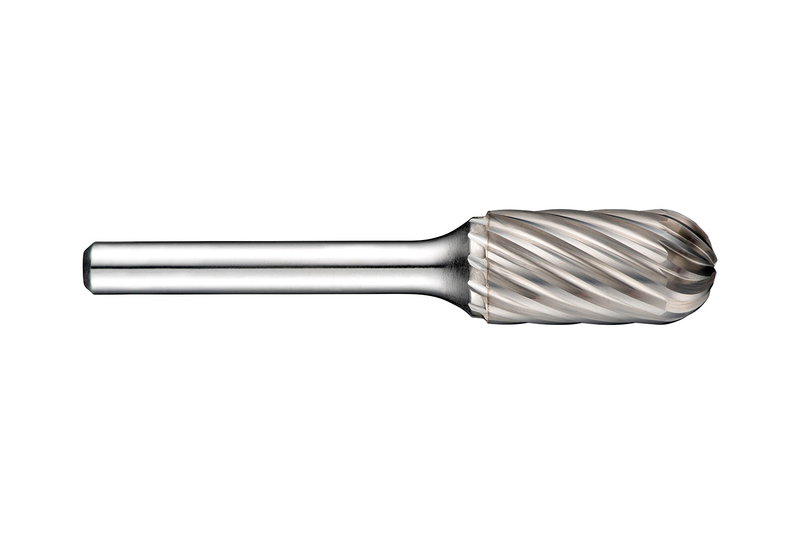

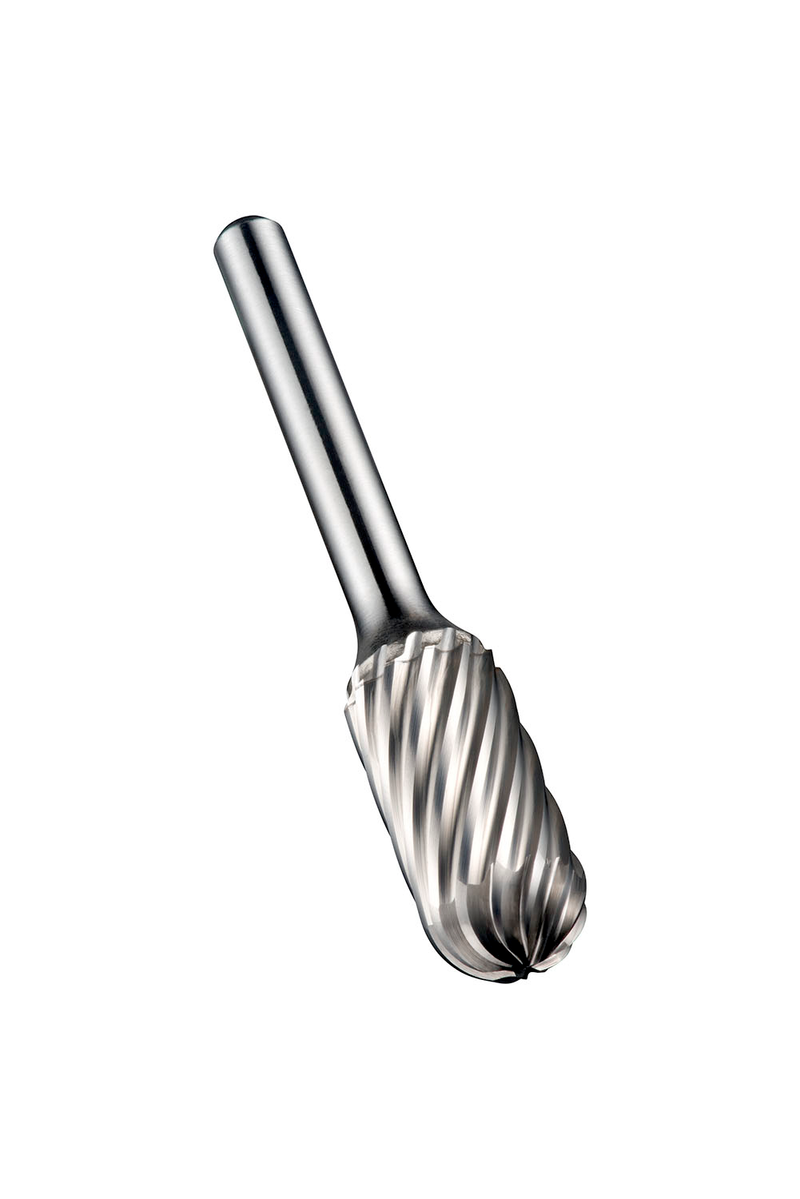

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 12,7 mm avec 25 mm de longueur de coupe, 70 mm de longueur totale et queue de 6 mm, à pointe en carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure VA simple taille avec bords espacés moyens pour l'usinage de contours et d'arcs circulaires en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P60512.7X6.0
GradeLumineux
Product Number7059513
Product FamilyP605

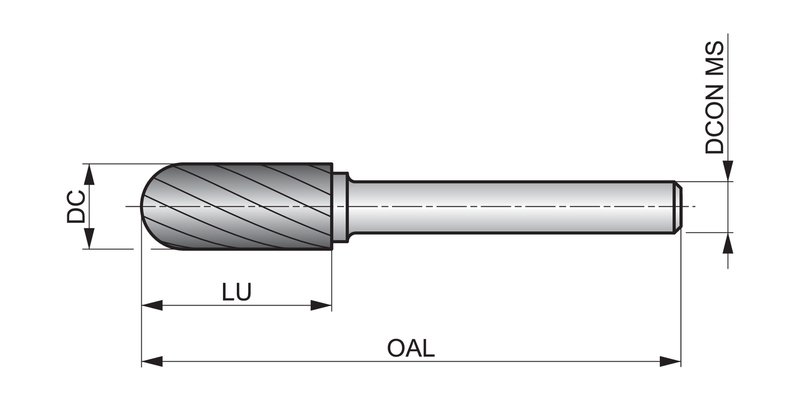

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059513
EAN7320760692899
File Type Download
P60512,7X6,0 — Line Drawing PDF Download
