P6076.0X6.0
P6076.0X6.0
P6076.0X6.0

P6076.0X6.0

UGC DOR7059515
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.74 CAD - $22.74 CAD
$22.74 CAD
$22.74 CAD - $22.74 CAD
$22.74 CAD

Vendu en lots de : 1

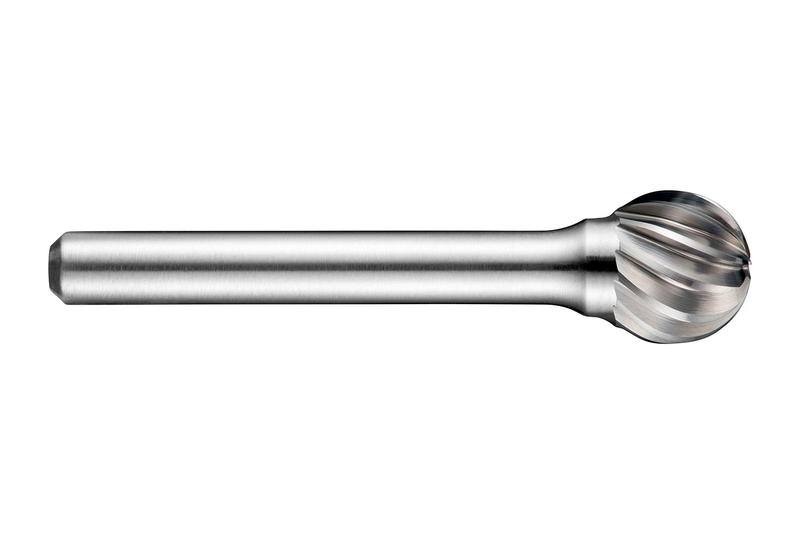

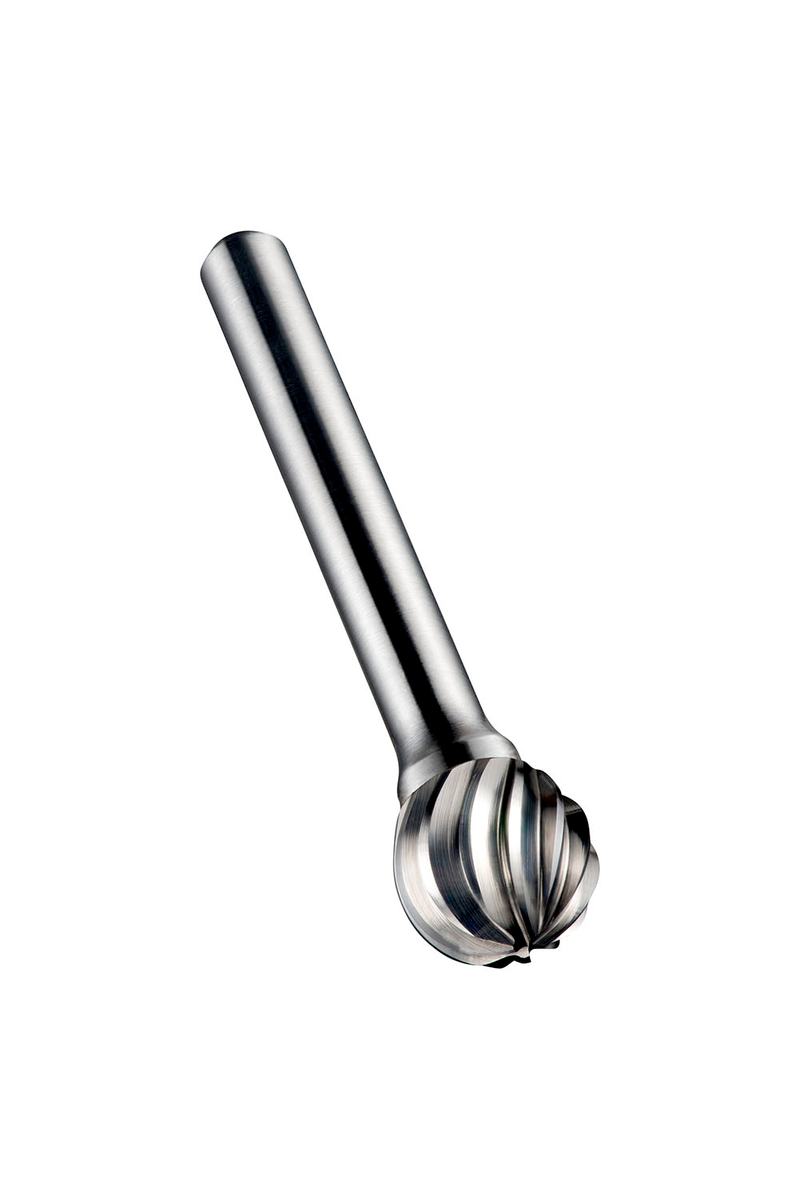

Fraise boule (forme D), diamètre 6 mm, longueur de coupe 4,7 mm, longueur totale 50 mm, queue 6 mm, carbure monobloc avec finition brillante, style de cannelure VA à coupe simple avec bords espacés moyens pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6076.0X6.0
GradeLumineux
Product Number7059515
Product FamilyP607
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)4.7 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059515
EAN7320760692912
File Type Download

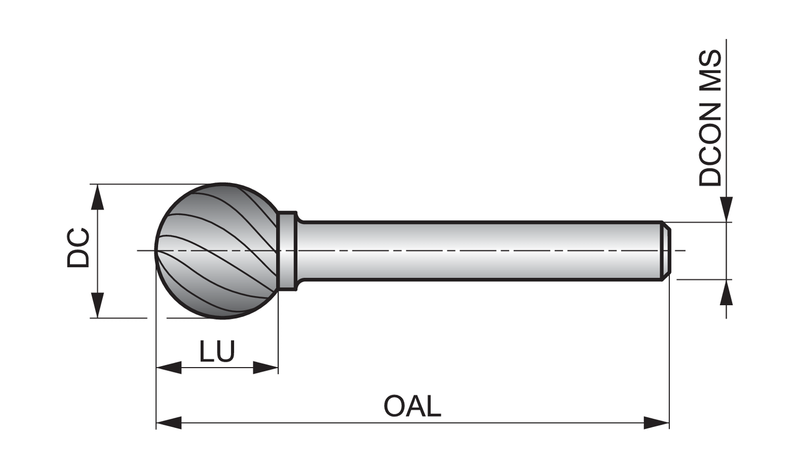

P6076.0X6.0 — Line Drawing PDF Download
