P6078.0X6.0
P6078.0X6.0
P6078.0X6.0

P6078.0X6.0

UGC DOR7059517
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.43 CAD - $24.43 CAD
$24.43 CAD
$24.43 CAD - $24.43 CAD
$24.43 CAD

Vendu en lots de : 1

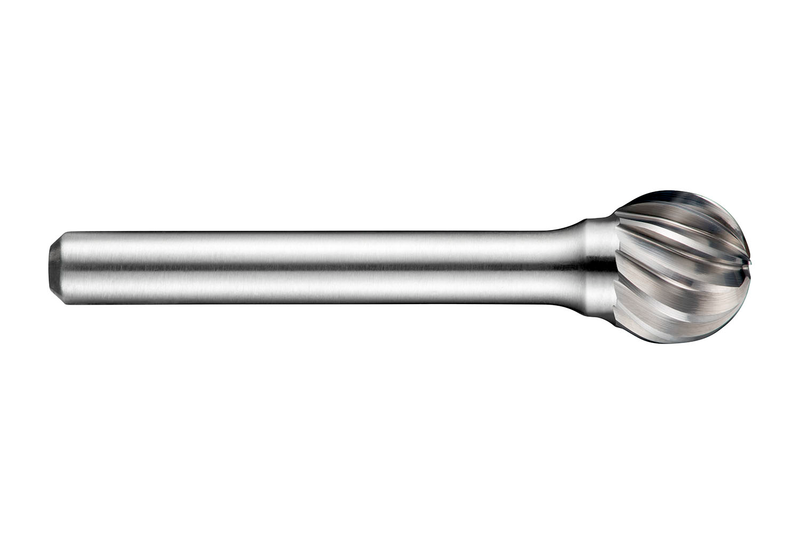

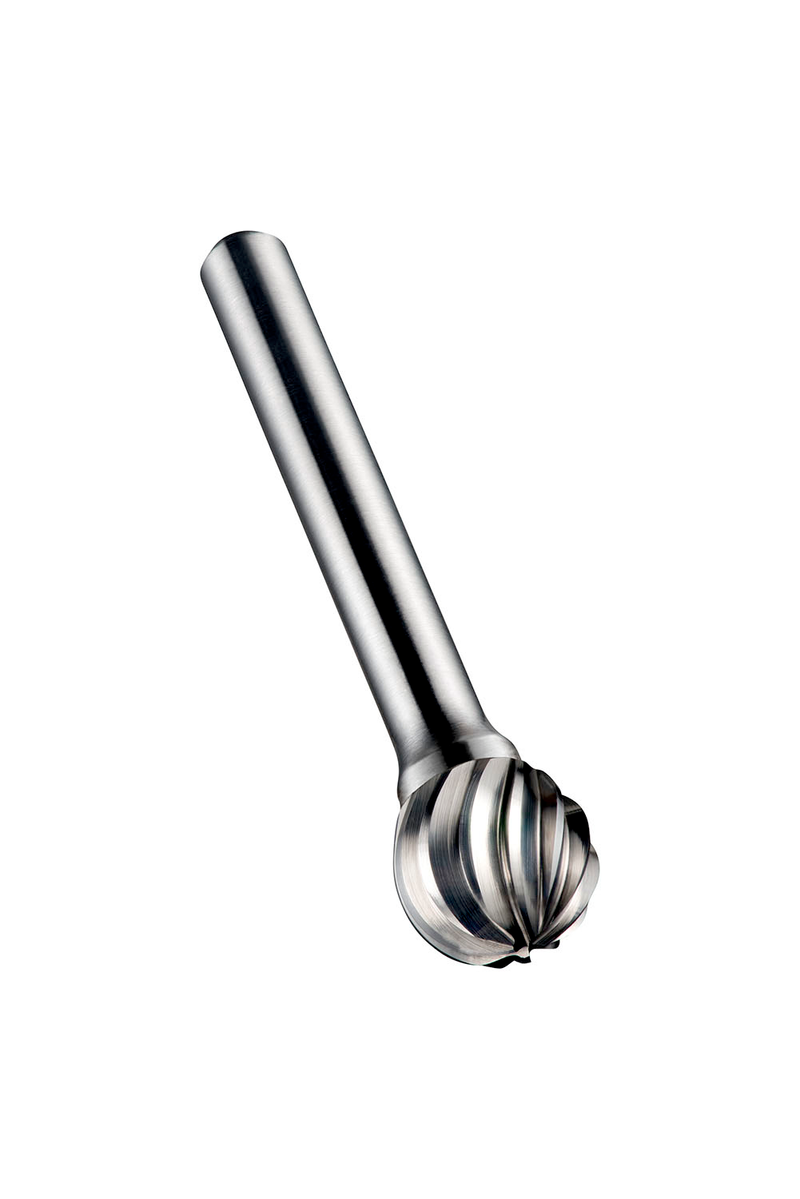

Fraise boule (forme D), diamètre 8 mm avec longueur de coupe 6 mm, longueur totale 52 mm et queue 6 mm, pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure simple taille VA avec arêtes espacées moyennes pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6078.0X6.0
GradeLumineux
Product Number7059517
Product FamilyP607

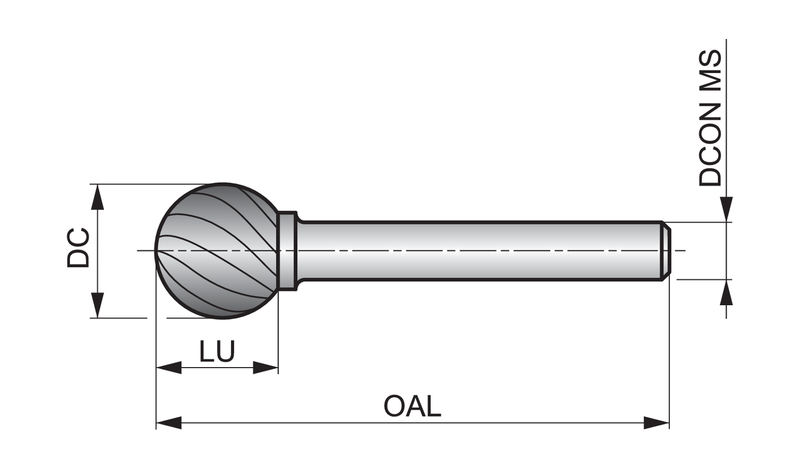

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Usable Length — mm (LU)6.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059517
EAN7320760692936
File Type Download
P6078.0X6.0 — Line Drawing PDF Download
