P6079.6X6.0
P6079.6X6.0
P6079.6X6.0

P6079.6X6.0

UGC DOR7059518
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.29 CAD - $27.29 CAD
$27.29 CAD
$27.29 CAD - $27.29 CAD
$27.29 CAD

Vendu en lots de : 1

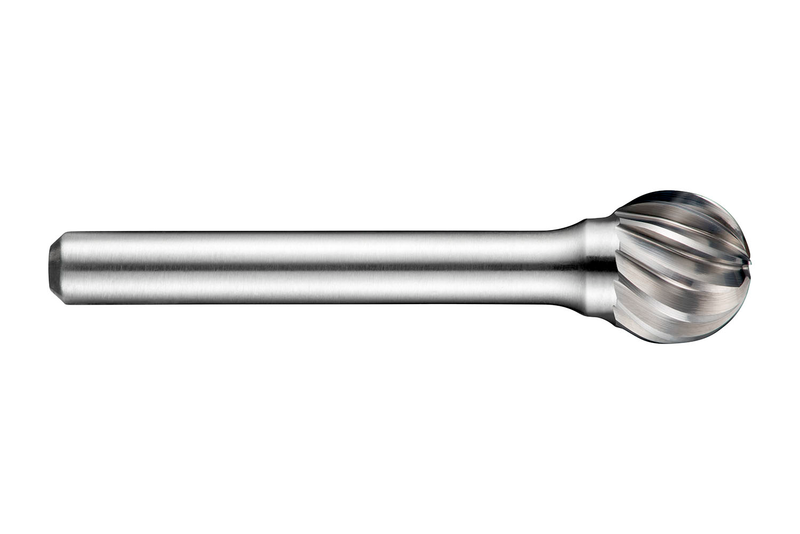

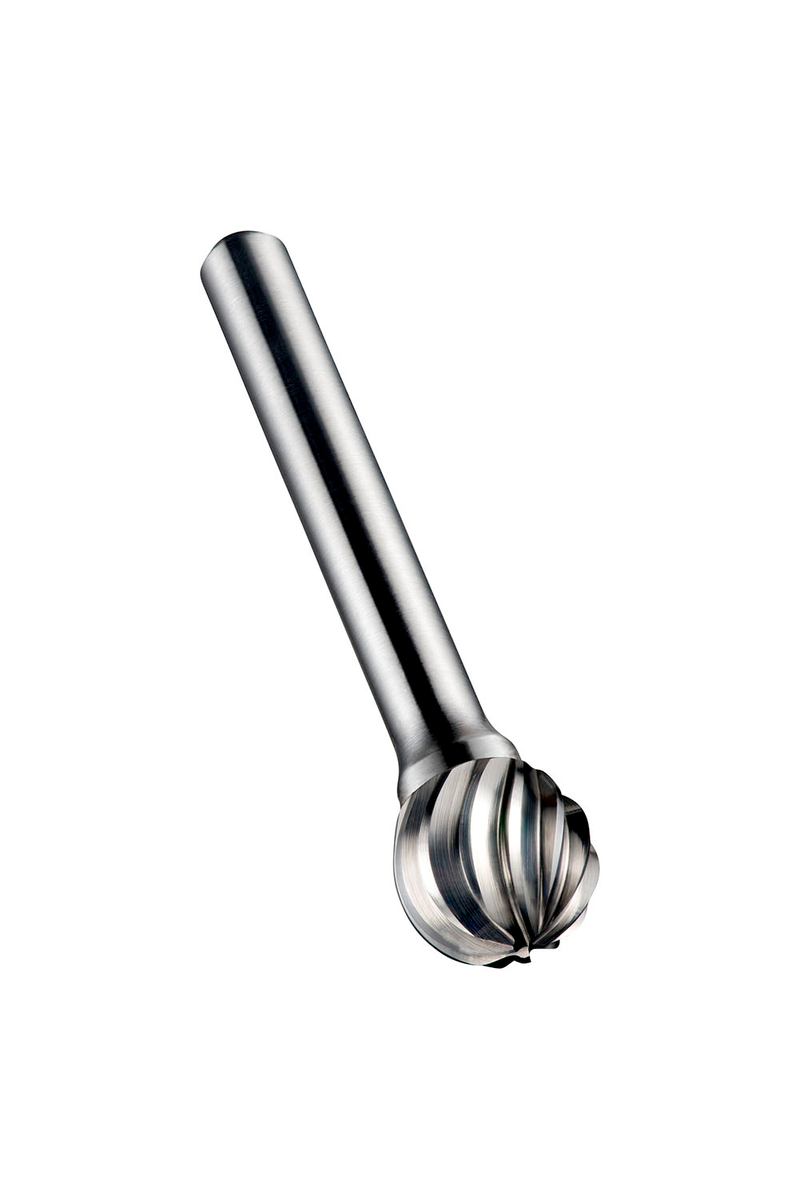

Fraise boule (forme D), diamètre 9,6 mm avec 8 mm de longueur de coupe, 54 mm de longueur totale et queue de 6 mm, à pointe en carbure avec queue en acier trempé et durci et finition brillante, style de cannelure simple VA avec arêtes moyennement espacées pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6079.6X6.0
GradeLumineux
Product Number7059518
Product FamilyP607

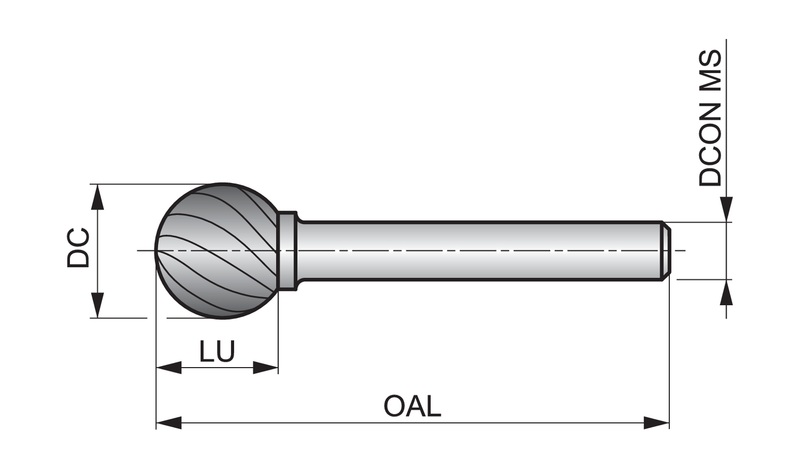

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059518
EAN7320760692943
File Type Download
P6079.6X6.0 — Line Drawing PDF Download
