P6098.0X6.0
P6098.0X6.0
P6098.0X6.0

P6098.0X6.0

UGC DOR7059520
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.26 CAD - $39.26 CAD
$39.26 CAD
$39.26 CAD - $39.26 CAD
$39.26 CAD

Vendu en lots de : 1

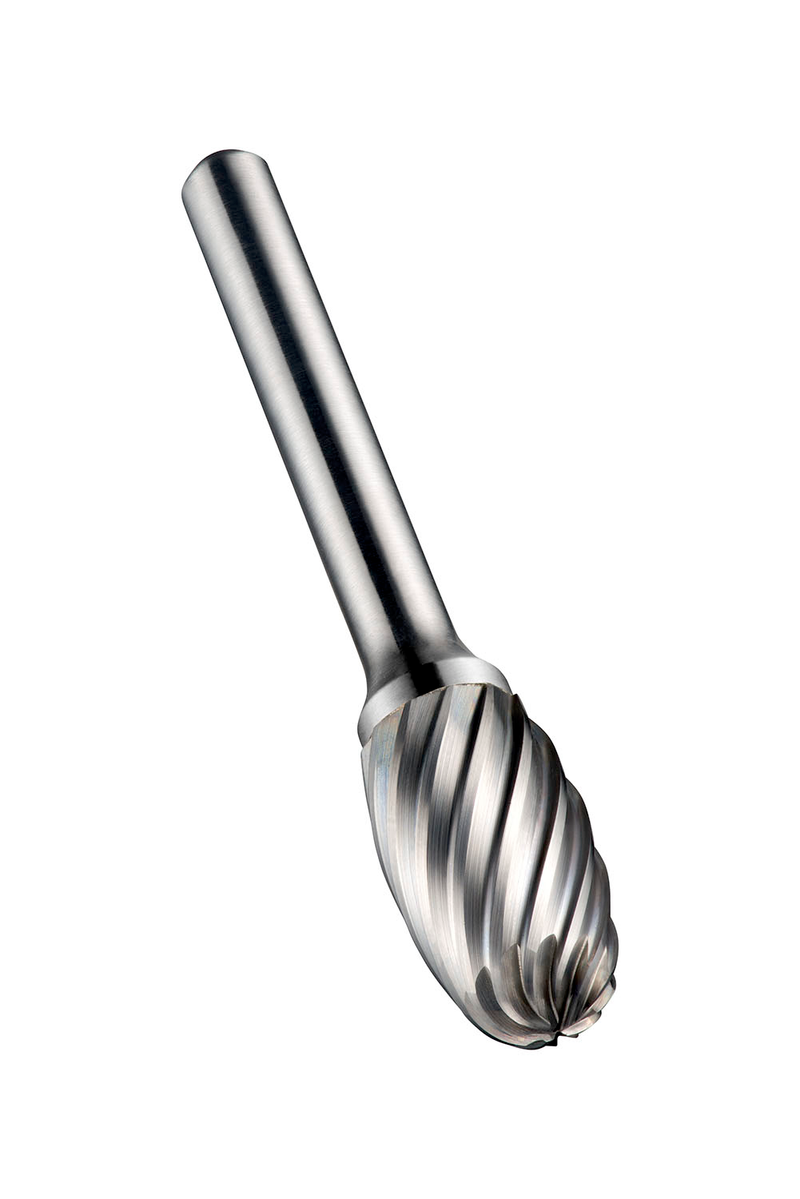

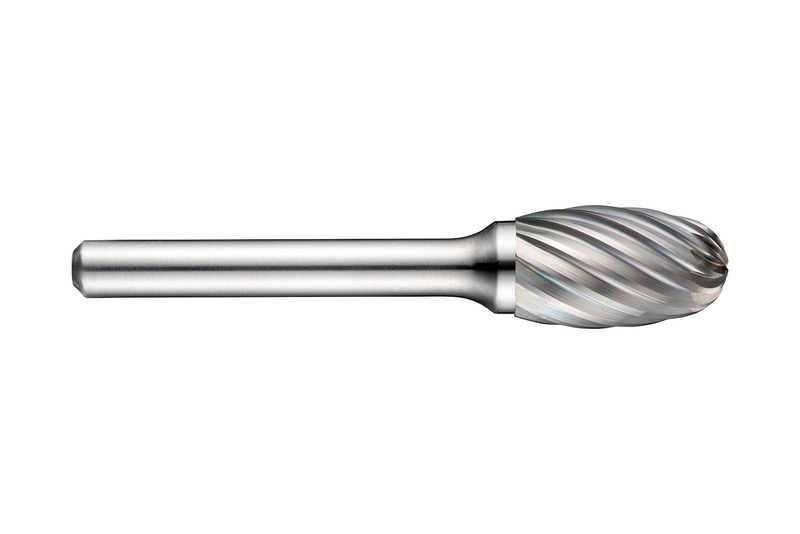

Fraise ovale (forme E), diamètre 8 mm avec longueur de coupe de 15 mm, longueur totale de 60 mm et tige de 6 mm, à pastilles de carbure avec tige en acier trempé et revenu et finition brillante, à une seule taille de type VA avec arêtes moyennement espacées pour le contournage de bords arrondis dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6098.0X6.0
GradeLumineux
Product Number7059520
Product FamilyP609

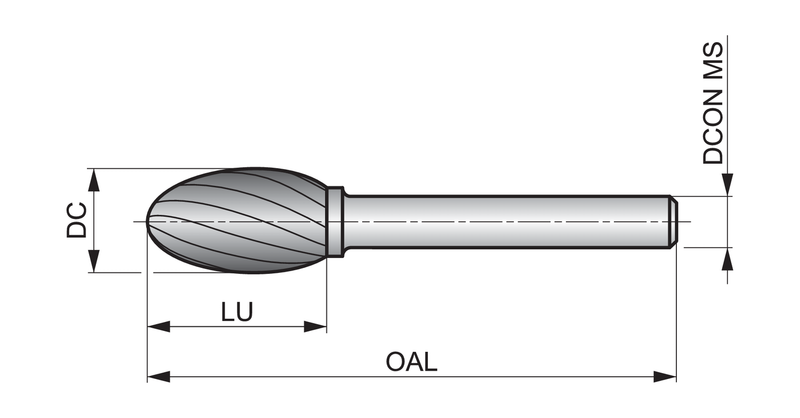

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)15.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059520
EAN7320760692967
File Type Download
P6098.0X6.0 — Line Drawing PDF Download
