UGC DOR7059521
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.26 CAD - $33.26 CAD
$33.26 CAD
$33.26 CAD - $33.26 CAD
$33.26 CAD

Vendu en lots de : 1

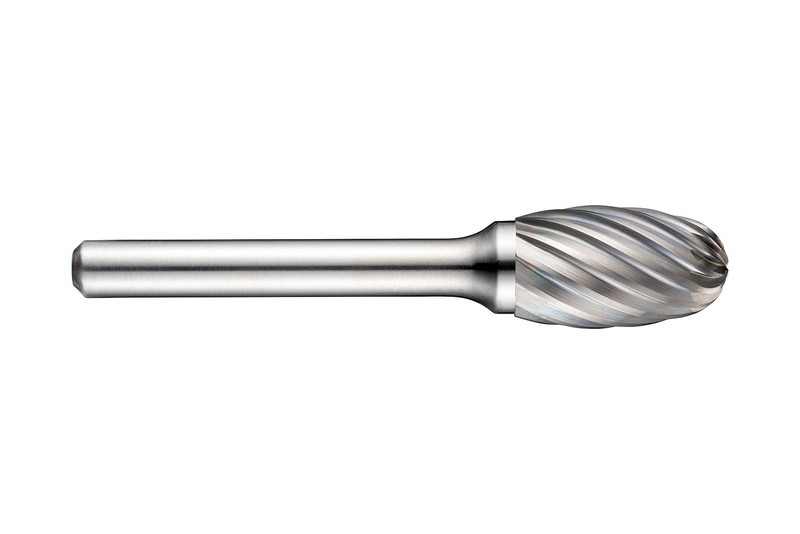

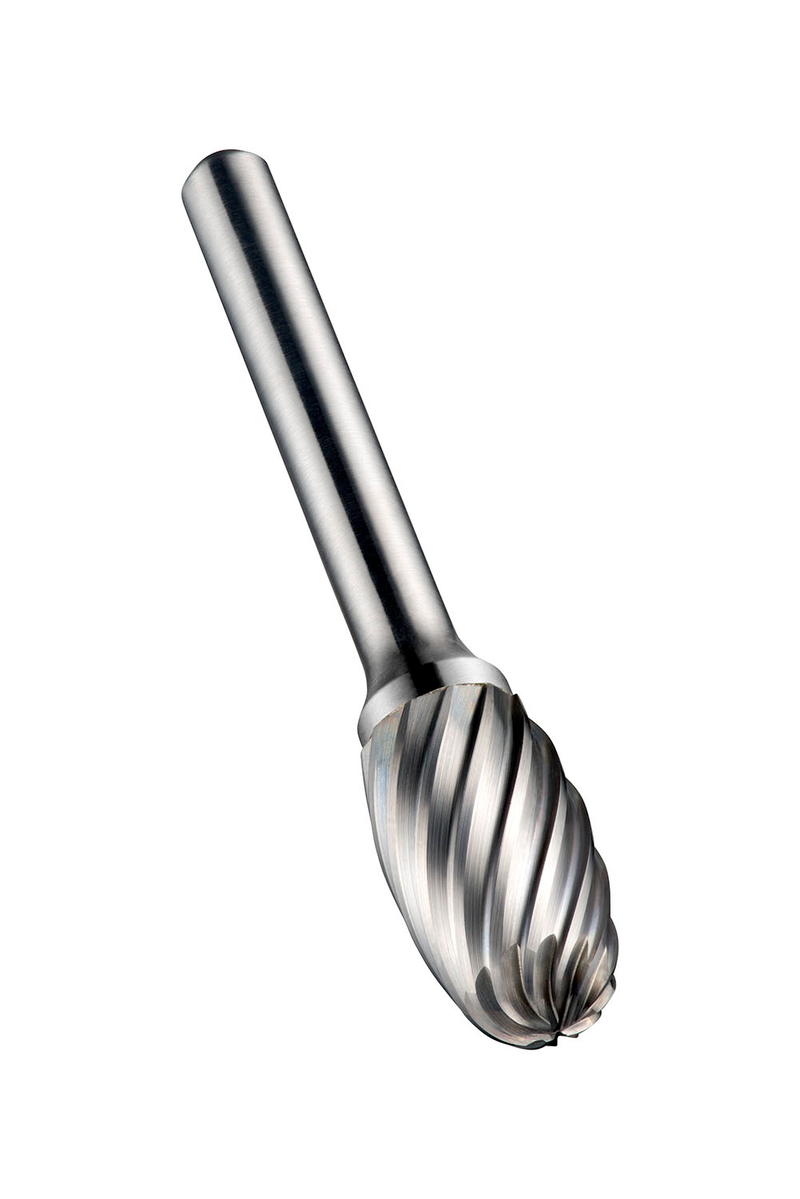

Fraise ovale (forme E), diamètre 9,6 mm avec 16 mm de longueur de coupe, 60 mm de longueur totale et queue de 6 mm, à plaquettes carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à taille simple VA avec arêtes espacées moyennes pour le contournage d'arêtes rondes dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6099.6X6.0
GradeLumineux
Product Number7059521
Product FamilyP609
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)16.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059521
EAN7320760692974
File Type Download

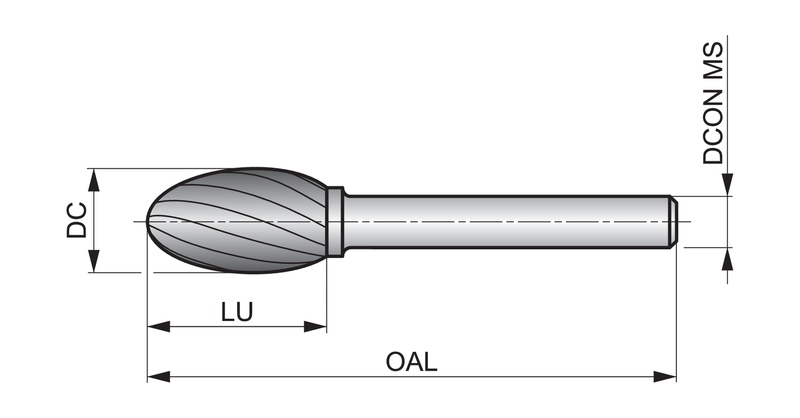

P6099.6X6.0 — Line Drawing PDF Download
