P6116.0X6.0
P6116.0X6.0
P6116.0X6.0

P6116.0X6.0

UGC DOR7059524
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.80 CAD - $25.80 CAD
$25.80 CAD
$25.80 CAD - $25.80 CAD
$25.80 CAD

Vendu en lots de : 1

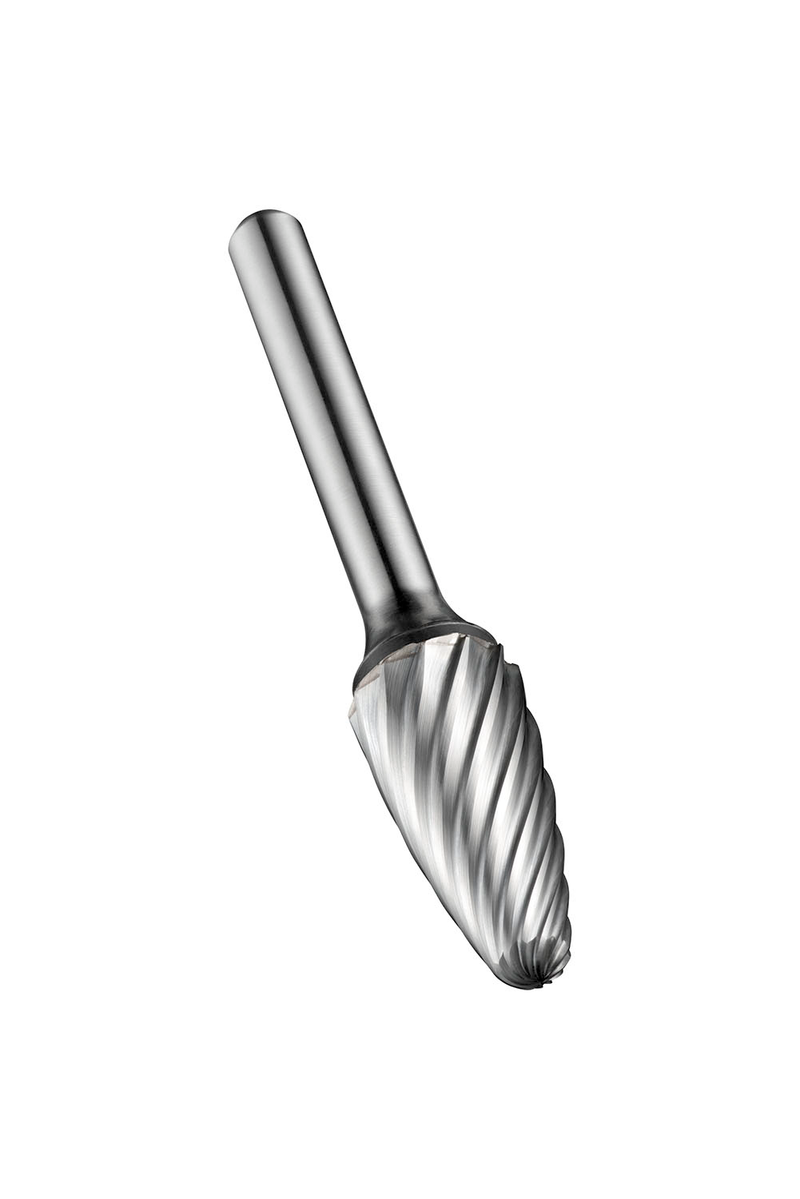

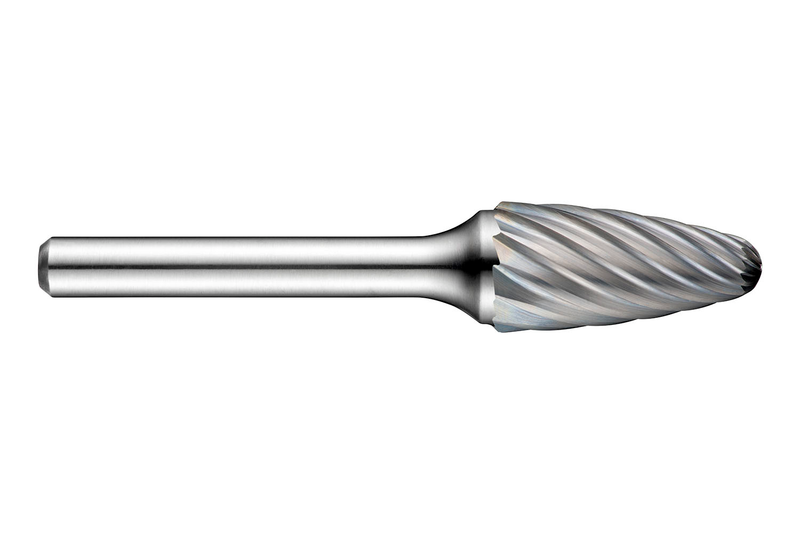

Fraise-lime ronde (forme F) de 6 mm de diamètre, longueur de coupe 18 mm, longueur totale 50 mm, queue 6 mm, carbure monobloc, finition brillante, style de cannelure simple VA avec arêtes espacées pour le contournage multi-angle, l'arrondi des bords et la coupe dans les zones difficiles d'accès de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6116.0X6.0
GradeLumineux
Product Number7059524
Product FamilyP611

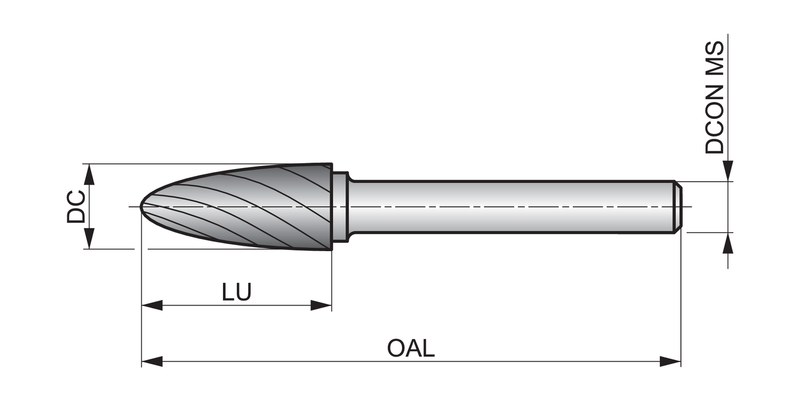

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059524
EAN7320760693001
File Type Download
P6116.0X6.0 — Line Drawing PDF Download
