P6116.3X3.0
P6116.3X3.0
P6116.3X3.0

P6116.3X3.0

UGC DOR7059525
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.37 CAD - $20.37 CAD
$20.37 CAD
$20.37 CAD - $20.37 CAD
$20.37 CAD

Vendu en lots de : 1

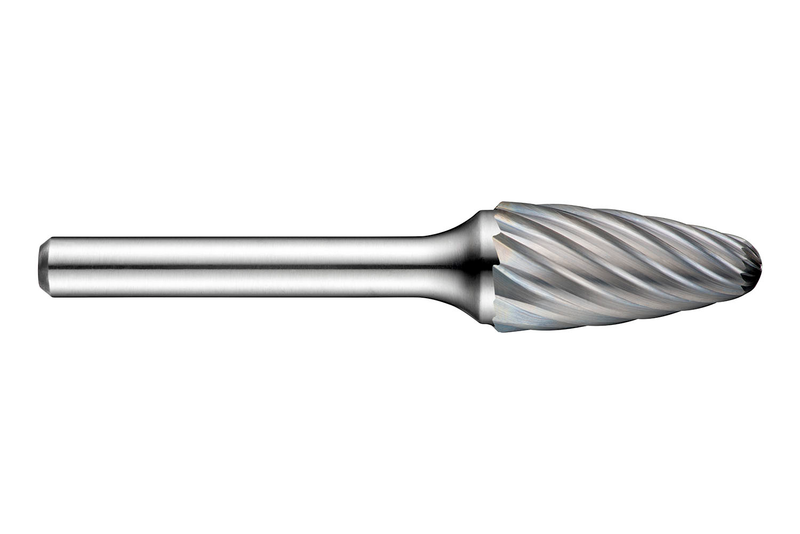

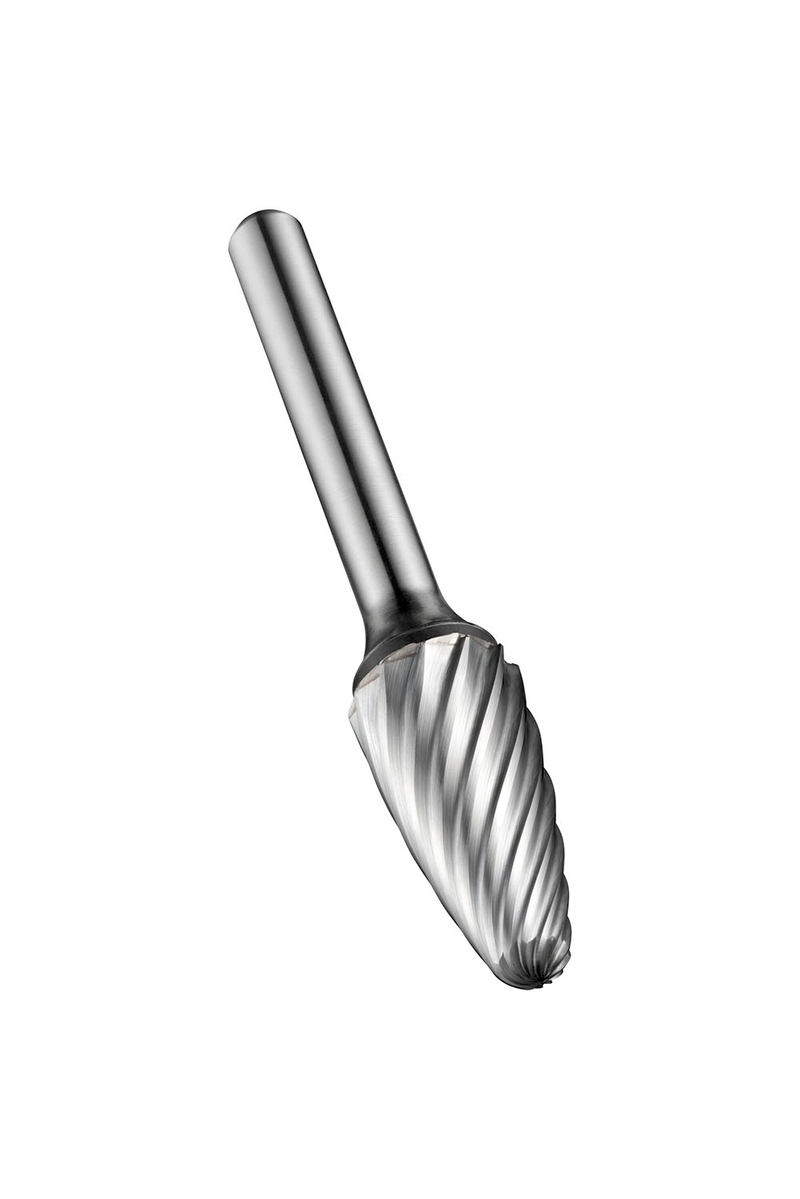

Fraise-lime rotative à bout arrondi (forme F), diamètre 6,3mm avec une longueur de coupe de 12,7mm, longueur totale de 45mm et queue de 3mm, avec pointe en carbure et queue en acier trempé et durci, finition brillante, goujure unique VA avec arêtes moyennement espacées pour le contournage multi-angle, l'arrondissement des bords et la coupe dans les zones difficiles d'accès de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6116.3X3.0
GradeLumineux
Product Number7059525
Product FamilyP611

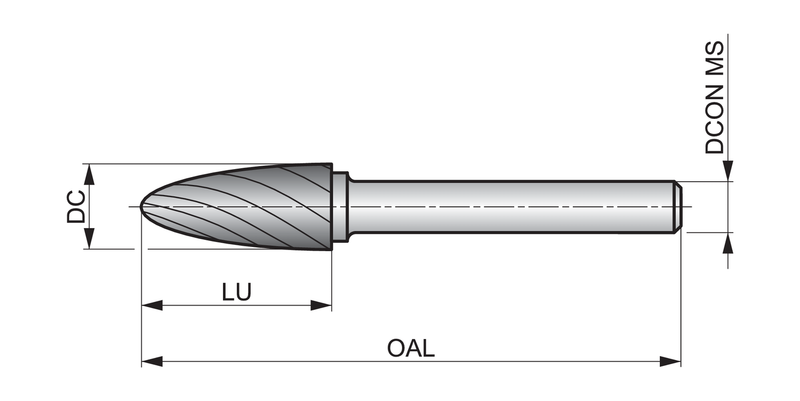

Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Usable Length — mm (LU)12.7 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059525
EAN7320760693018
File Type Download
P6116.3X3.0 — Line Drawing PDF Download
