P6139.6X6.0
P6139.6X6.0
P6139.6X6.0

P6139.6X6.0

UGC DOR7059531
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.80 CAD - $44.80 CAD
$44.80 CAD
$44.80 CAD - $44.80 CAD
$44.80 CAD

Vendu en lots de : 1

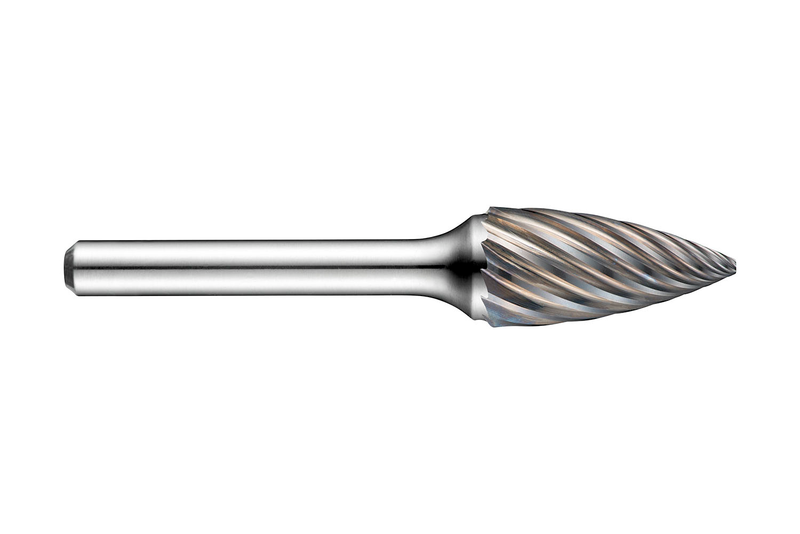

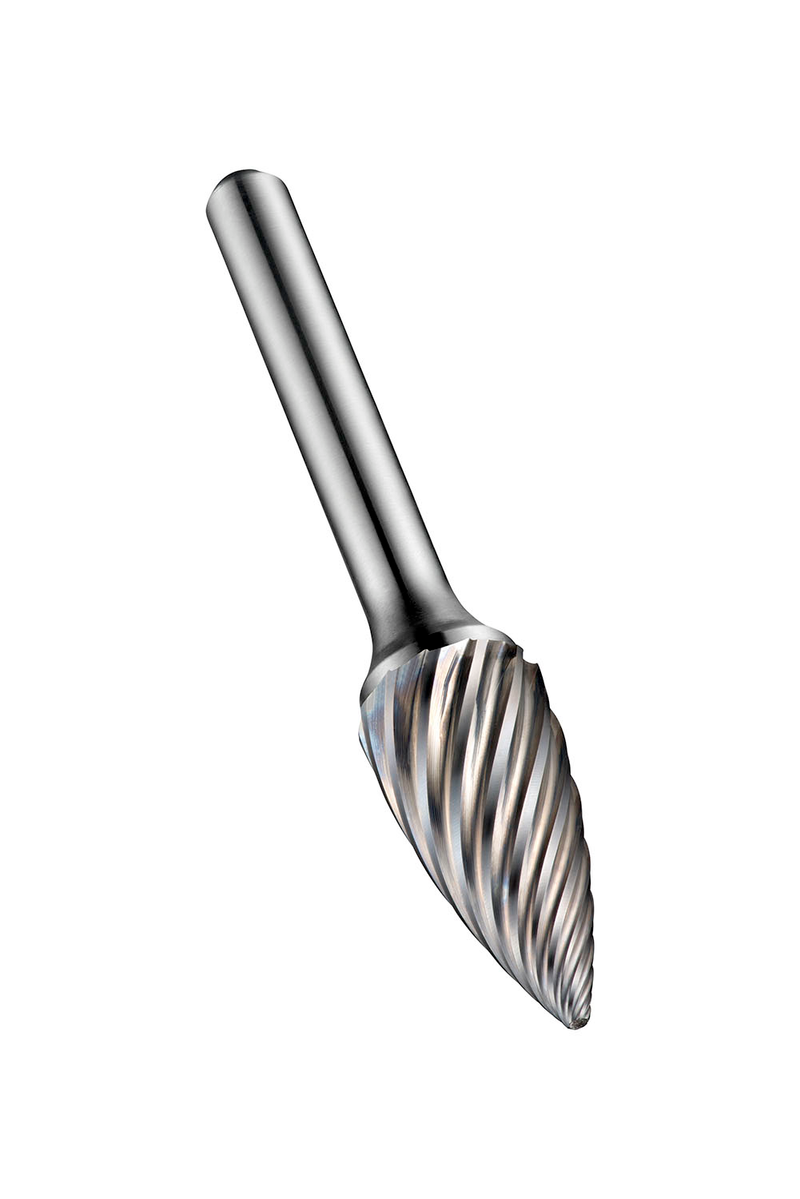

Fraise arbre pointu (forme G), diamètre 9,6 mm avec 19 mm de longueur de coupe, 64 mm de longueur totale et 6 mm de queue, à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure simple taille VA avec arêtes espacées moyennes pour le contournage multi-angle et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6139.6X6.0
GradeLumineux
Product Number7059531
Product FamilyP613

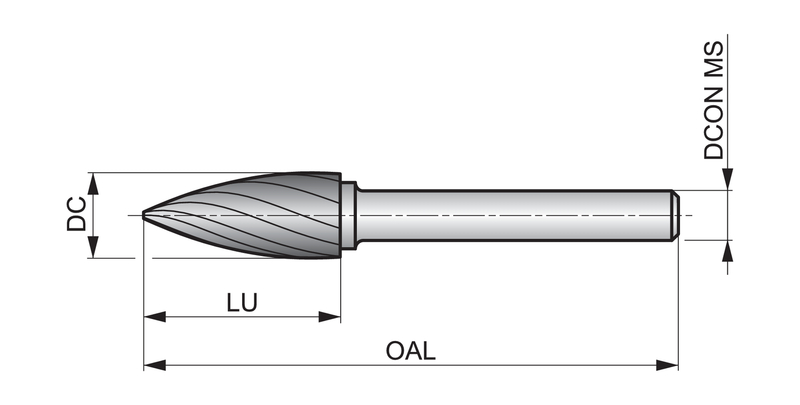

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059531
EAN7320760693070
File Type Download
P6139.6X6.0 — Line Drawing PDF Download
