P6158.0X6.0
P6158.0X6.0
P6158.0X6.0

P6158.0X6.0

UGC DOR7059533
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.11 CAD - $34.11 CAD
$34.11 CAD
$34.11 CAD - $34.11 CAD
$34.11 CAD

Vendu en lots de : 1

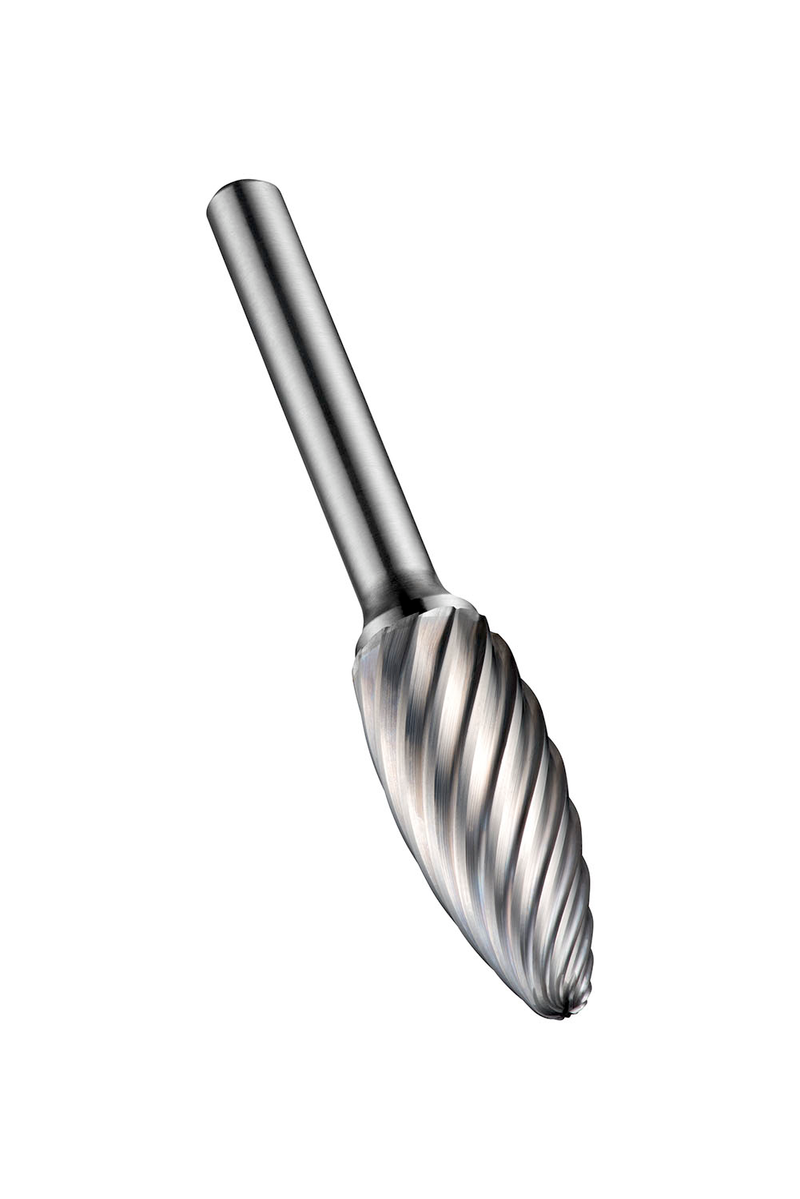

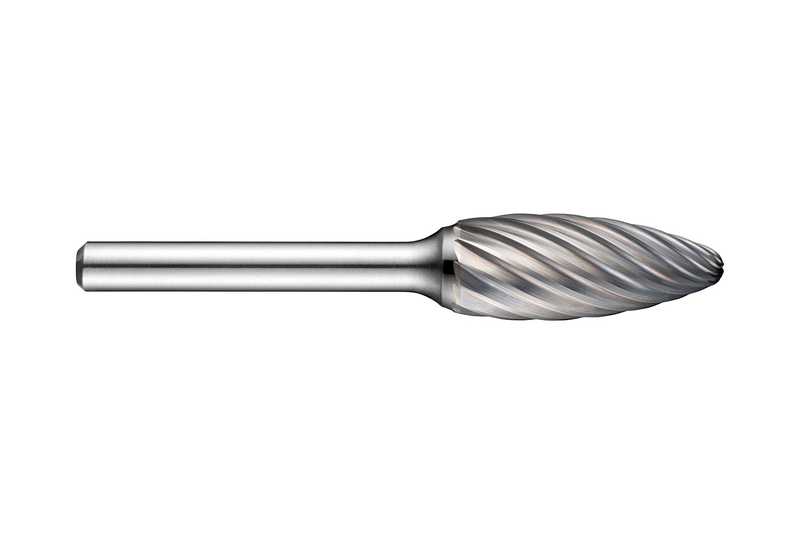

Fraise flamme (forme H), diamètre 8mm avec une longueur de coupe de 19mm, longueur totale de 64mm et queue de 6mm, pointe carbure avec queue en acier trempé et durci et finition brillante, style de cannelure simple taille VA avec arêtes moyennement espacées pour le contournage de bords arrondis et la préparation de soudures dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6158.0X6.0
GradeLumineux
Product Number7059533
Product FamilyP615

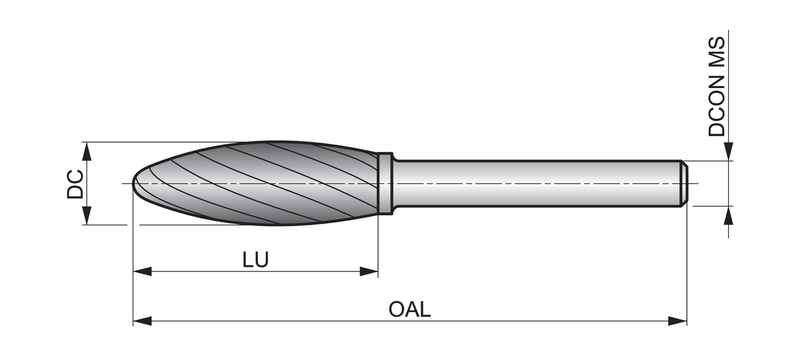

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059533
EAN7320760693094
File Type Download
P6158.0X6.0 — Line Drawing PDF Download
