P7016.0X6.0
P7016.0X6.0
P7016.0X6.0

P7016.0X6.0

UGC DOR7059539
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.40 CAD - $19.40 CAD
$19.40 CAD
$19.40 CAD - $19.40 CAD
$19.40 CAD

Vendu en lots de : 1

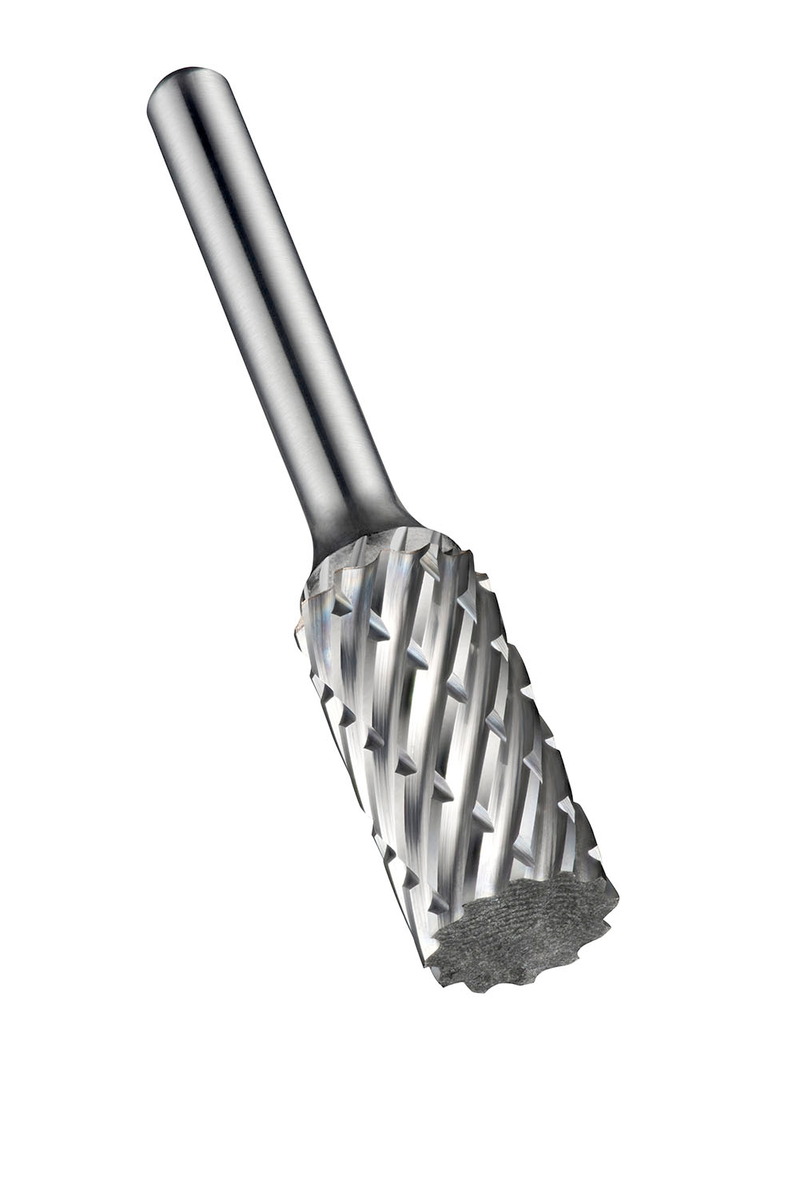

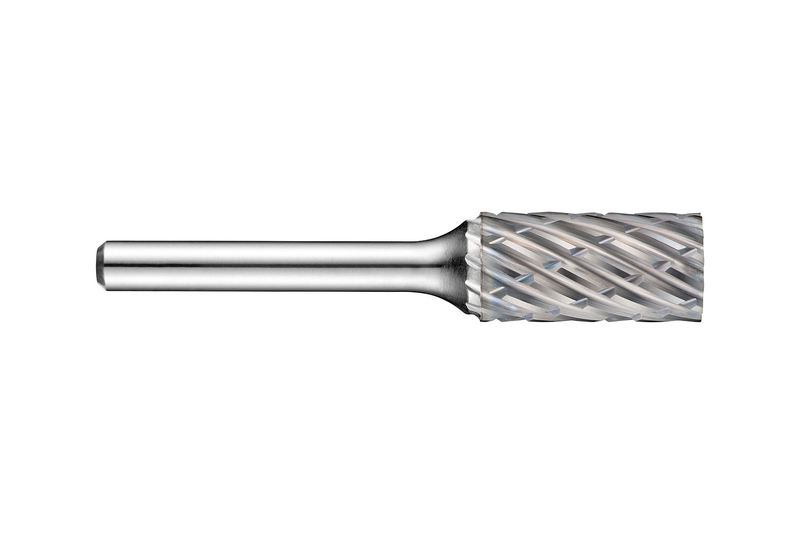

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 6mm, longueur de coupe 18mm, longueur totale 50mm, queue 6mm, carbure monobloc finition brillante, taille simple ST avec brise-copeaux et arêtes espacées moyennement pour usinage de surfaces dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P7016.0X6.0
GradeLumineux
Product Number7059539
Product FamilyP701
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059539
EAN7320760693155
File Type Download
P7016.0X6.0 — Line Drawing PDF Download
