P70112.7X6.0
P70112.7X6.0
P70112.7X6.0

P70112.7X6.0

UGC DOR7059542
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.74 CAD - $42.74 CAD
$42.74 CAD
$42.74 CAD - $42.74 CAD
$42.74 CAD

Vendu en lots de : 1

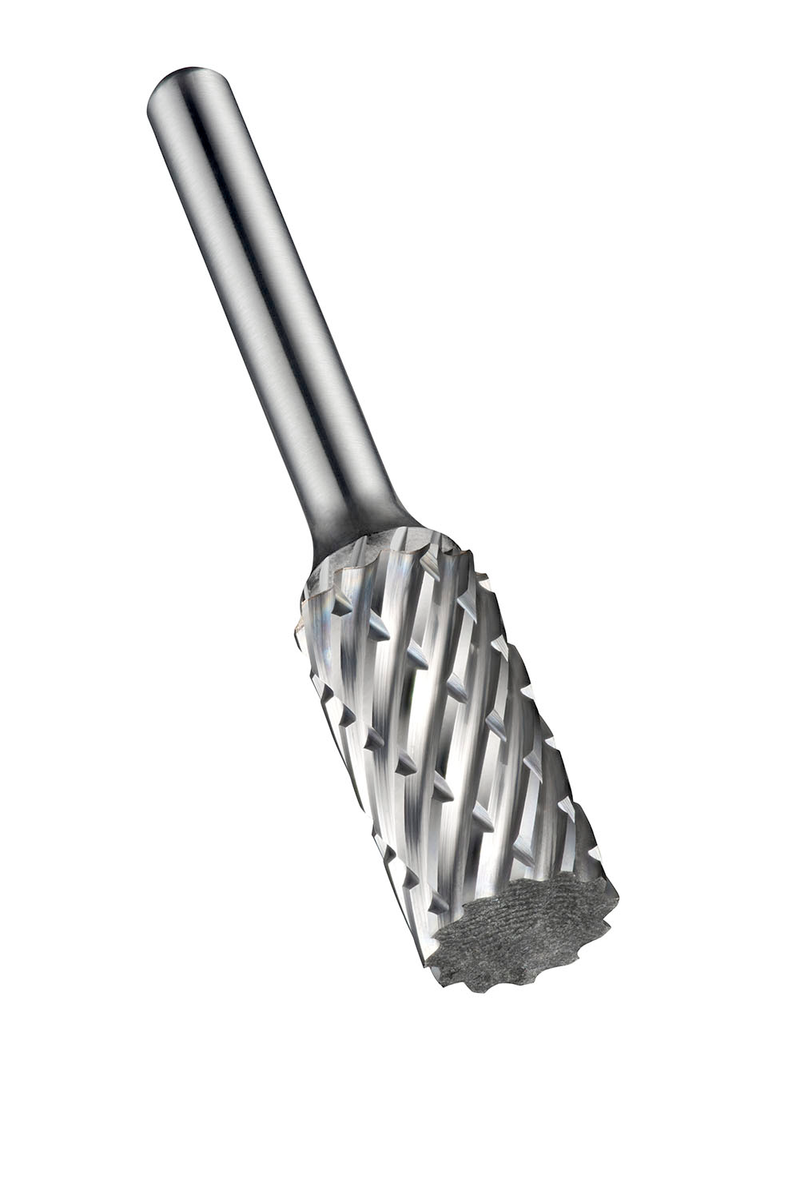

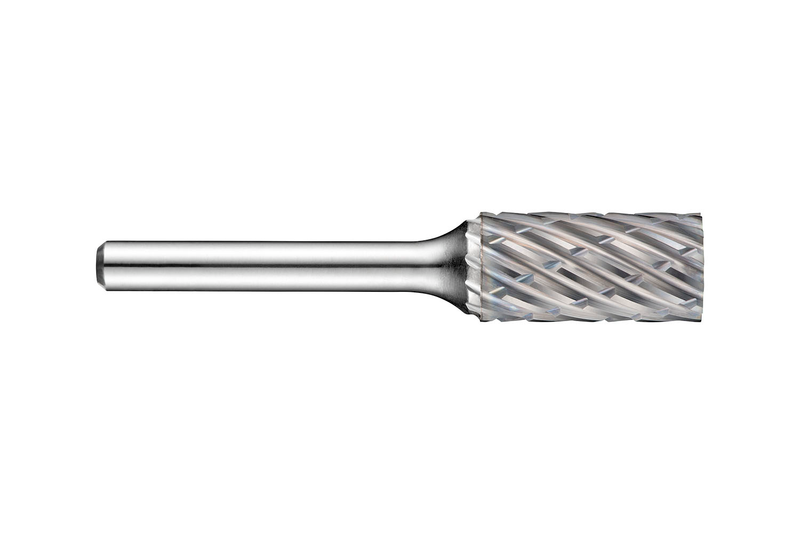

Fraise cylindrique sans coupe en bout (forme A), diamètre de 12,7 mm, longueur de coupe de 25 mm, longueur totale de 70 mm et queue de 6 mm, à pointe en carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure simple taille ST avec brise-copeaux et arêtes moyennement espacées pour l'usinage de surfaces en acier et en acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P70112.7X6.0
GradeLumineux
Product Number7059542
Product FamilyP701

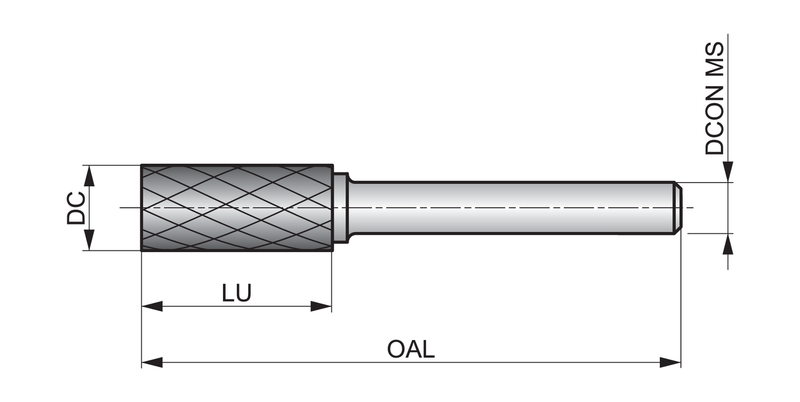

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059542
EAN7320760693186
File Type Download
P70112.7X6.0 — Line Drawing PDF Download
