P70312.7X6.0
P70312.7X6.0
P70312.7X6.0

P70312.7X6.0

UGC DOR7059546
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.97 CAD - $46.97 CAD
$46.97 CAD
$46.97 CAD - $46.97 CAD
$46.97 CAD

Vendu en lots de : 1

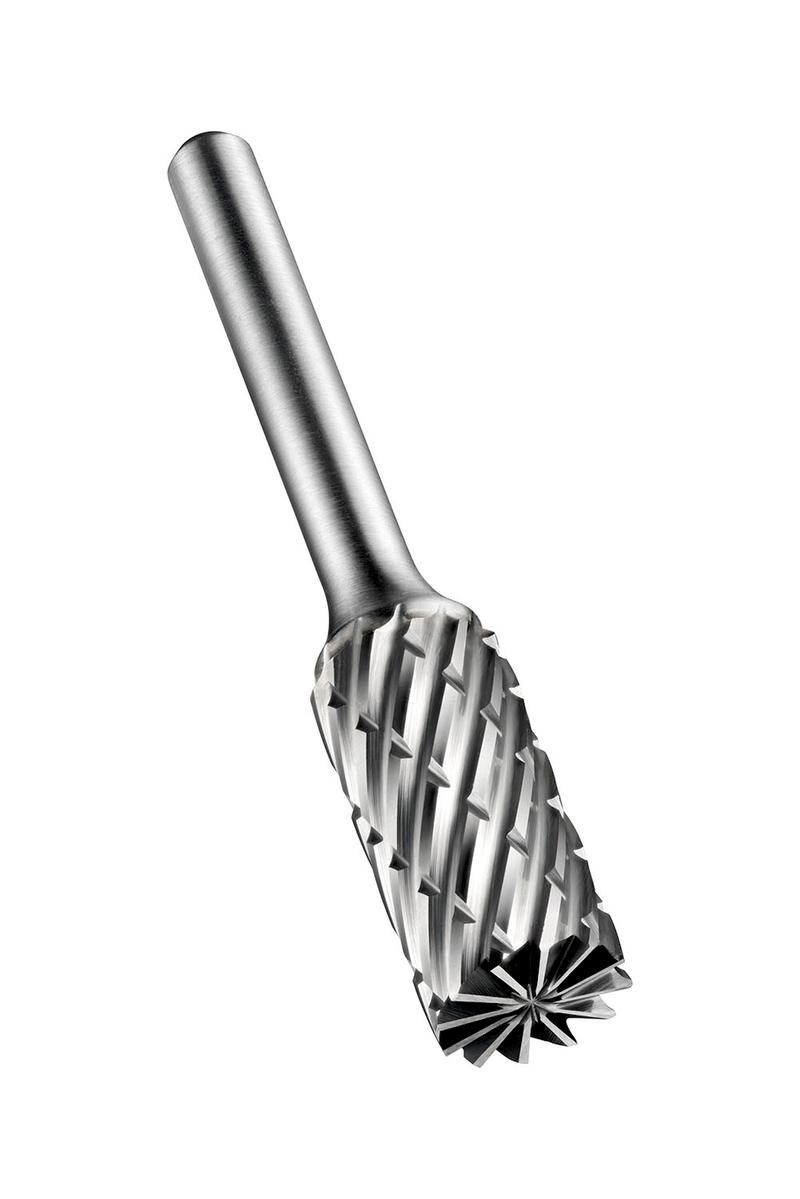

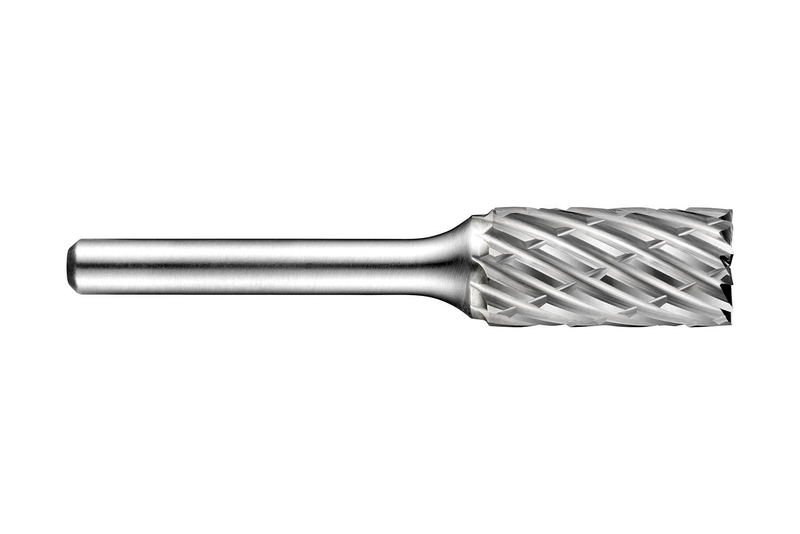

Fraise cylindrique avec coupe frontale (forme B), diamètre 12,7 mm avec longueur de coupe de 25 mm, longueur totale de 70 mm et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, à denture unique ST avec brise-copeaux et arêtes espacées moyennes pour l'usinage de surfaces et d'angles droits dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P70312.7X6.0
GradeLumineux
Product Number7059546
Product FamilyP703
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059546
EAN7320760693223
File Type Download
P70312.7X6.0 — Line Drawing PDF Download
