P70512.7X6.0
P70512.7X6.0
P70512.7X6.0

P70512.7X6.0

UGC DOR7059550
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.00 CAD - $48.00 CAD
$48.00 CAD
$48.00 CAD - $48.00 CAD
$48.00 CAD

Vendu en lots de : 1

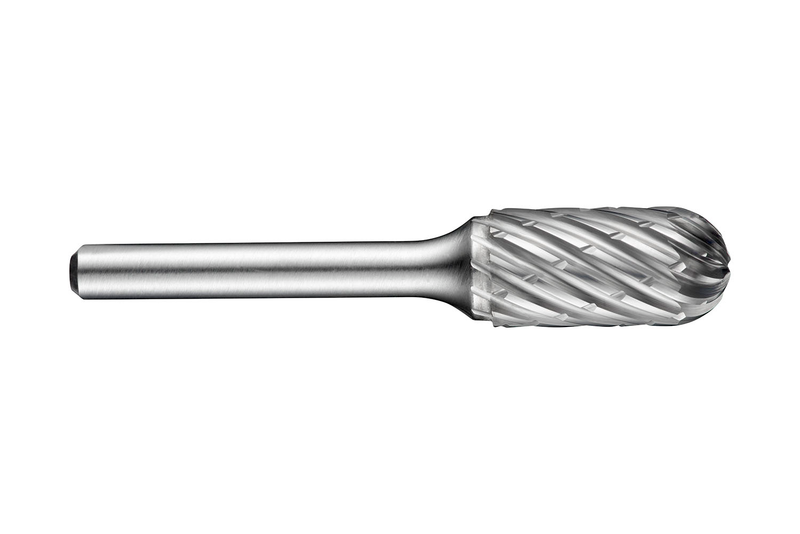

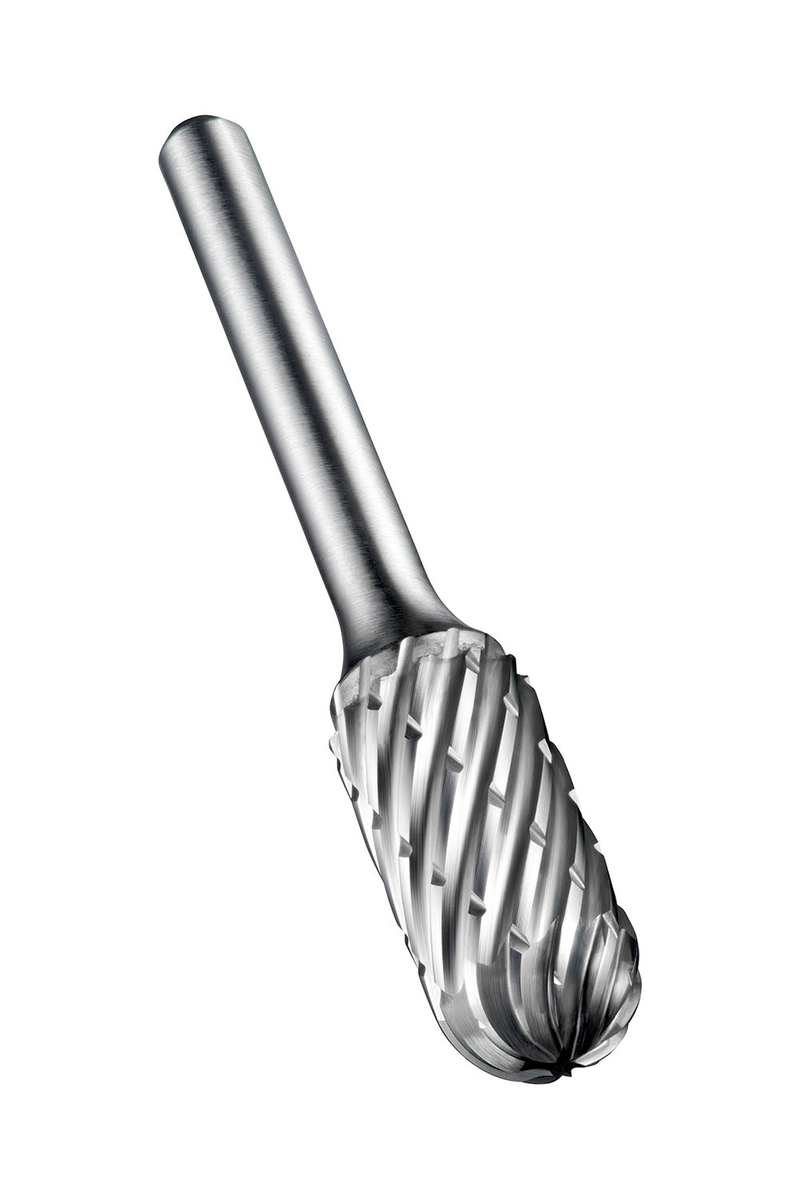

Fraise-lime cylindrique à nez sphérique (forme C), diamètre 12,7mm avec une longueur de coupe de 25mm, longueur totale de 70mm et queue de 6mm, à pointe carbure avec une queue en acier trempé et revenu et finition brillante, style de cannelure simple taille ST avec brise-copeaux et arêtes moyennement espacées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P70512.7X6.0
GradeLumineux
Product Number7059550
Product FamilyP705

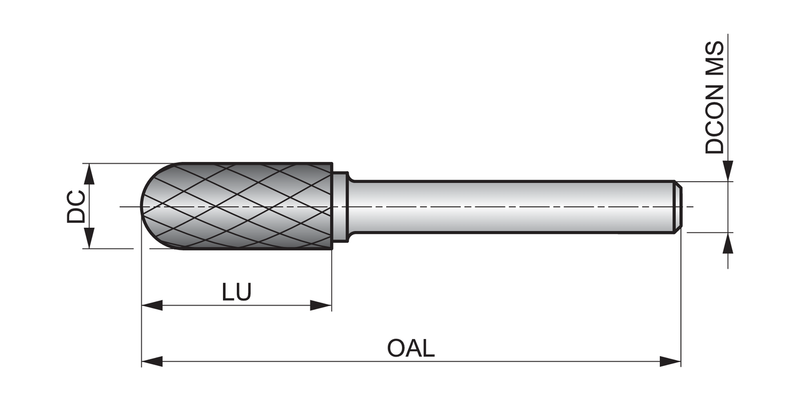

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059550
EAN7320760693261
File Type Download
P70512.7X6.0 — Line Drawing PDF Download
