P7076.0X6.0
P7076.0X6.0
P7076.0X6.0

P7076.0X6.0

UGC DOR7059551
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.83 CAD - $20.83 CAD
$20.83 CAD
$20.83 CAD - $20.83 CAD
$20.83 CAD

Vendu en lots de : 1

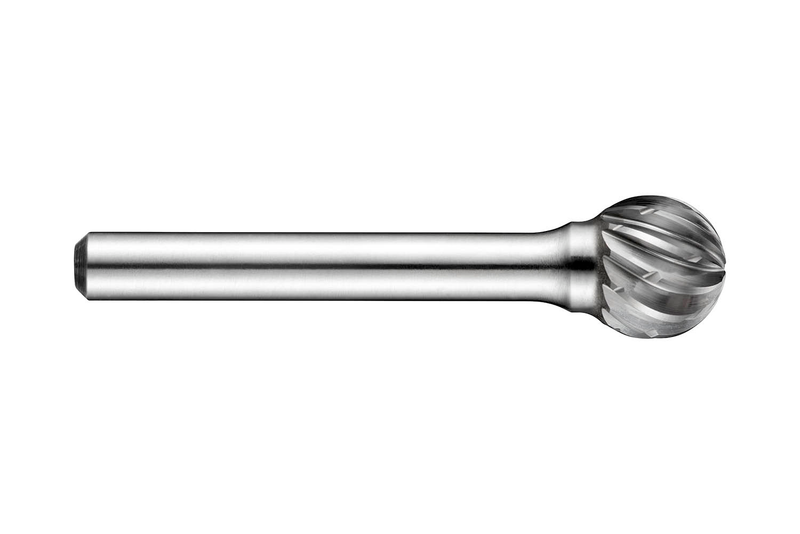

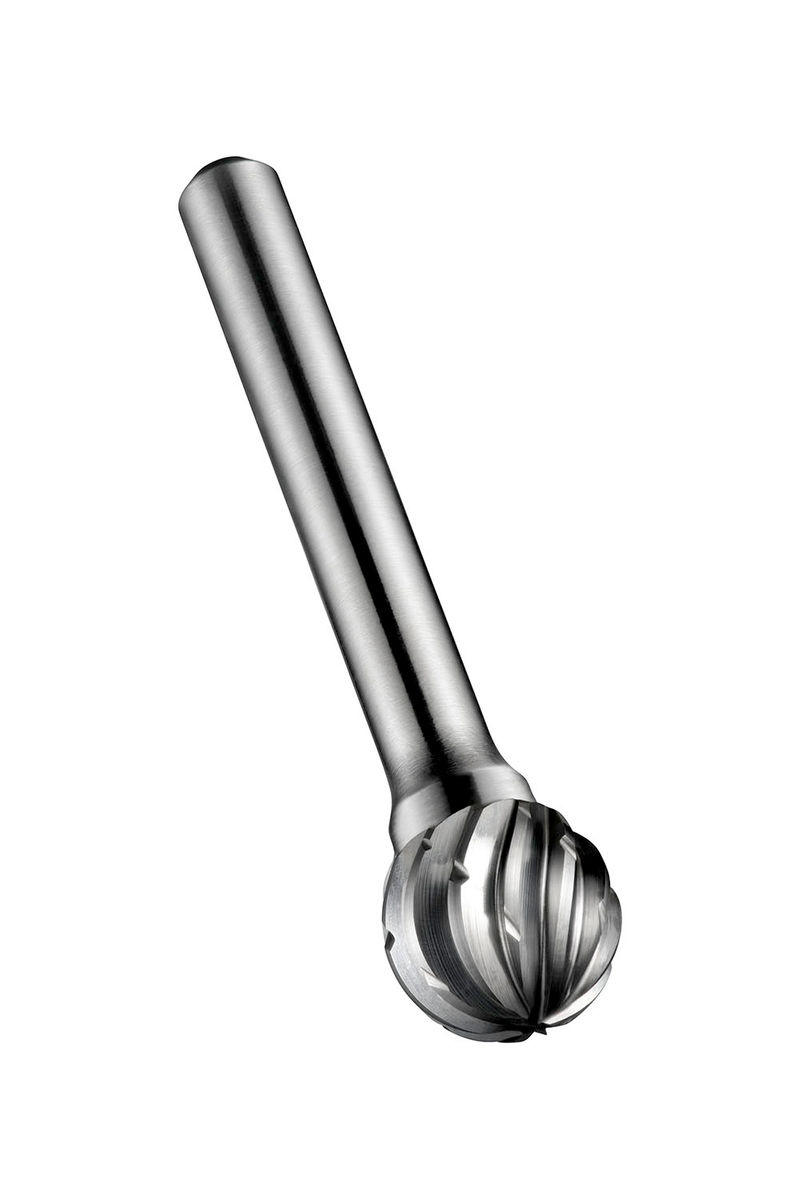

Fraise boule (forme D), diamètre 6mm avec longueur de coupe de 4,7mm, longueur totale de 50mm et queue de 6mm, carbure monobloc avec finition brillante, style de cannelure simple taille ST avec brise-copeaux et arêtes espacées moyennement pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P7076.0X6.0
GradeLumineux
Product Number7059551
Product FamilyP707
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)4.7 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059551
EAN7320760693278
File Type Download

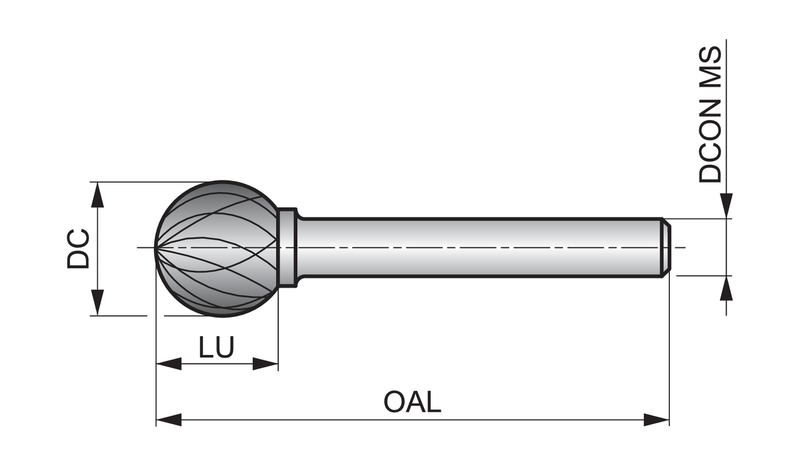

P7076.0X6.0 — Line Drawing PDF Download
