P71112.7X6.0
P71112.7X6.0
P71112.7X6.0

P71112.7X6.0

UGC DOR7059559
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.06 CAD - $44.06 CAD
$44.06 CAD
$44.06 CAD - $44.06 CAD
$44.06 CAD

Vendu en lots de : 1

Fraise-lime rotative à bout arrondi (forme F), diamètre de 12,7 mm avec une longueur de coupe de 25 mm, longueur totale de 70 mm et queue de 6 mm, pointe en carbure avec queue en acier trempé et durci et finition brillante, style de cannelure à coupe unique ST avec brise-copeaux et bords moyennement espacés pour le contournage multi-angle, l'arrondi des bords et la coupe dans des zones difficiles d'accès dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI)P71112,7X6,0
Product Name (ISO)P71112.7X6.0
GradeLumineux
Product Number7059559
Product FamilyP711
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059559
EAN7320760693353
File Type Download

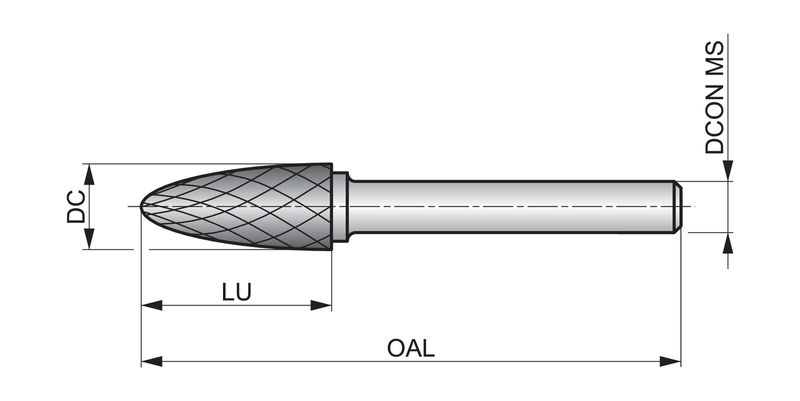

P71112.7X6.0 — Line Drawing PDF Download
